How Resilient Are Kolmogorov-Arnold Networks in Classification Tasks? A Robustness Investigation

Abstract

Kolmogorov-Arnold Networks (KANs) are a novel class of neural network architectures based on the Kolmogorov-Arnold representation theorem, demonstrated potential advantages in accuracy and interpretability over Multi-Layer Perceptron (MLP) models. This paper comprehensively evaluates the robustness of various KAN architectures—including KAN, KAN-Mixer, KANConv_KAN, and KANConv_MLP—against adversarial attacks, a critical aspect that has been underexplored in current research. We compare these models with MLP-based architectures such as MLP, MLP-Mixer, and ConvNet-MLP across three traffic sign classification datasets: GTSRB, BTSD, and CTSD. The models were subjected to a range of adversarial attacks (FGSM, PGD, C&W, and BIM) with varying perturbation levels epsilon=0.01,0.1,1 and were trained under different strategies, including standard training, adversarial training, and Randomized Smoothing. Our experimental results demonstrate that KAN-based models, particularly the KAN-Mixer, exhibit superior robustness to adversarial attacks compared to their MLP counterparts. Specifically, the KAN-Mixer consistently achieved lower Success Attack Rates (SAR) and Degrees of Change (DoC) across most attack types and datasets while maintaining high accuracy on clean data. For instance, under FGSM attacks with epsilon=0.01, the KAN-Mixer outperformed the MLP-Mixer by maintaining higher accuracy and lower SAR. Adversarial training and Randomized Smoothing further enhanced the robustness of KAN-based models, with t-SNE visualizations revealing more stable latent space representations under adversarial perturbations. These findings underscore the potential of KAN architectures to improve neural network security and reliability in adversarial settings. The detailed results and code for all models are available at https://sie-lab-kr.github.io/Is-KAN-Robustness/.

Model Architectures and Evaluation

Model 1: KAN

Description of KAN Model

In contrast, the MLP model is a baseline comparison to the KAN architecture. The MLP consists of two fully connected hidden layers, identical in structure to the KAN model, with 256 units in the first layer and 128 units in the second layer. The activation function used in the MLP is ReLU, which is commonly used for its simplicity and computational efficiency.
These KANLinear layers are key to the model's flexibility. They use grid-based kernels with grid size = 5 and spline order = 3, scaled by 1.0. The grid is dynamically updated within a range of -1 to 1 using a grid eps of 0.02, enhancing adaptability to the data distribution. The activation function used in the KAN model is SiLU, which allows for smoother gradient flow during backpropagation. Regularization is enforced through adaptive B-splines, which helps control overfitting. Following the configuration outlined in Efficient KAN.
Both models' output layers consist of units corresponding to the number of classes in the datasets. For training, we used the AdamW optimizer with a learning rate of 0.001 and a weight decay of 1e-4, training over 100 epochs with a batch size of 64. The cross-entropy loss function was employed to evaluate classification performance.

Dataset Class Distribution

BTSRB Dataset: The BTSD includes a total of 62 classes, categorized into three superclasses: mandatory, prohibitive, and danger classes. The dataset is divided into 4,591 training images and 2,534 test images, providing variety in sign appearances to assess model robustness, depicted in Figure.

View Full Image

CTSRB Dataset: China's CTSD comprises 6,164 images in 58 categories, with 4,170 training images and 1,994 test images, offering a well-annotated dataset frequently used in traffic sign recognition research, illustrated in Figure.

View Full Image

GTSRB Dataset: The GTSRB dataset, widely used to benchmark traffic sign classification models, contains 43 classes with 39,209 training images and 12,630 test images, offering a diverse representation of German traffic signs, as shown in Figure.

View Full Image

Attack Methods on KAN Model

FGSM Attack Results on KAN Model and BTSRB

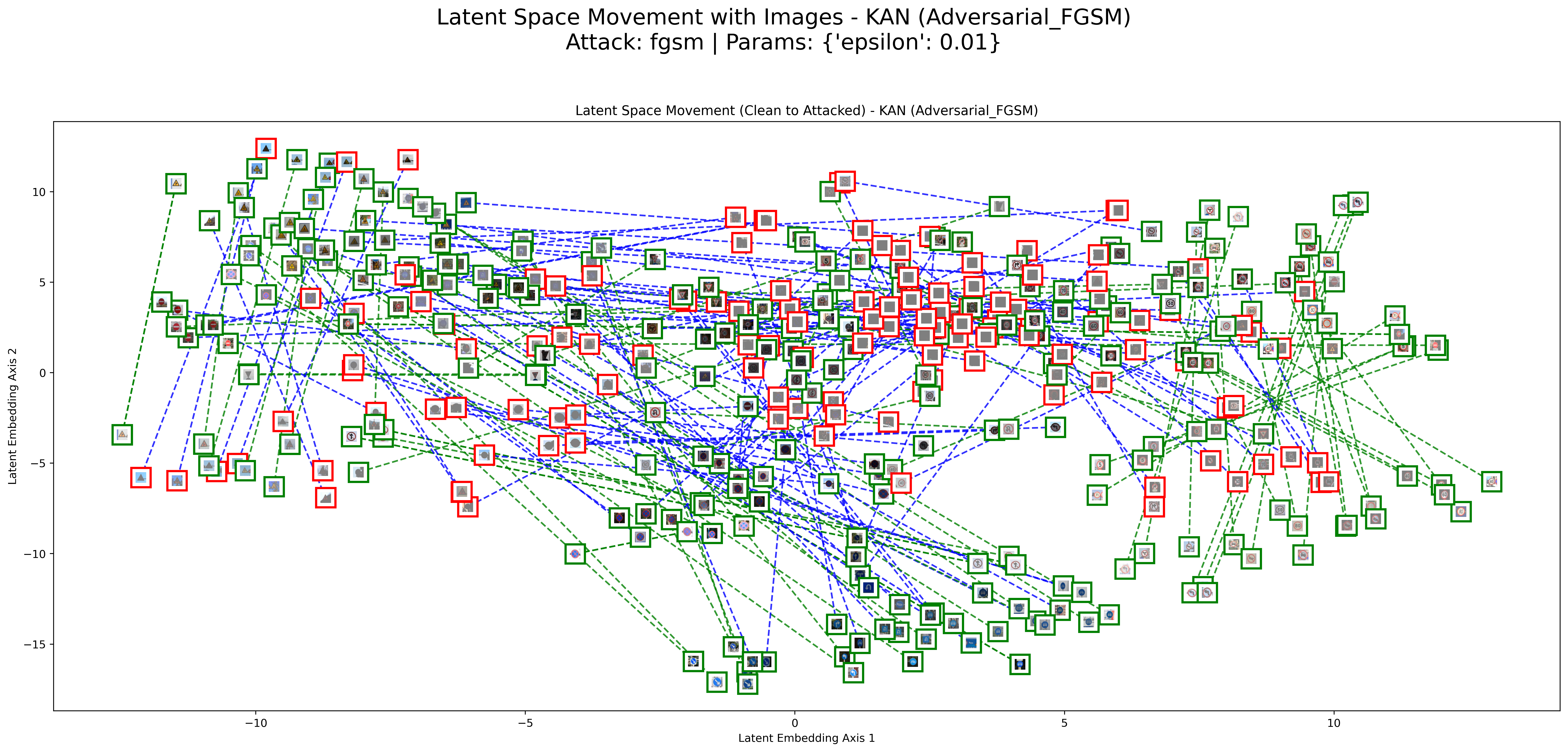

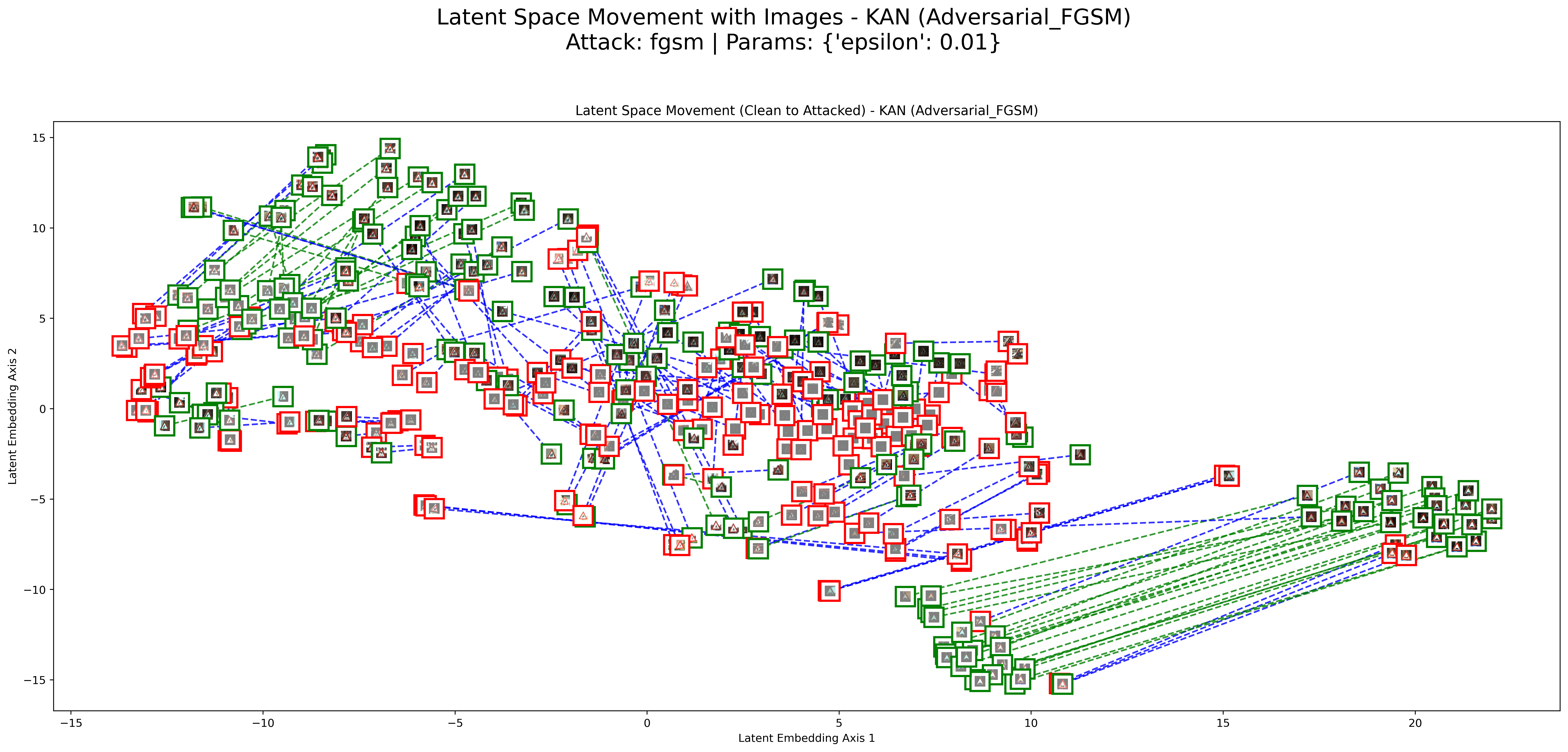

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

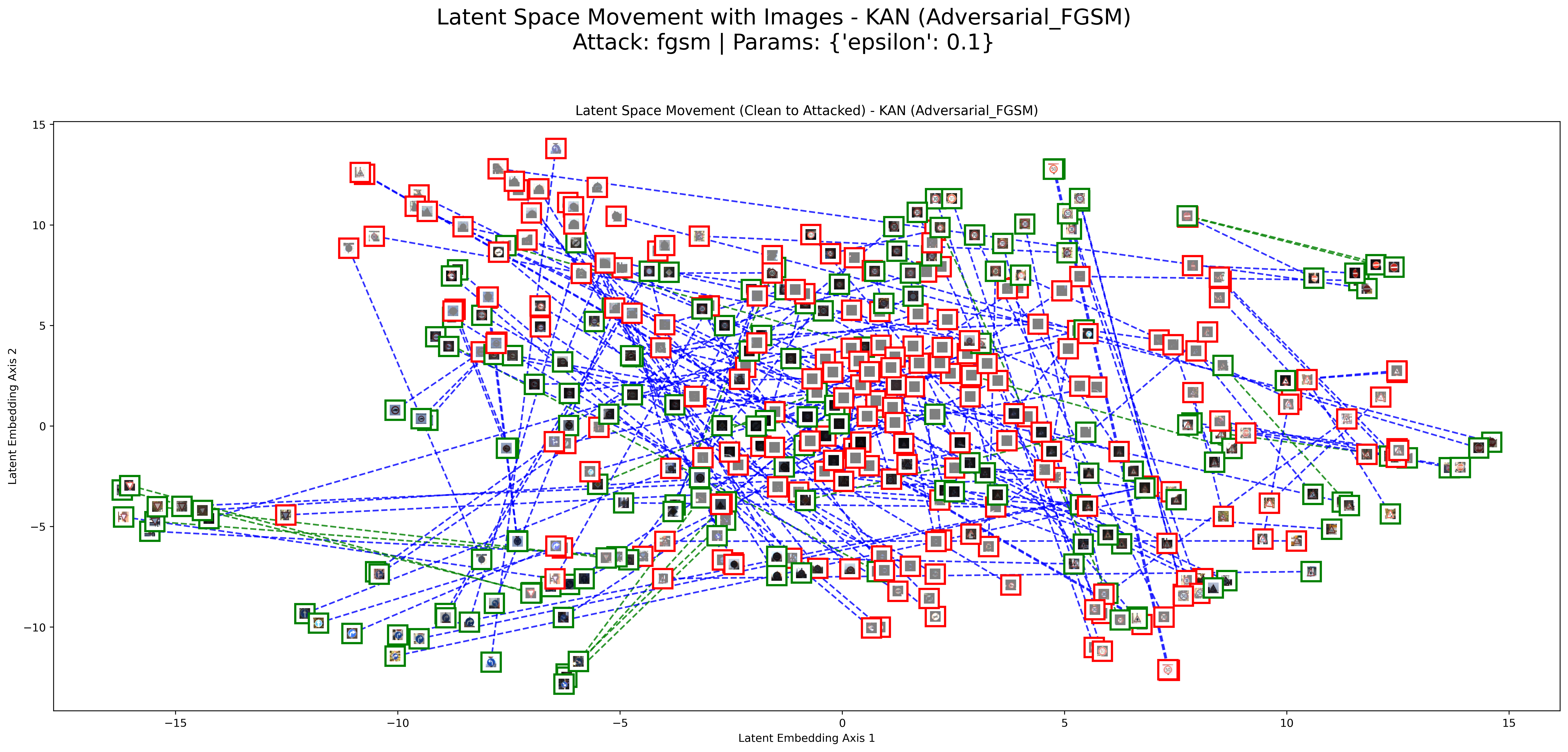

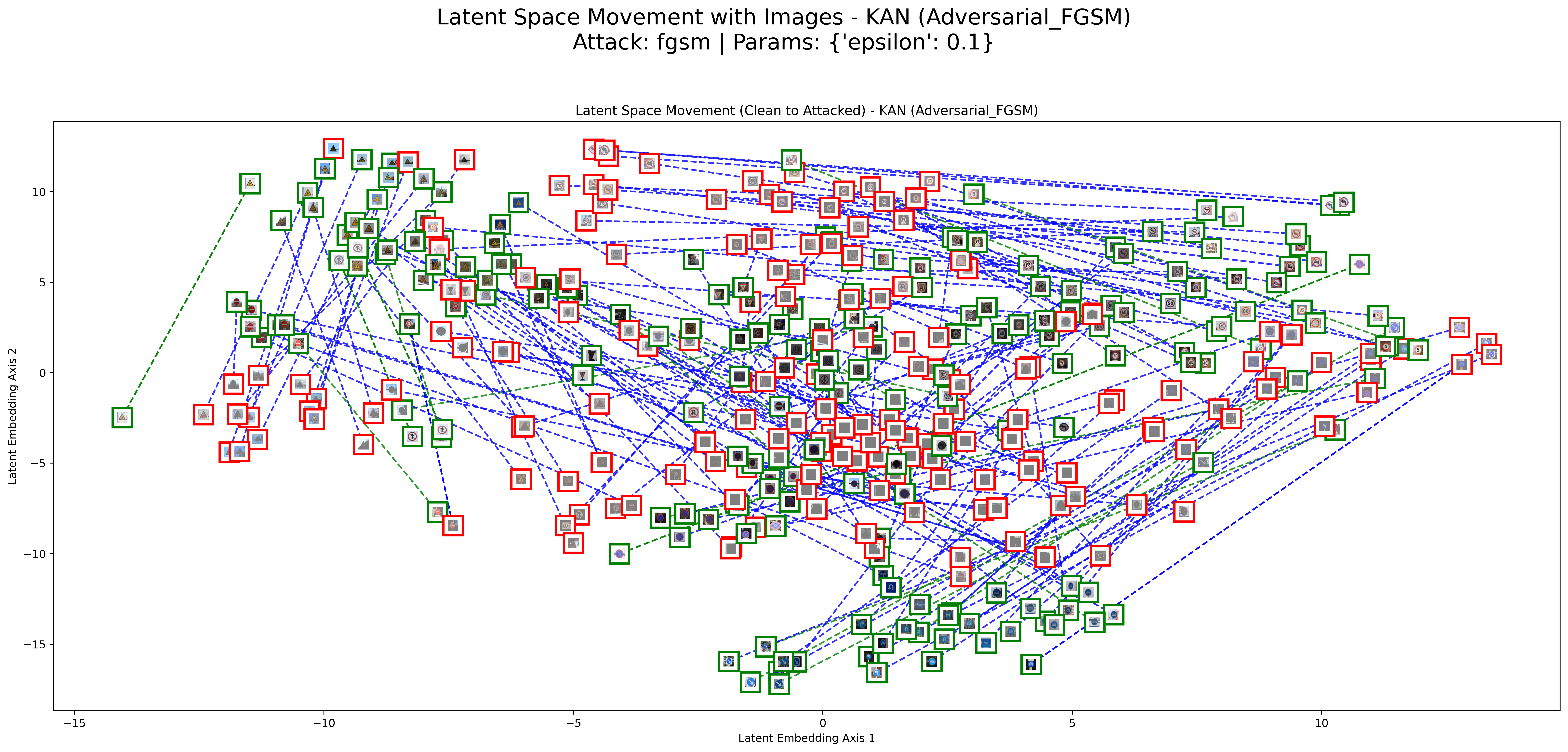

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

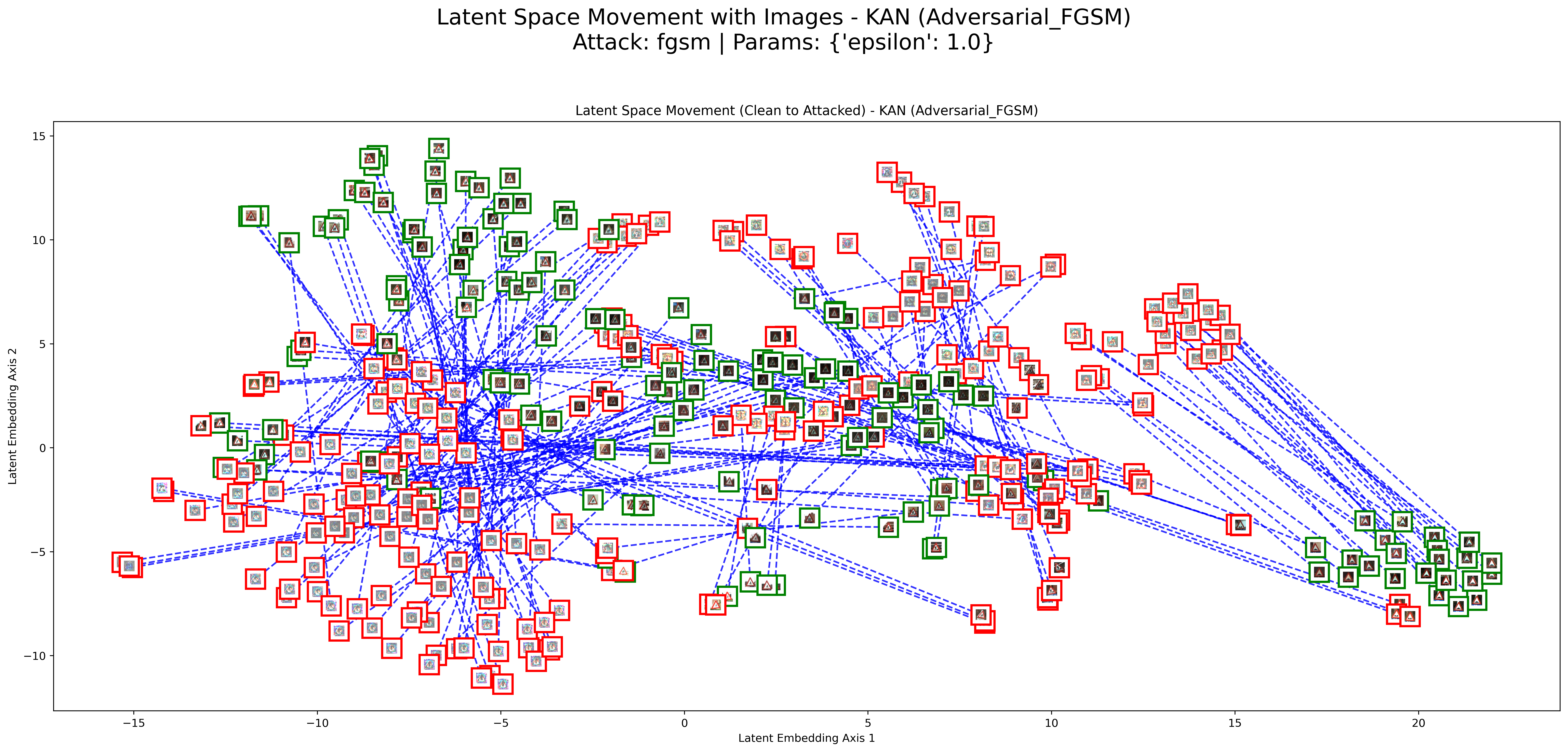

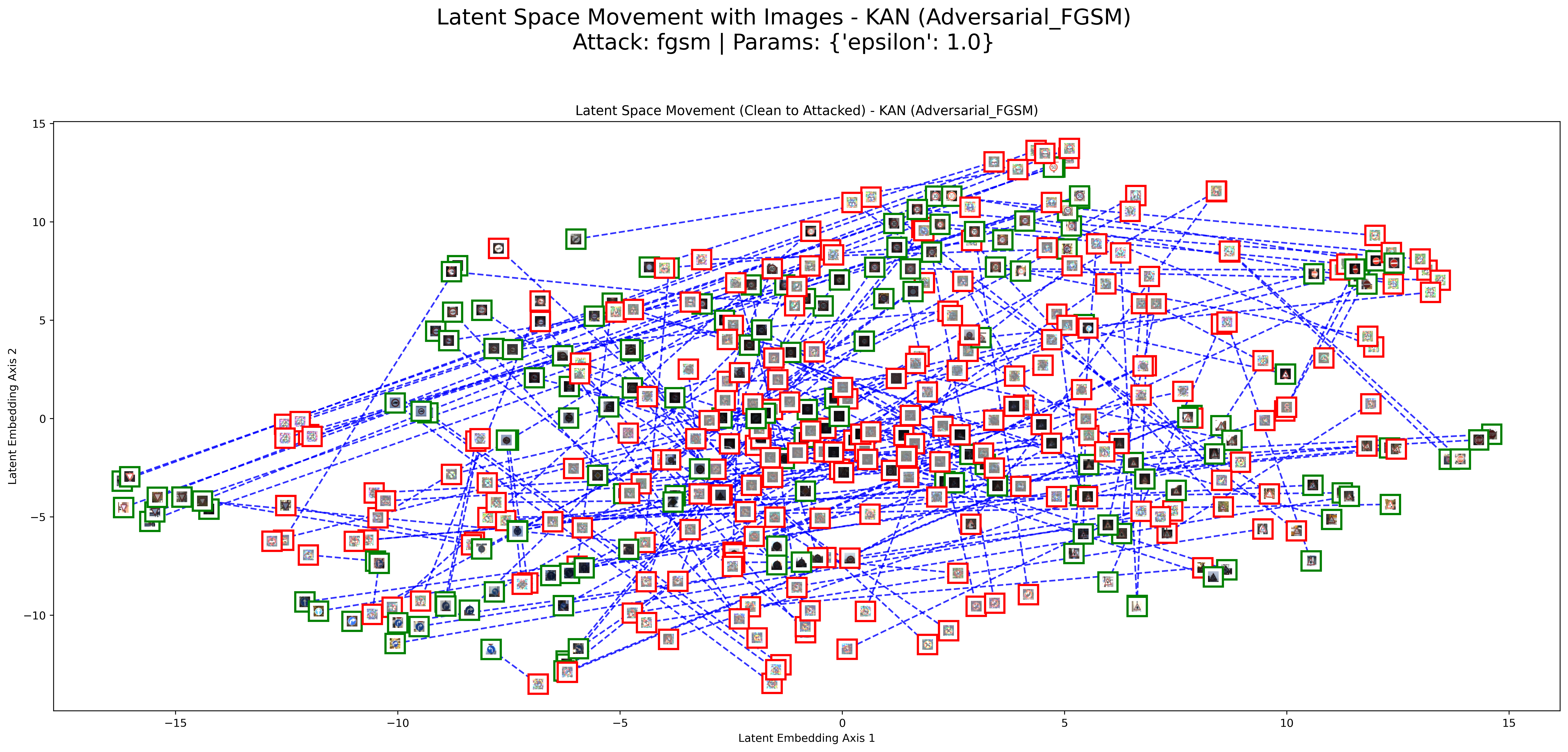

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

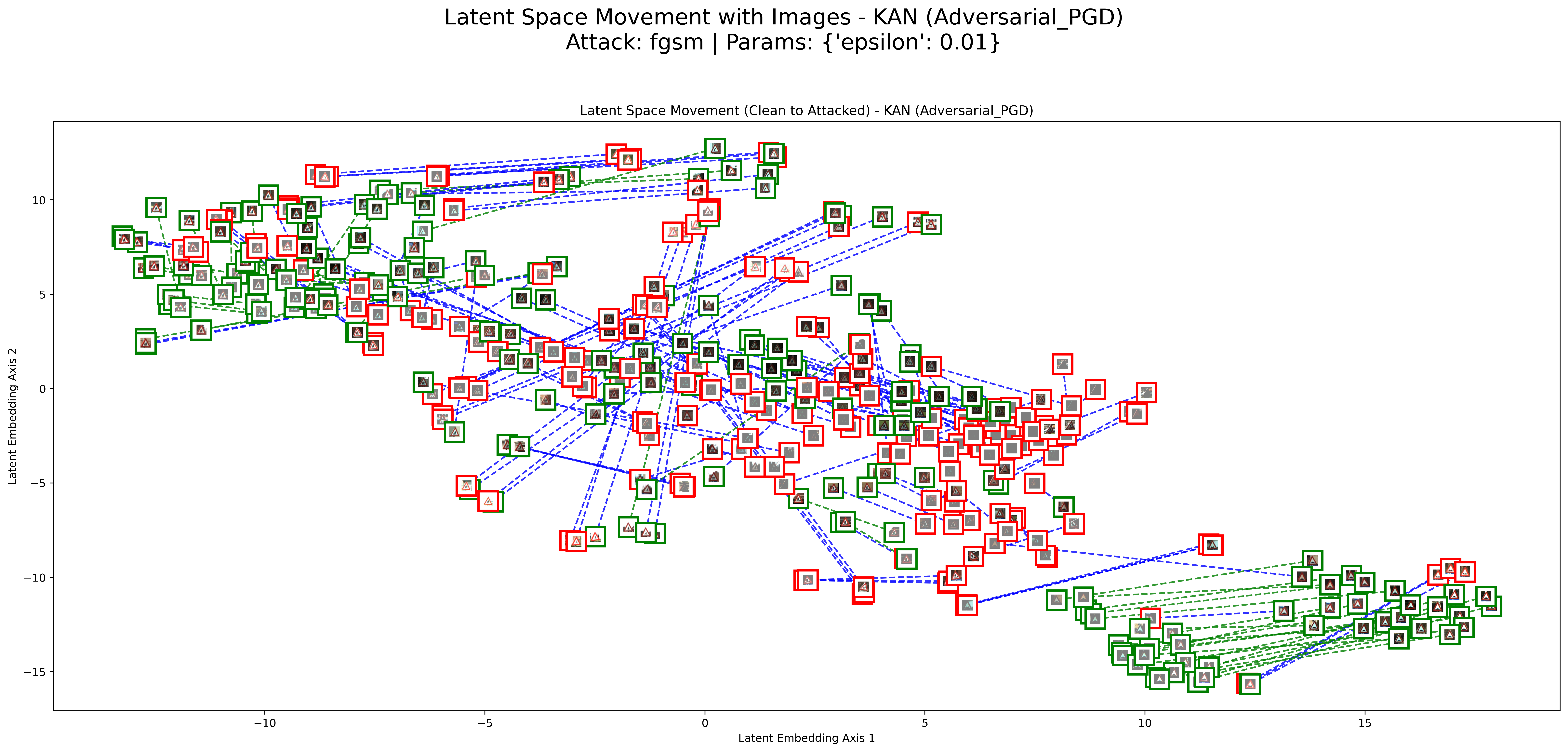

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

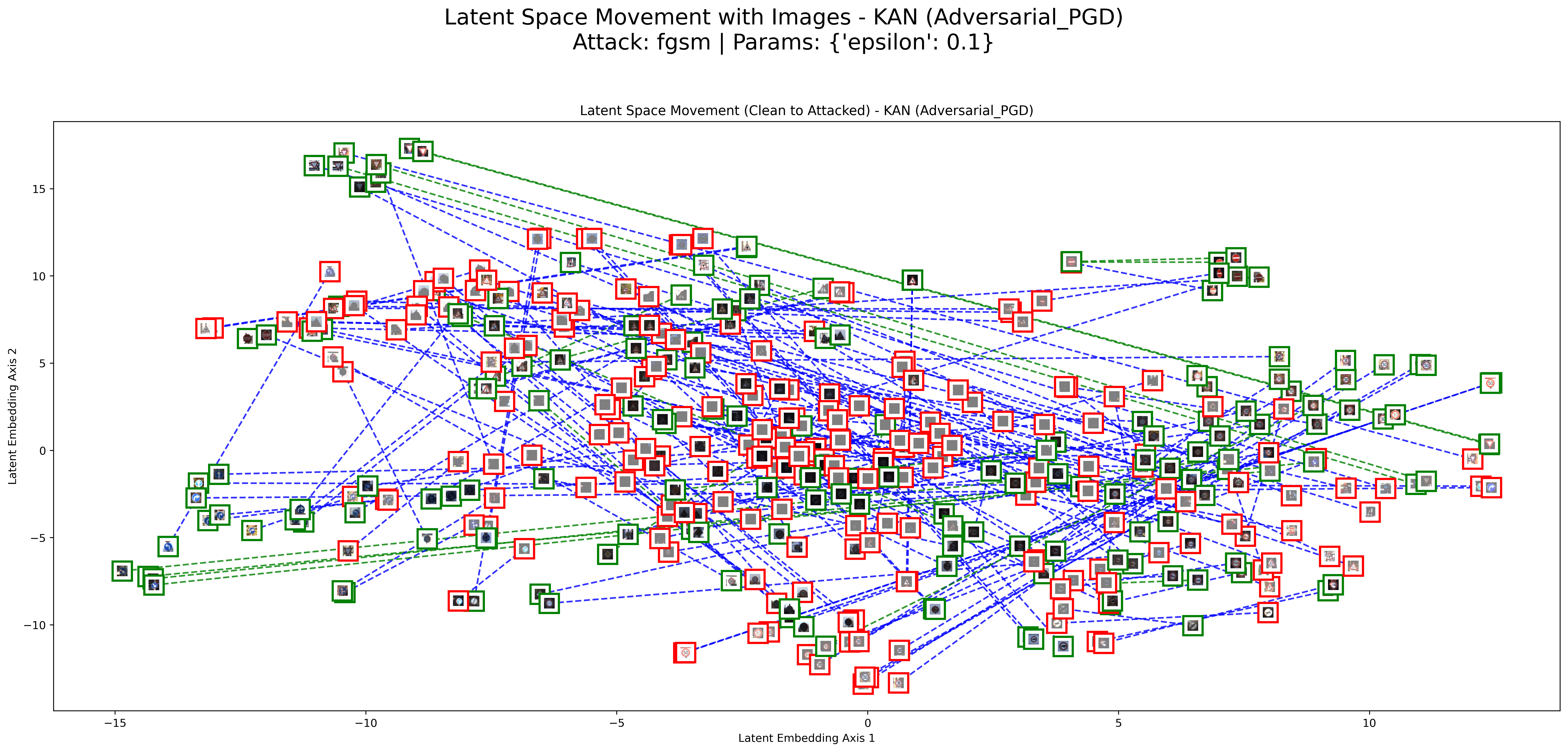

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

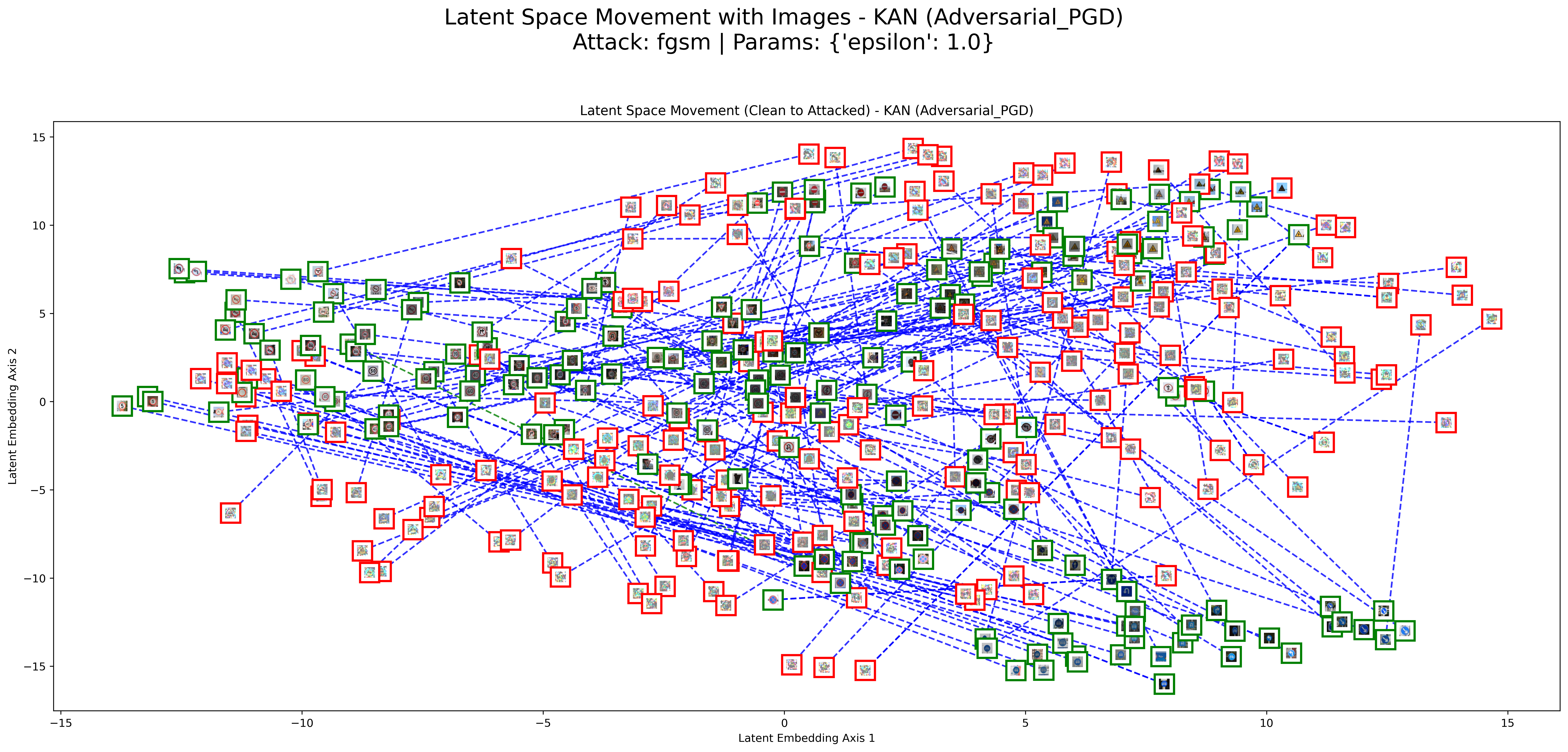

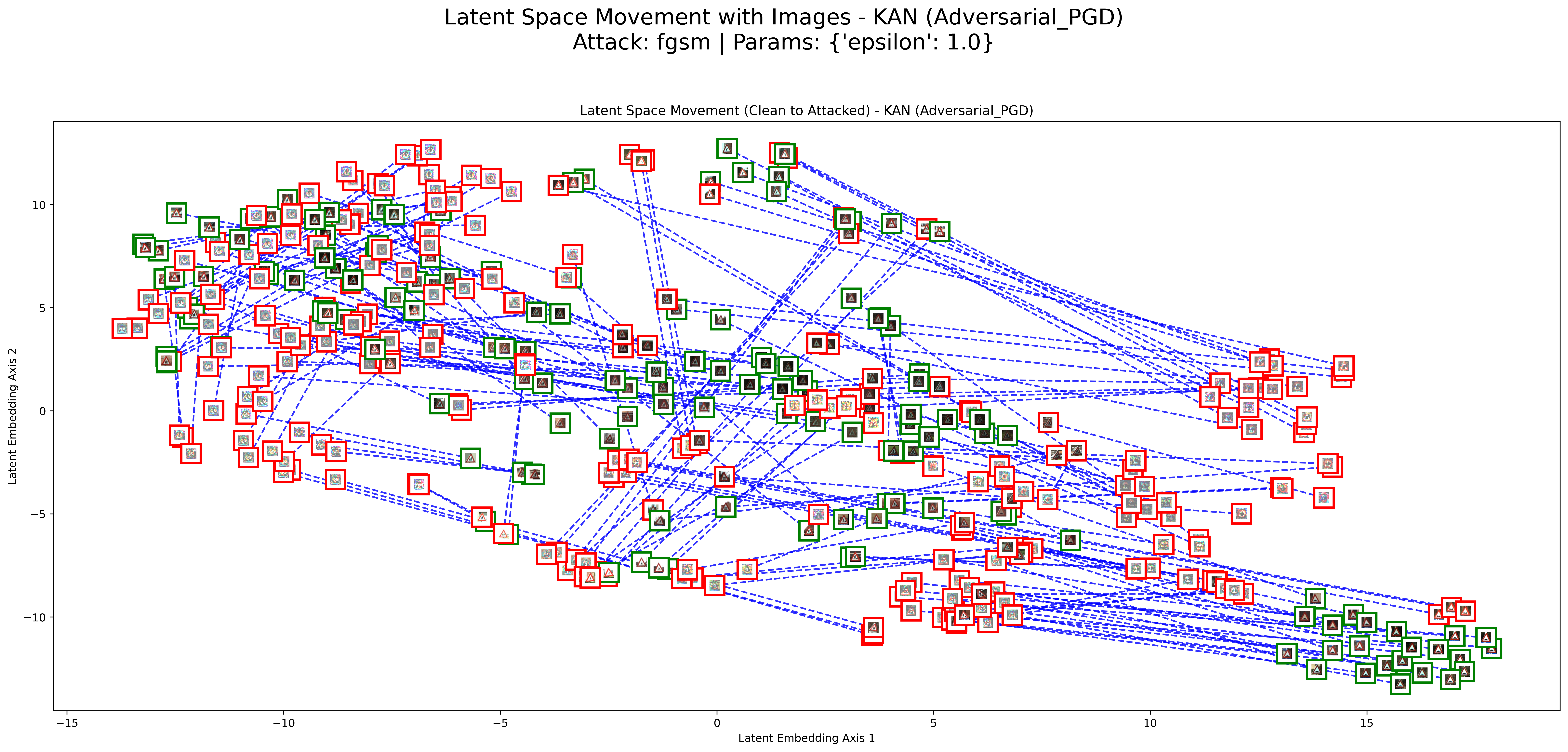

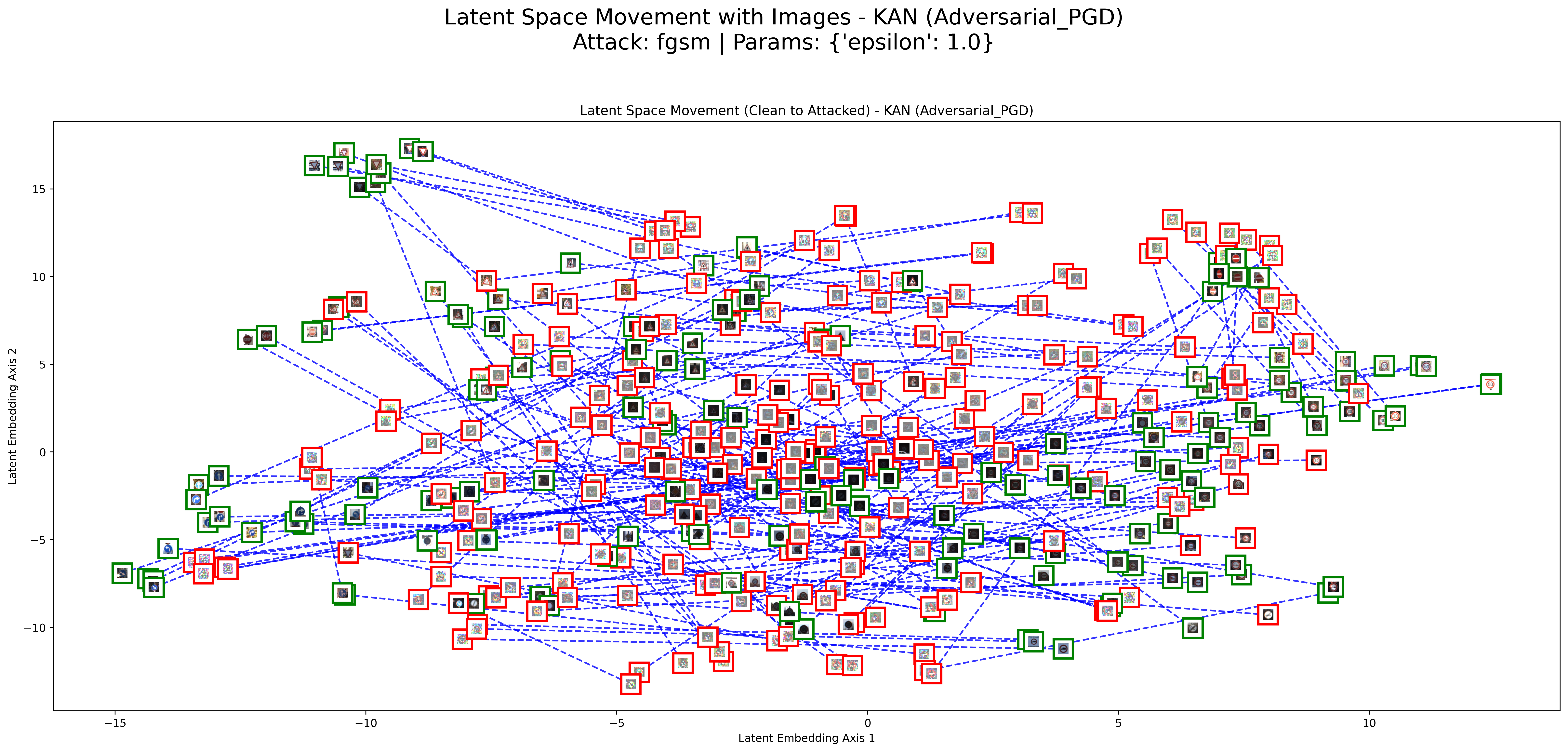

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

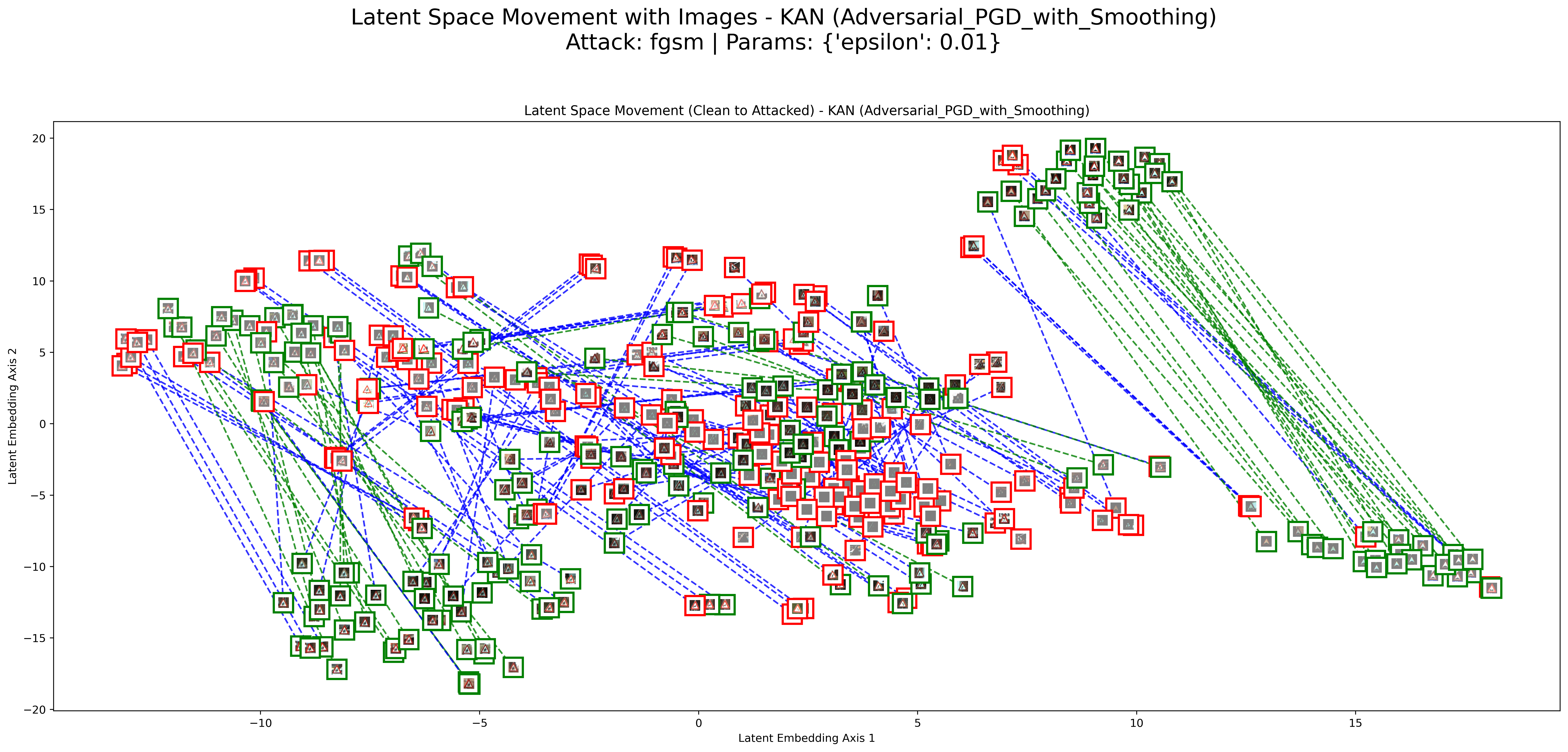

Title: PGD_WITH_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

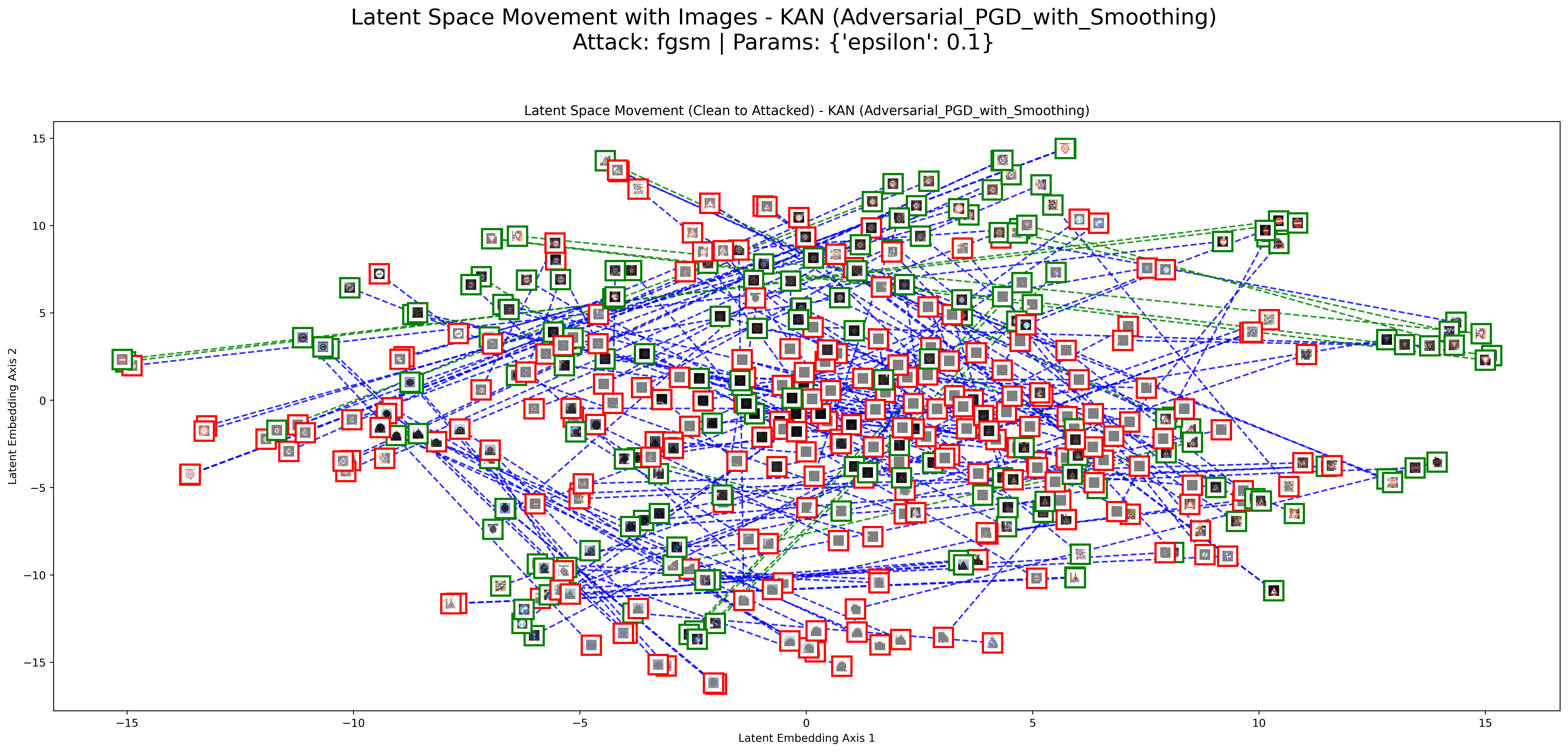

Title: PGD_WITH_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

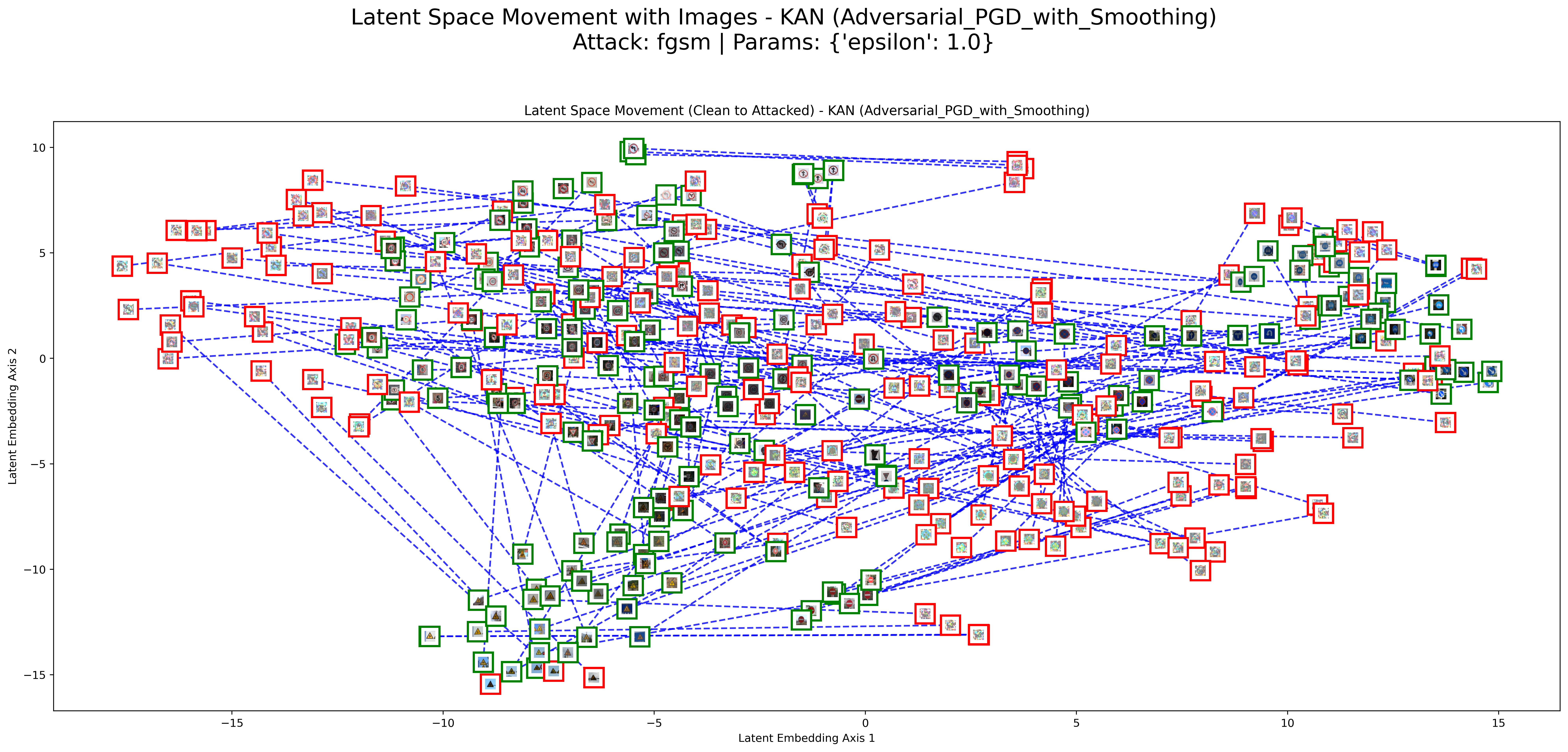

Title: PGD_WITH_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

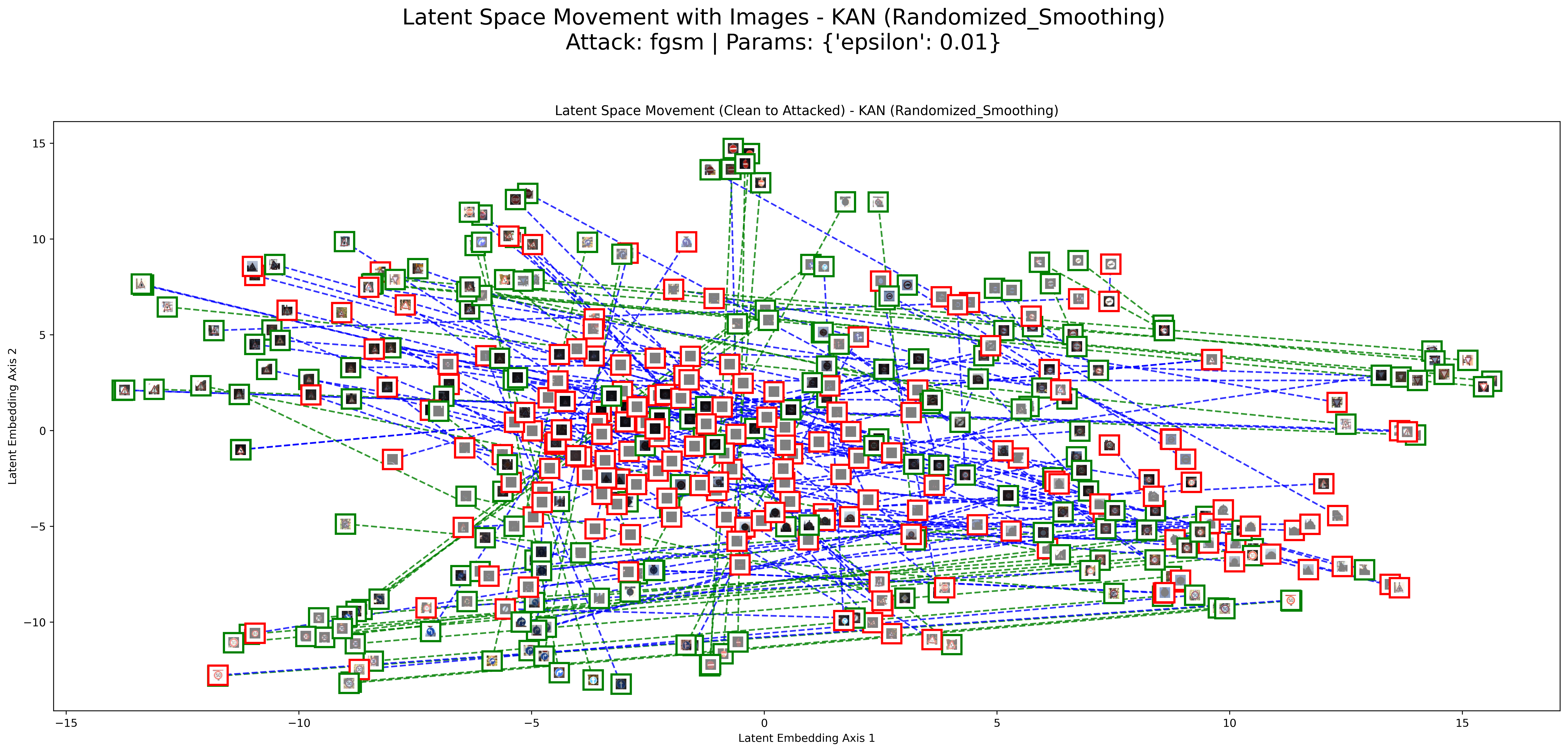

Title: RANDOMIZED_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

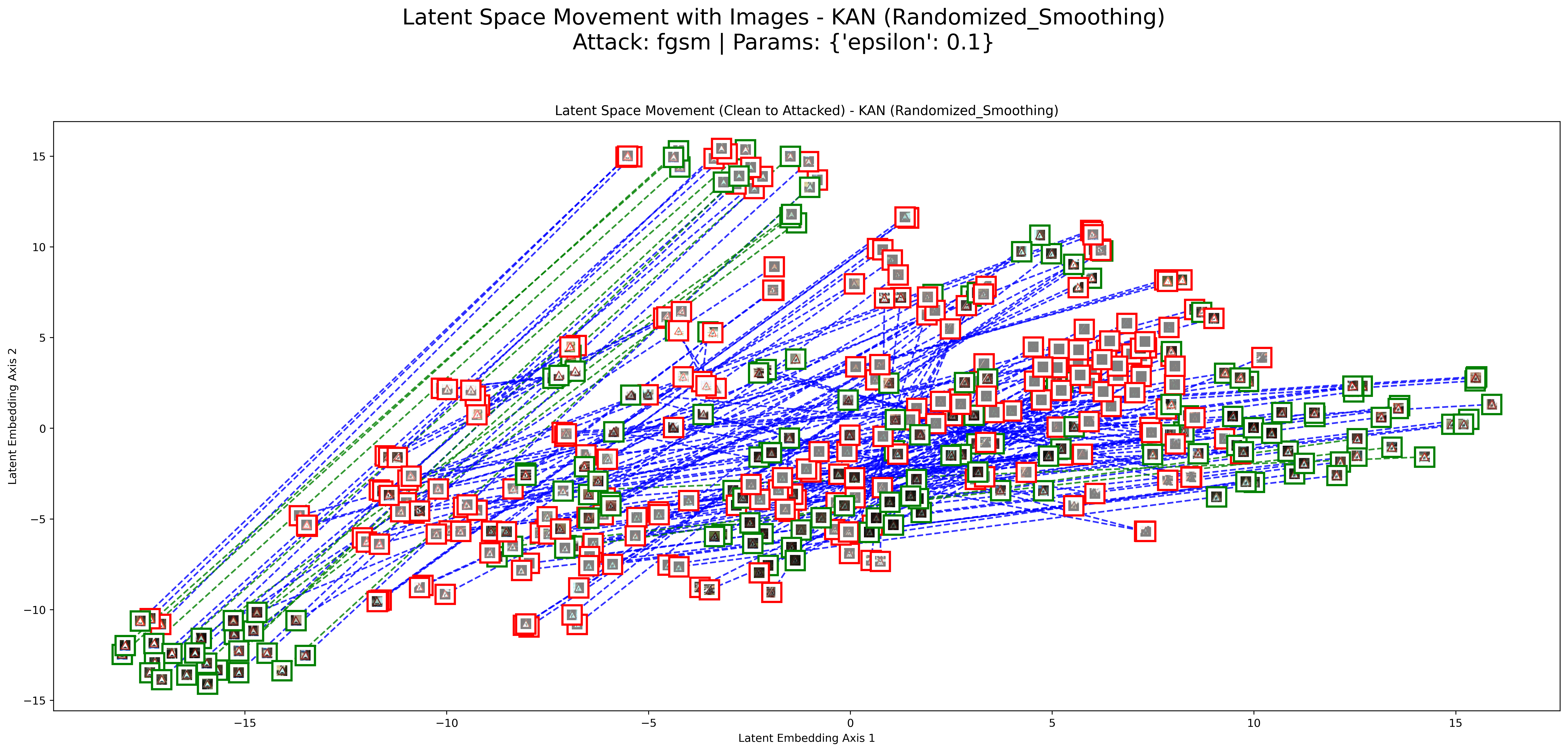

Title: RANDOMIZED_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

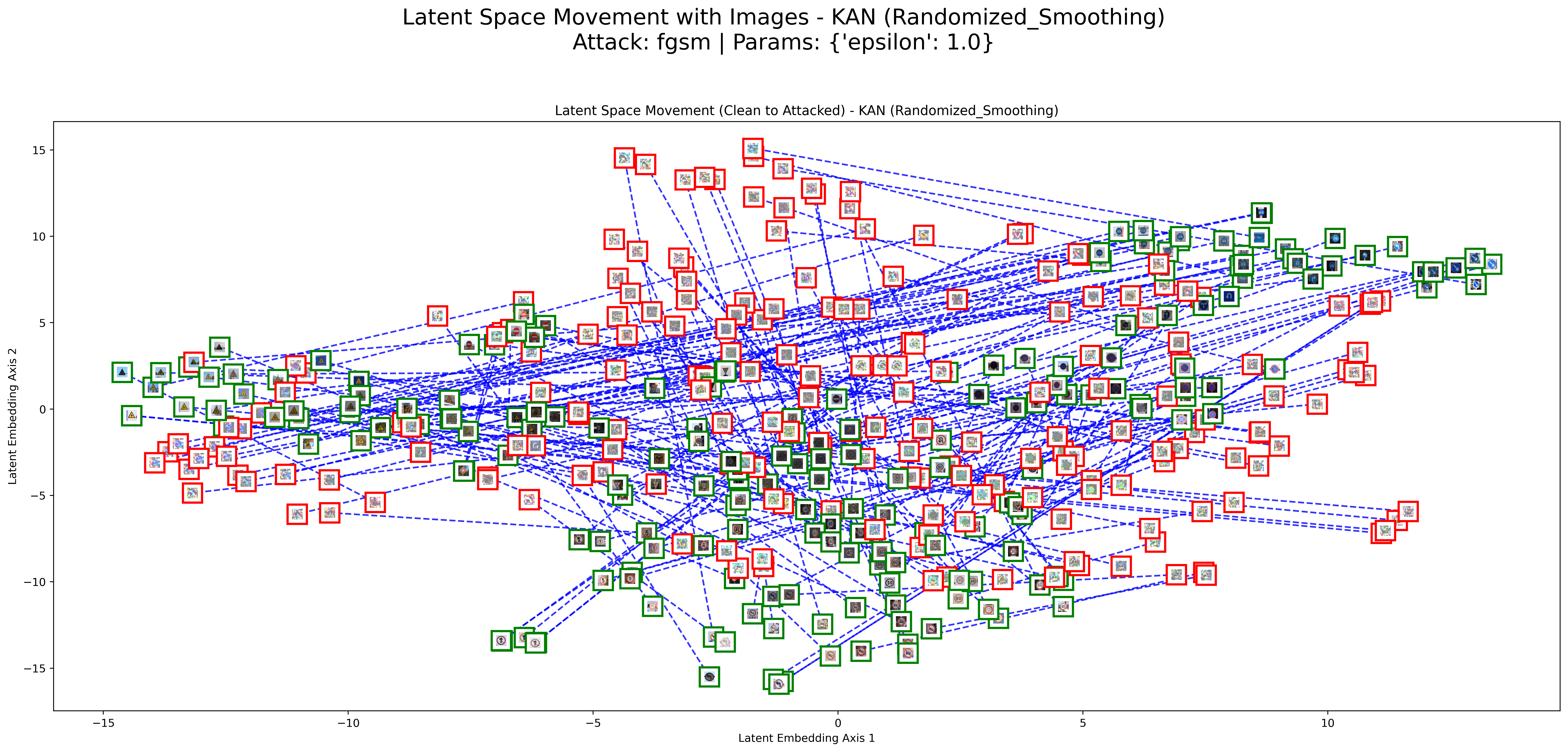

Title: RANDOMIZED_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: KAN Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: KAN Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

p>Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: KAN Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

p>Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

FGSM Attack Results on KAN Model and CTSRB

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

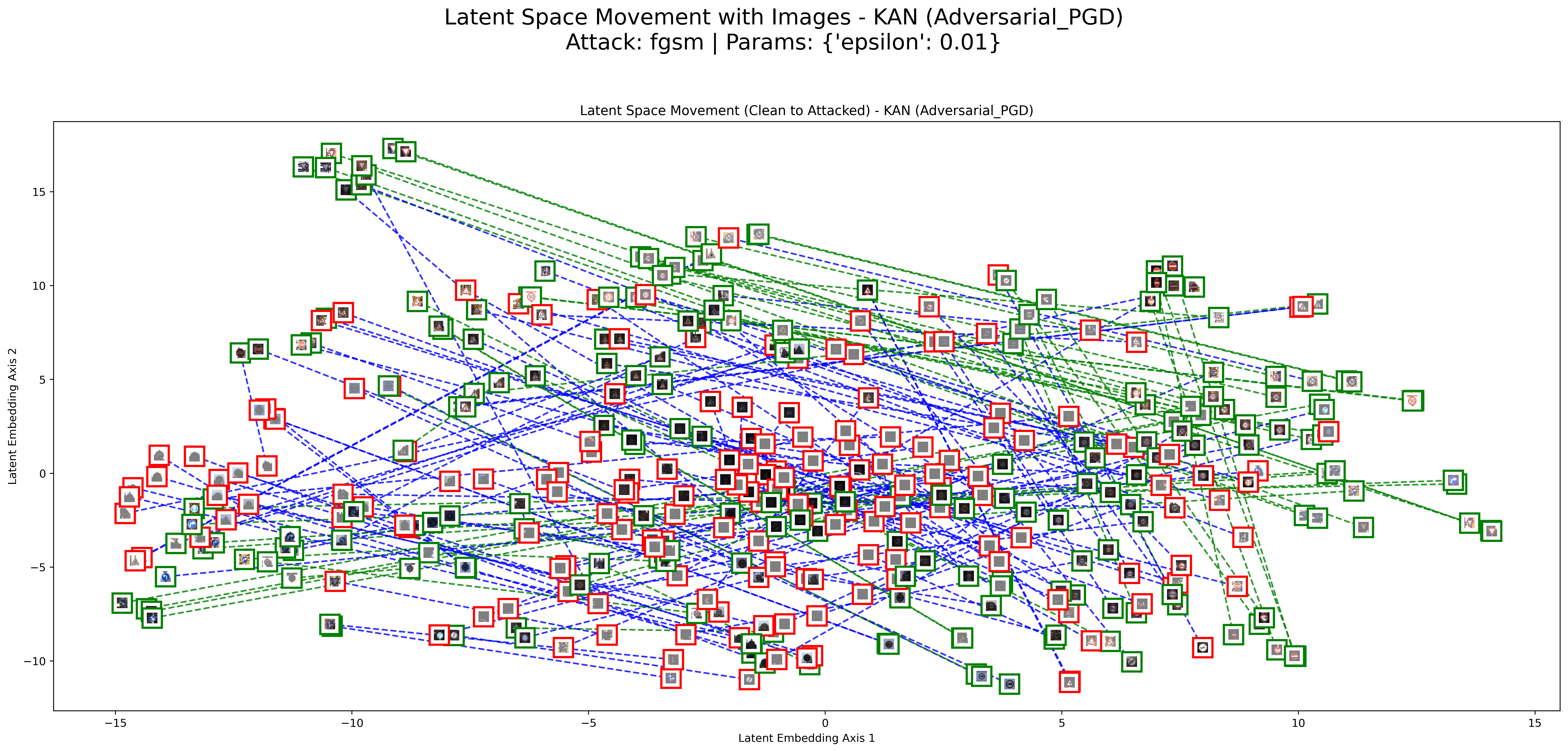

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

FGSM Attack Results on KAN Model and GTSRB

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the KAN model's output when attack under FGSM with epsilon = 1.0.

View Full Image

FGSM Attack Results on MLP Model and BTSRB

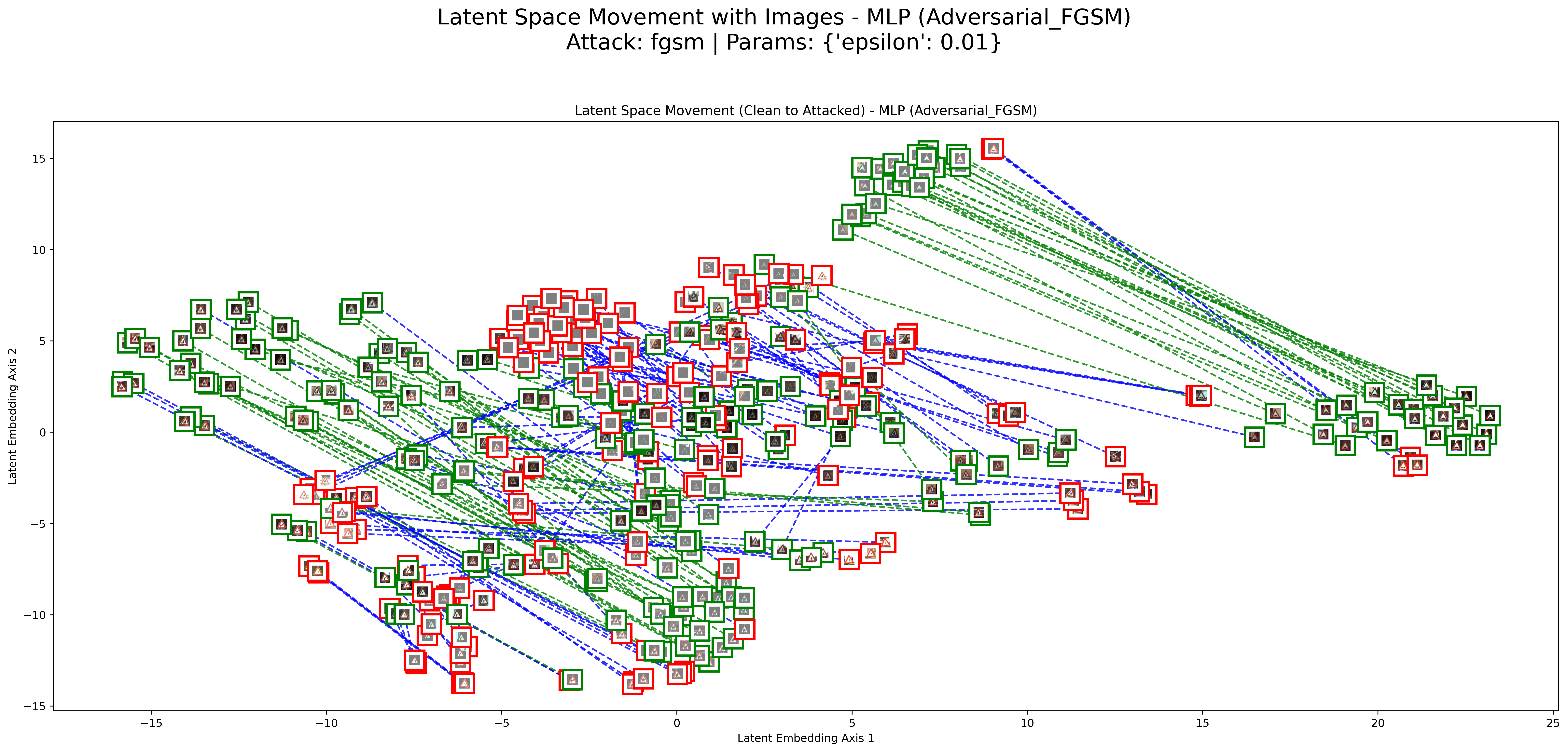

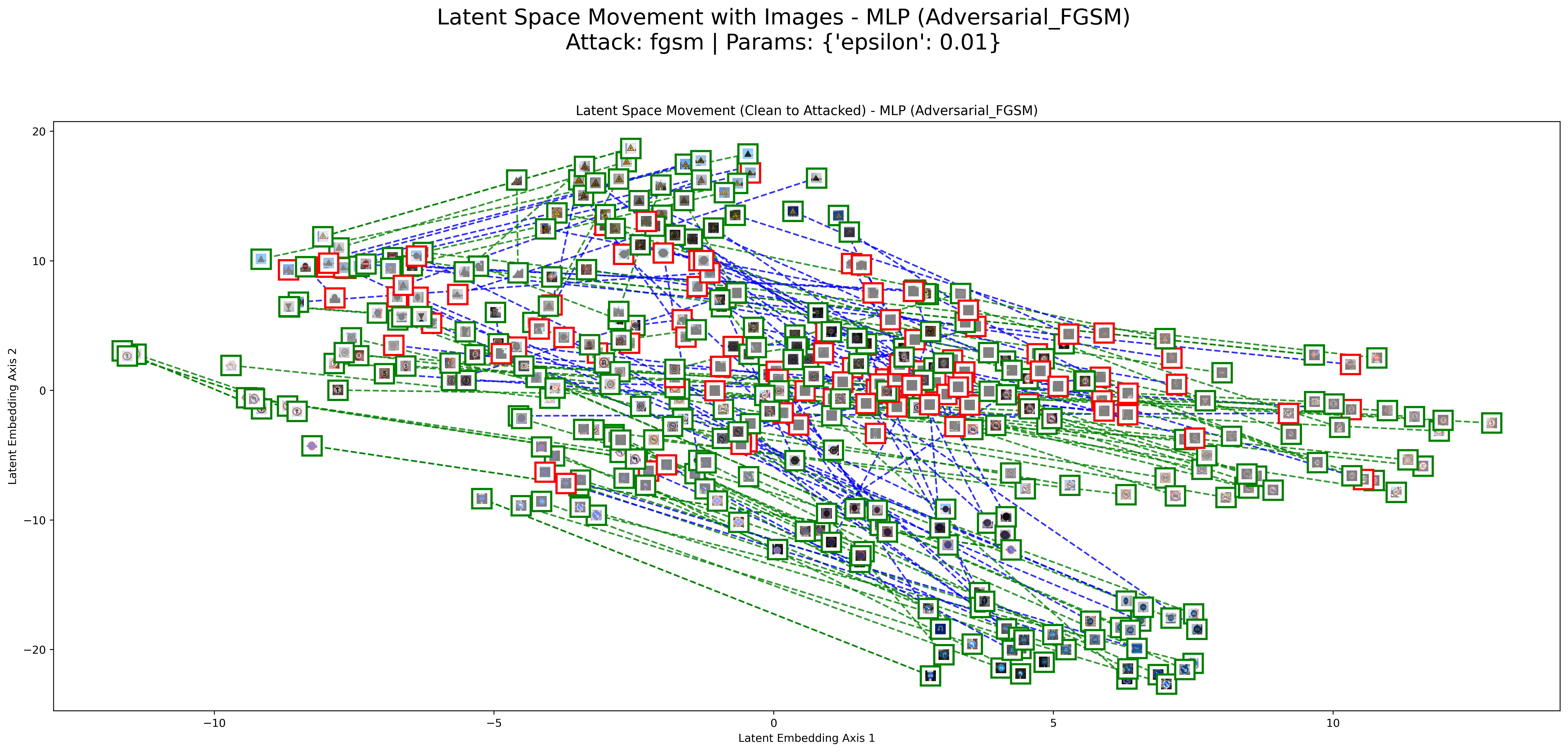

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

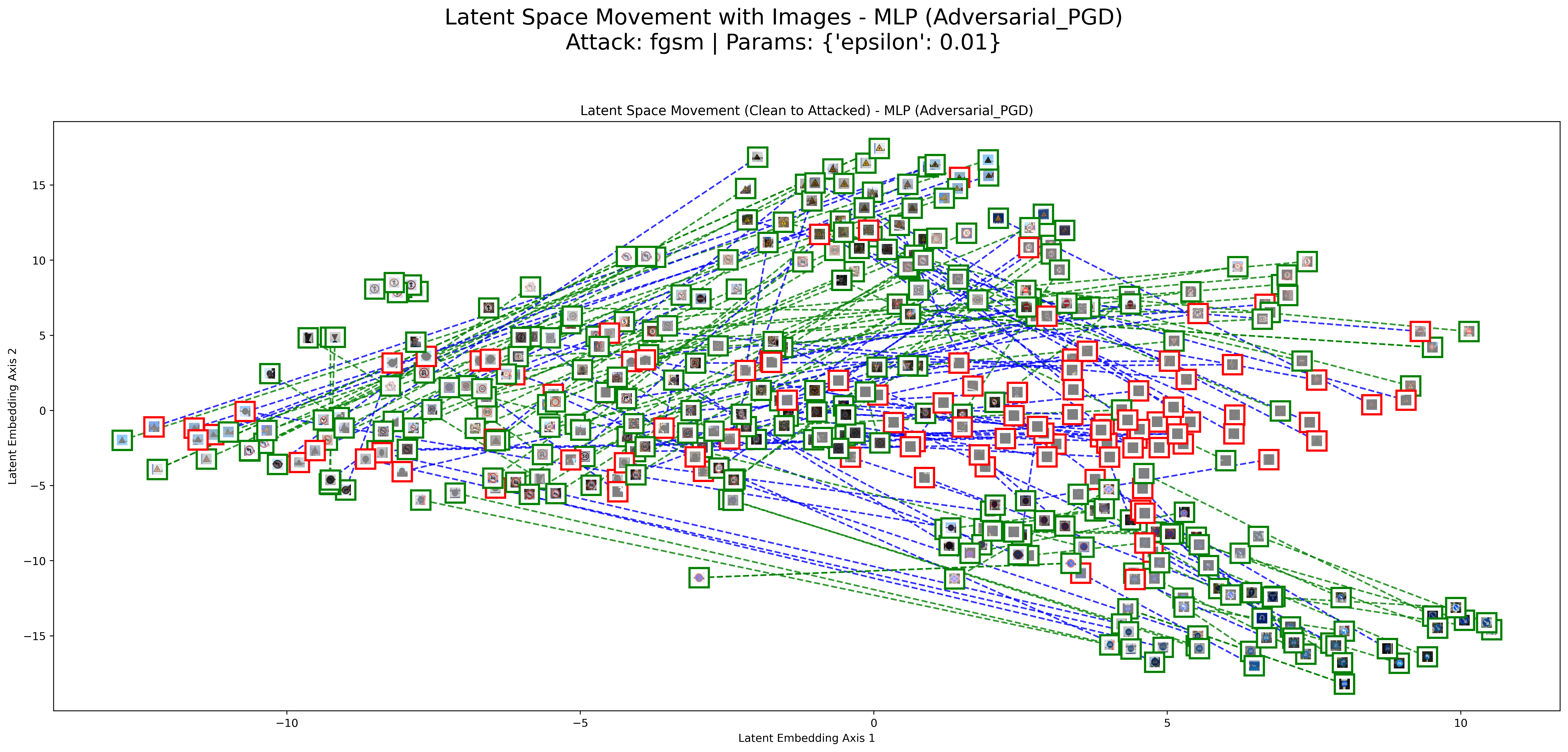

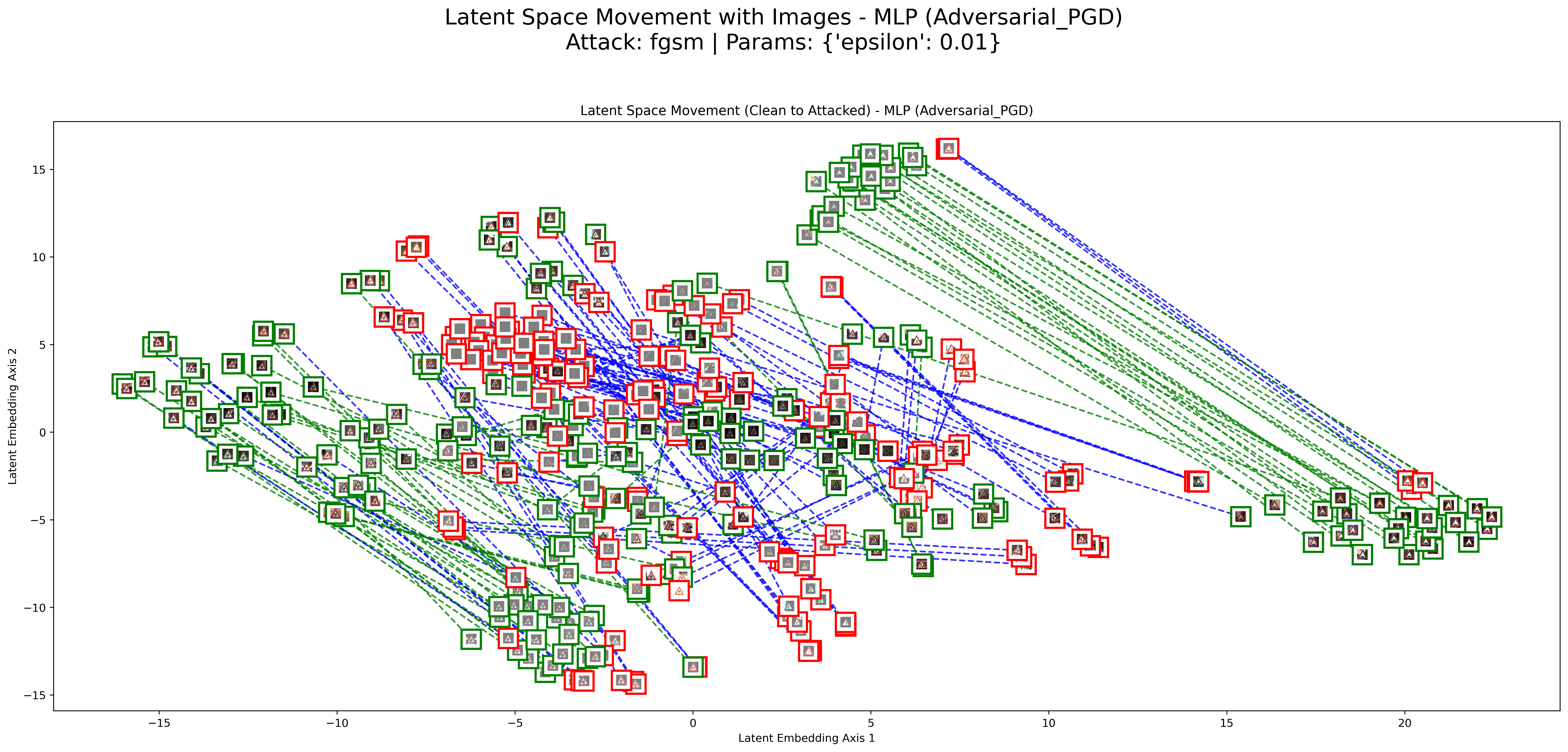

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

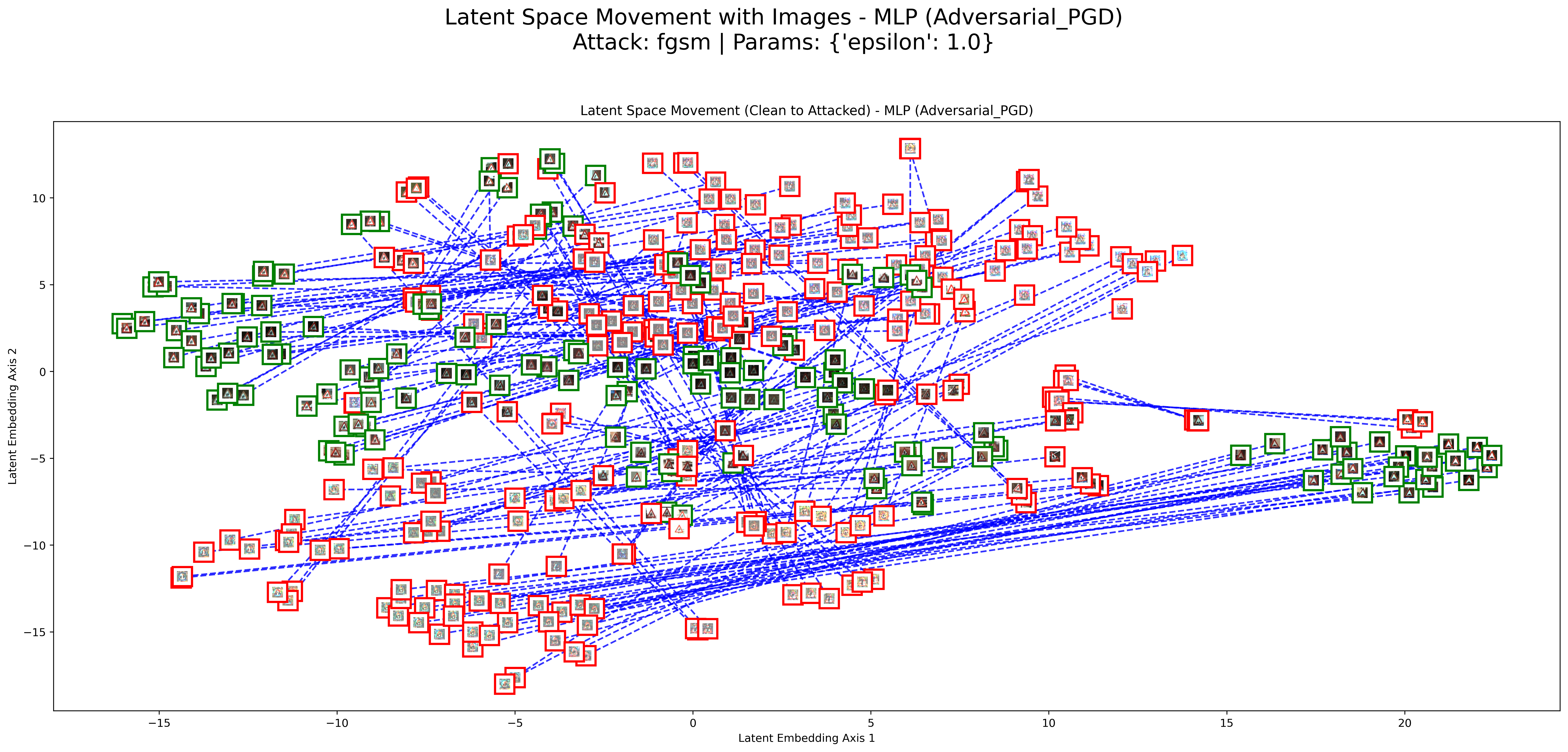

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

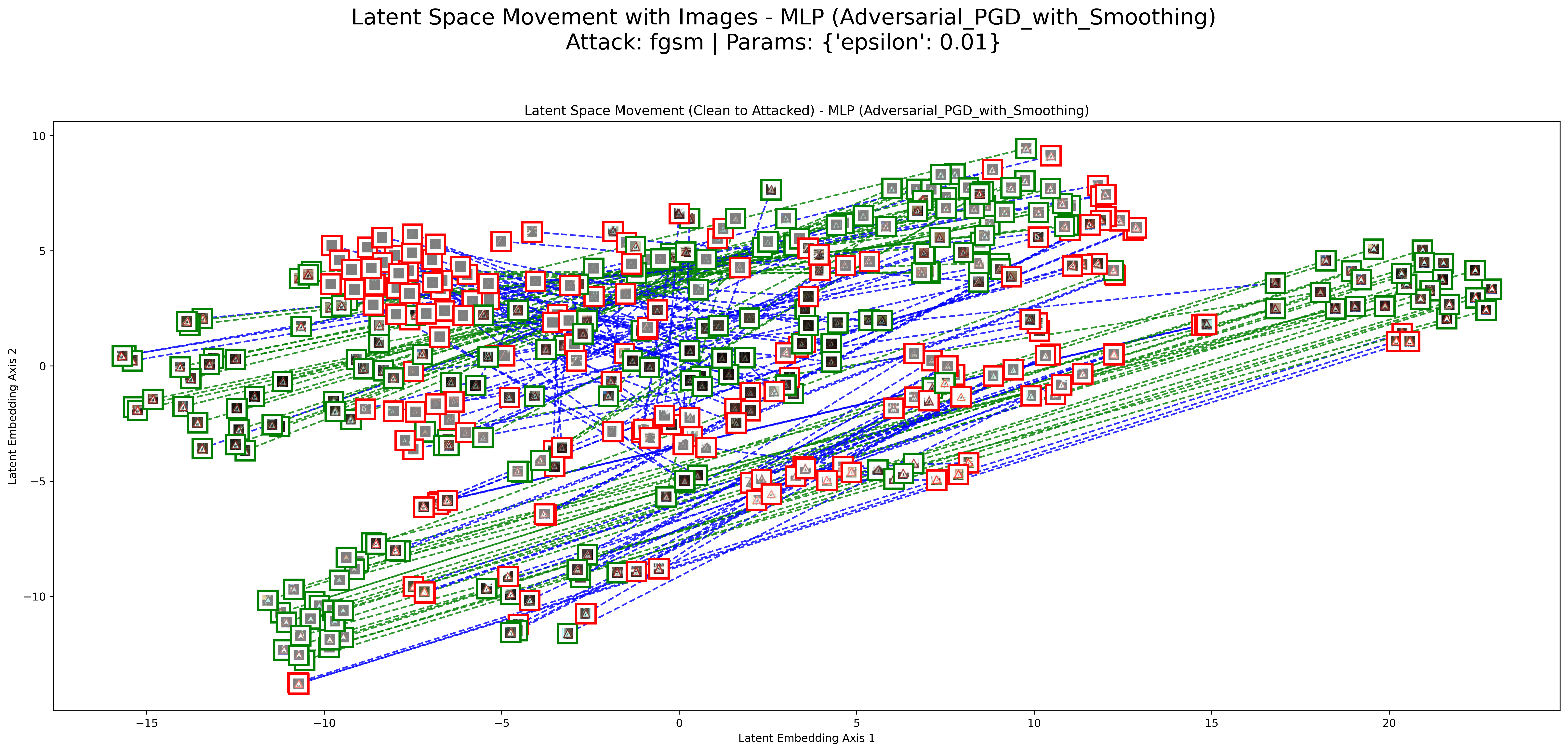

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

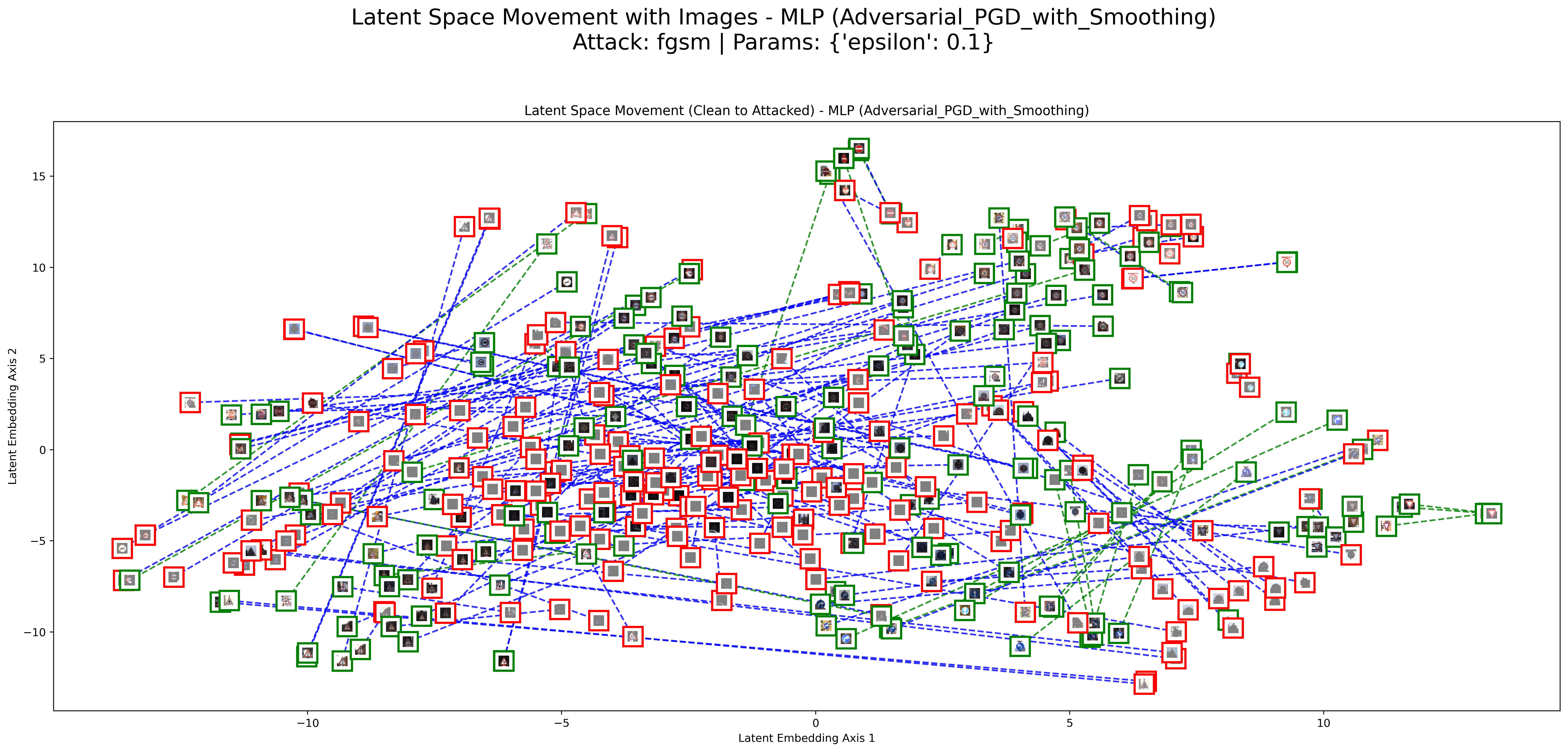

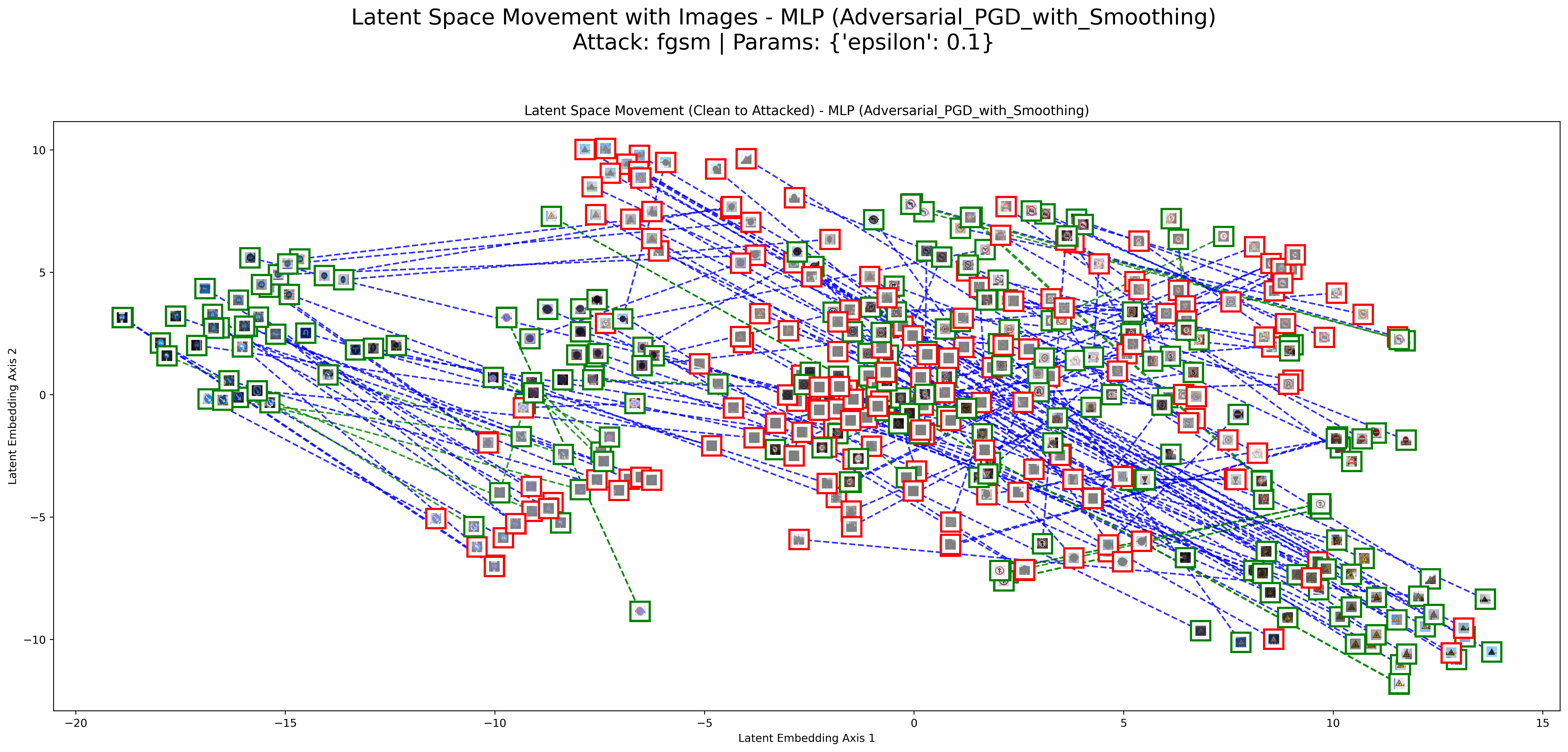

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

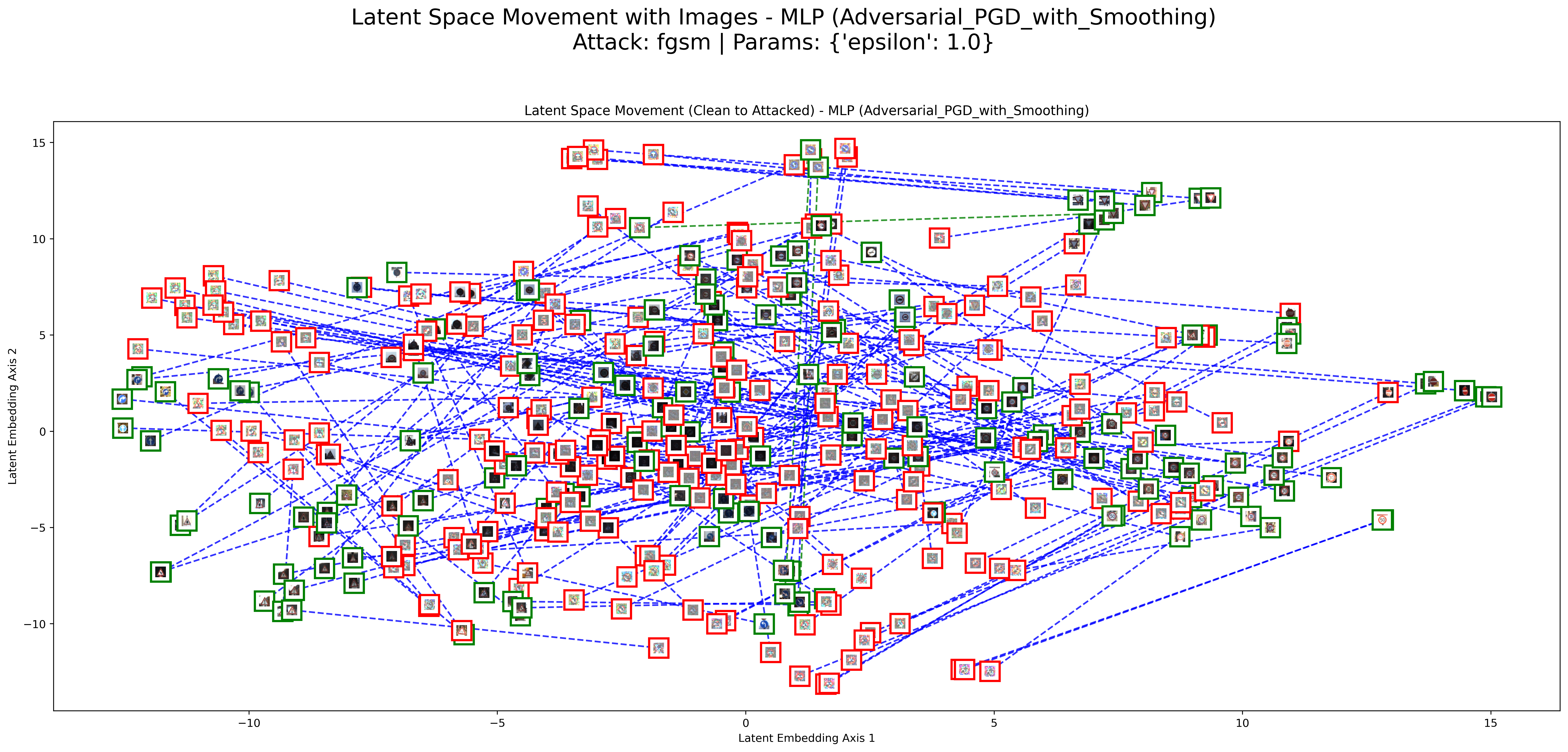

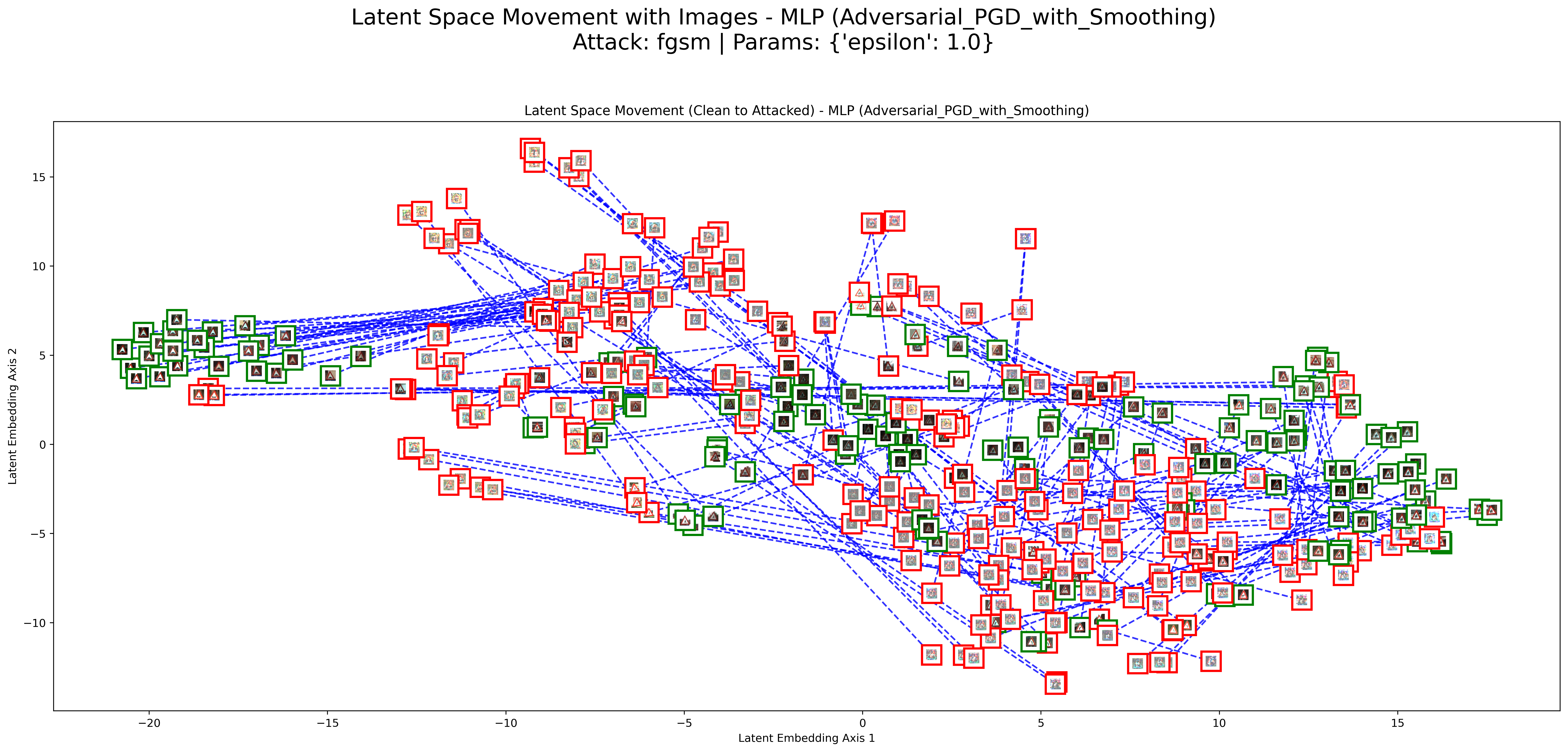

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

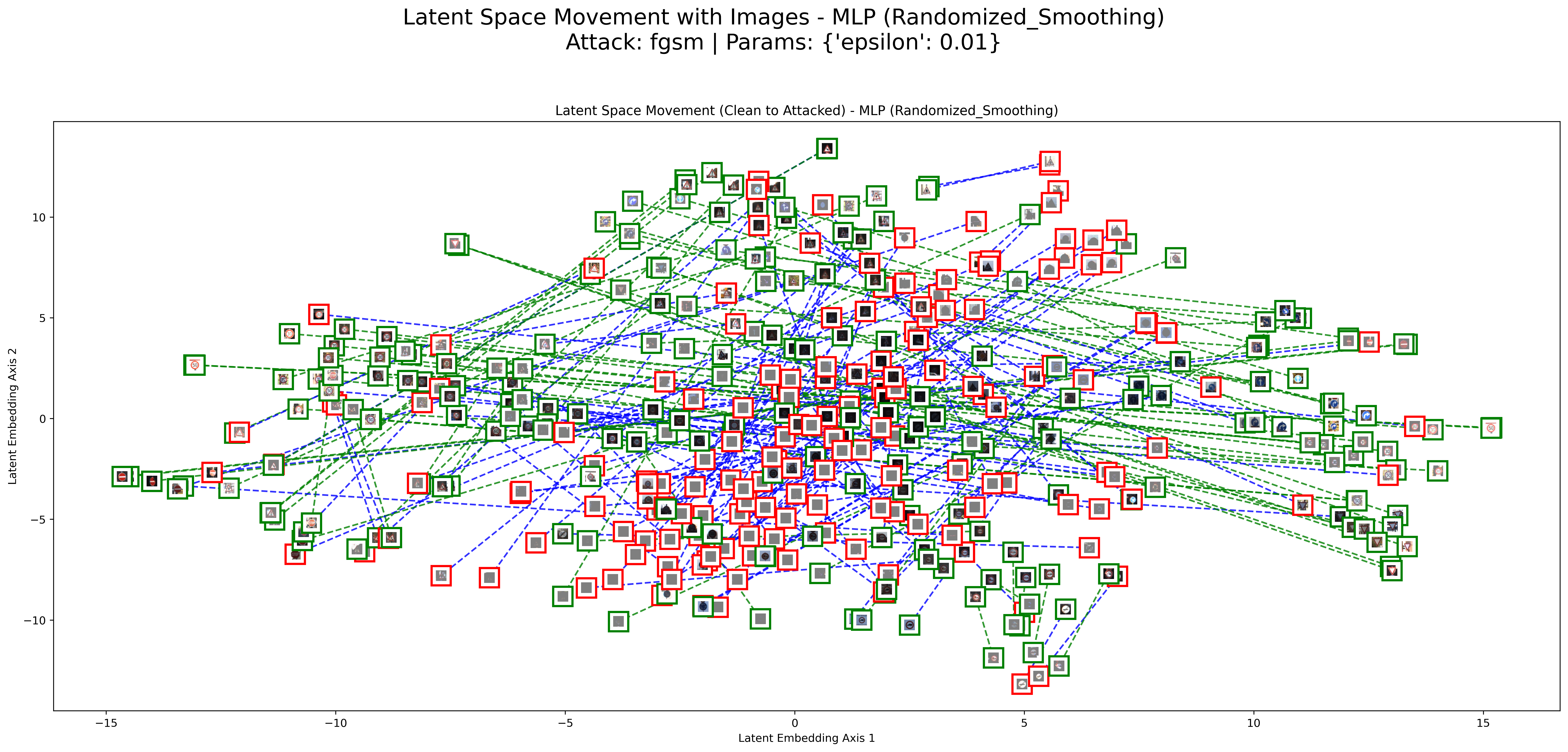

Title: Randomized_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

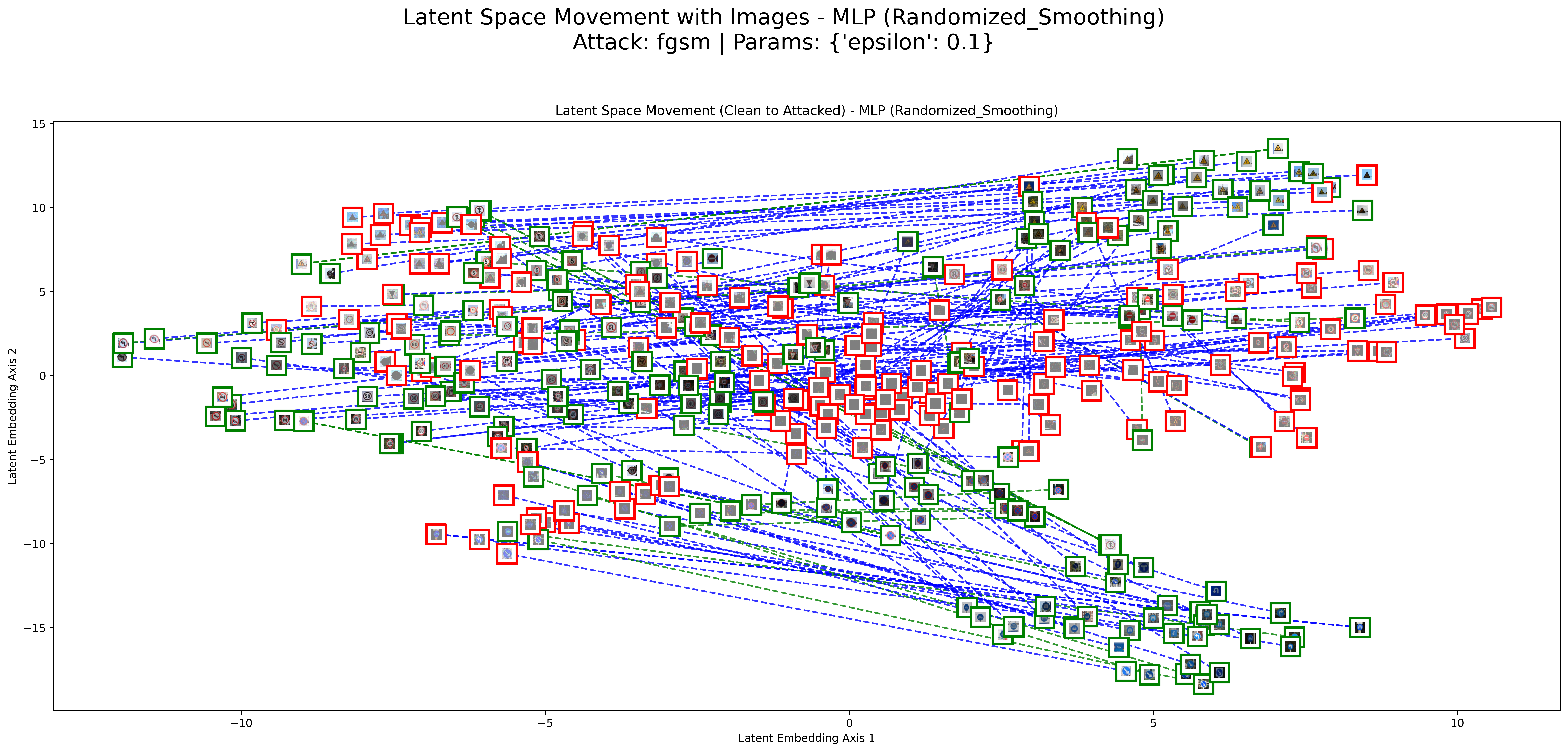

Title: Randomized_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

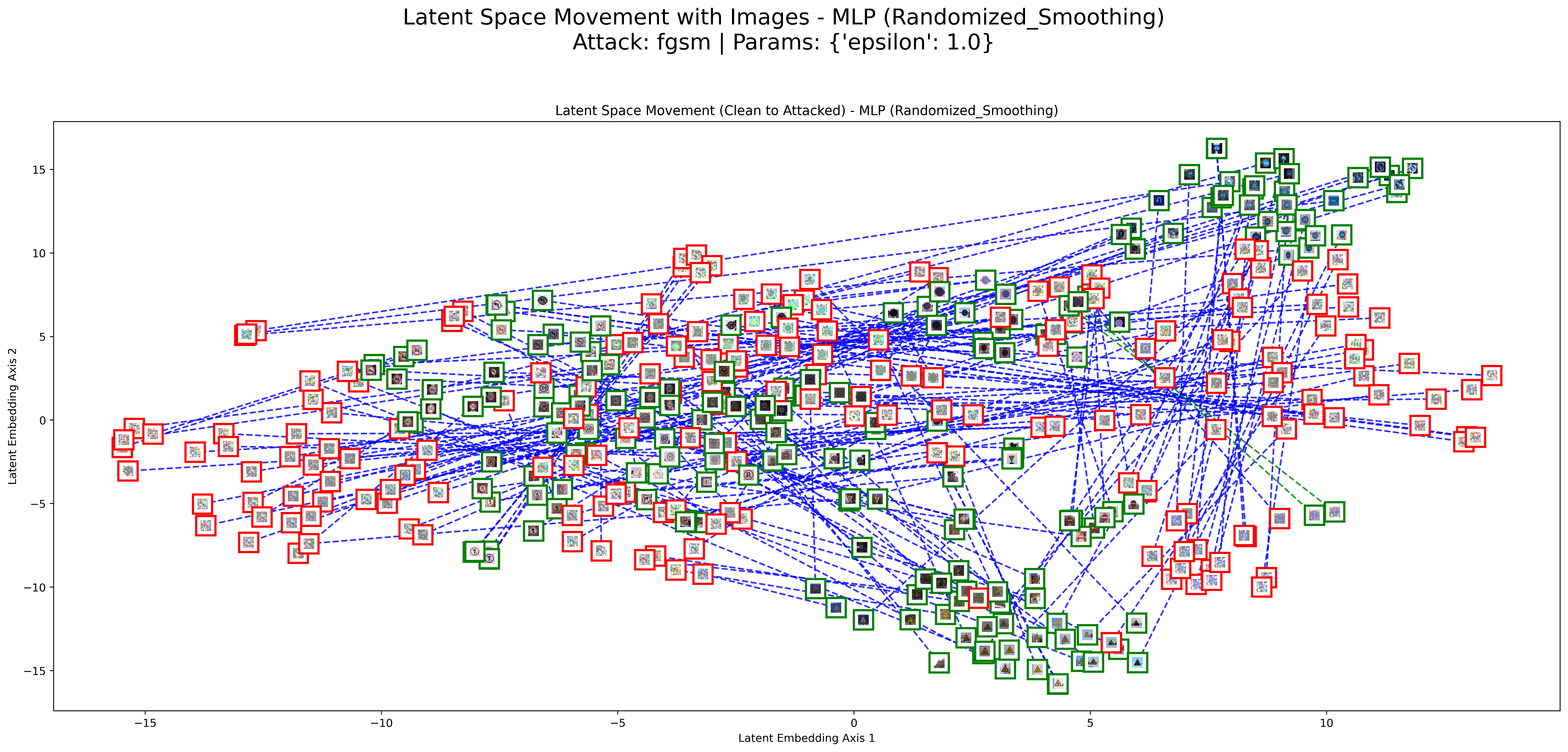

Title: Randomized_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

FGSM Attack Results on MLP Model and CTSRB

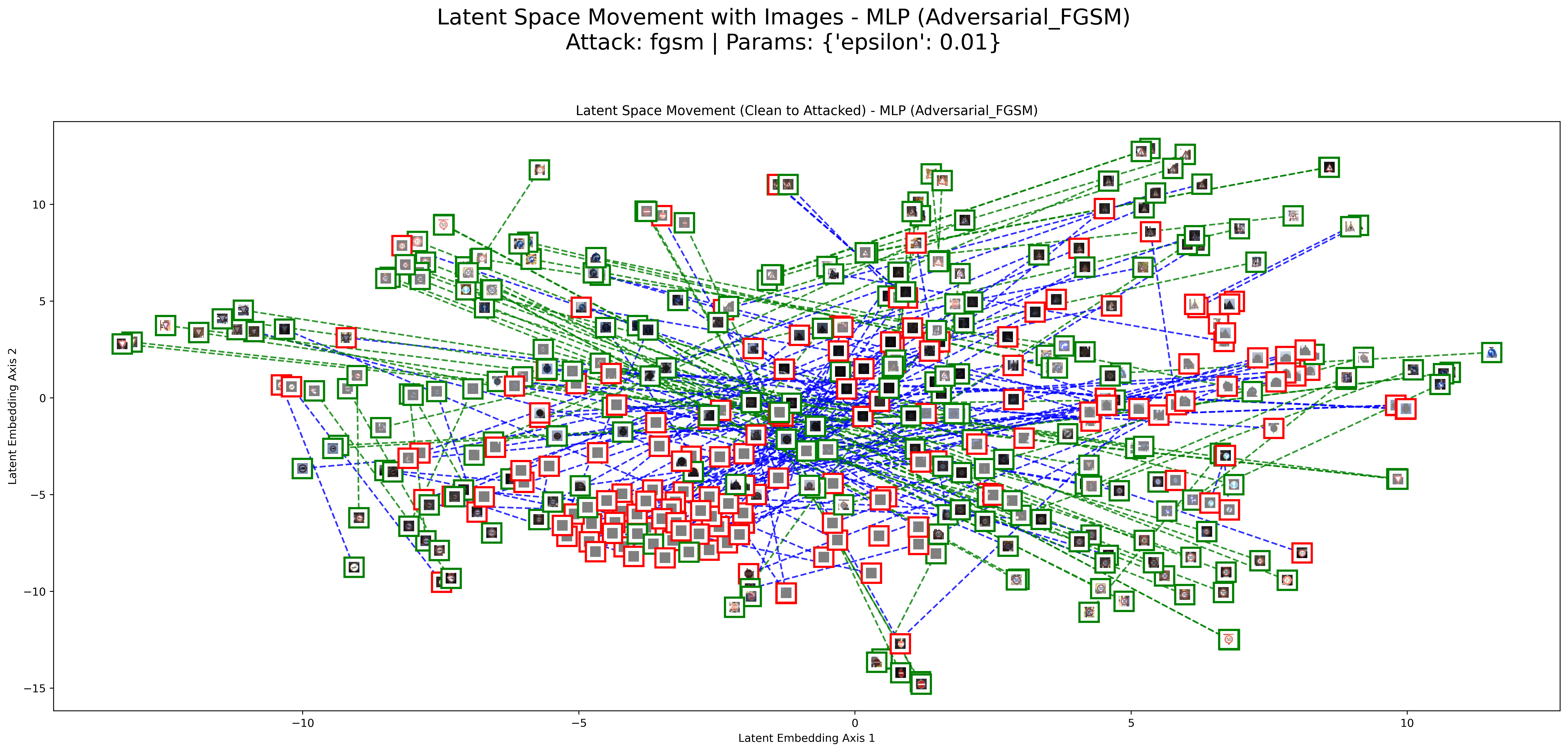

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

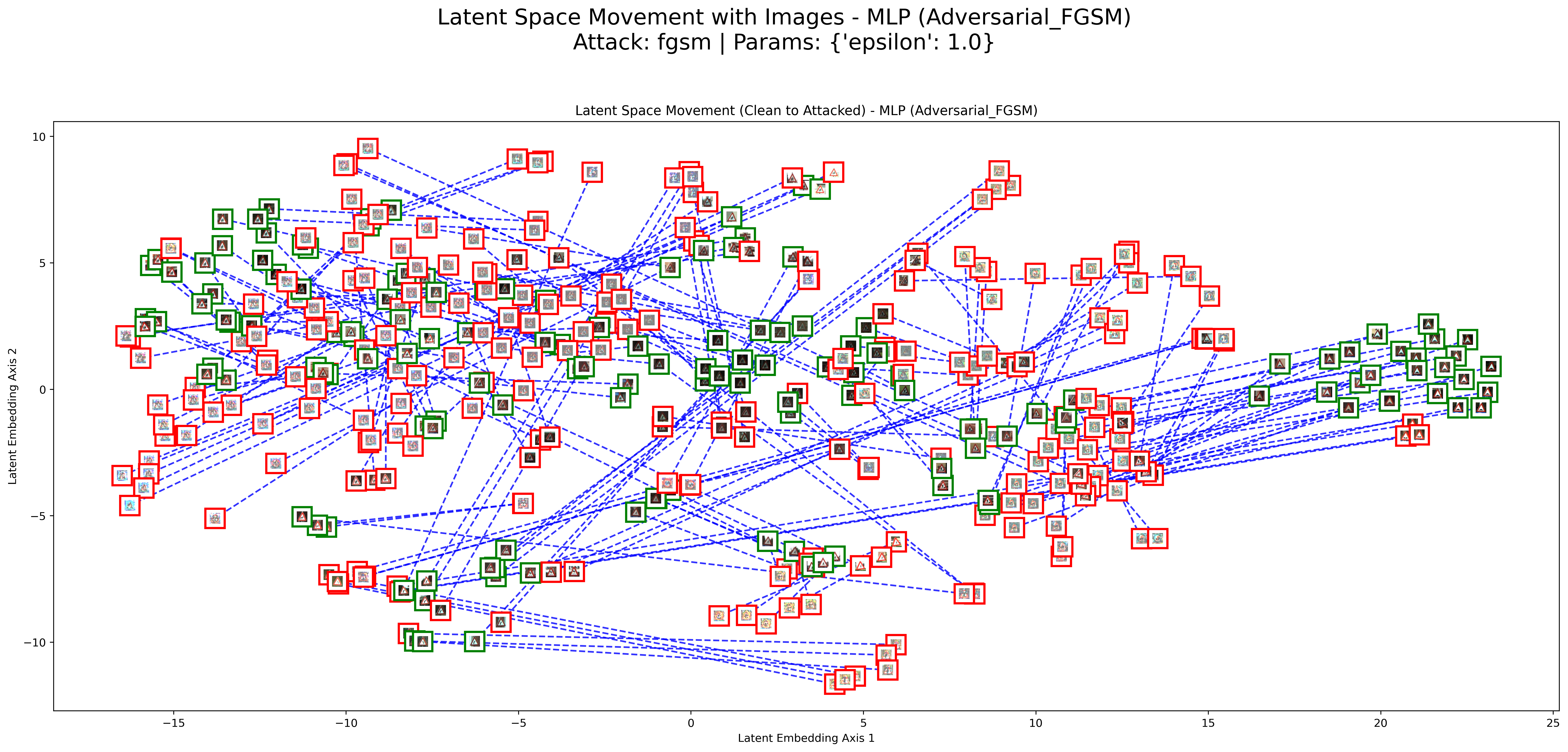

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

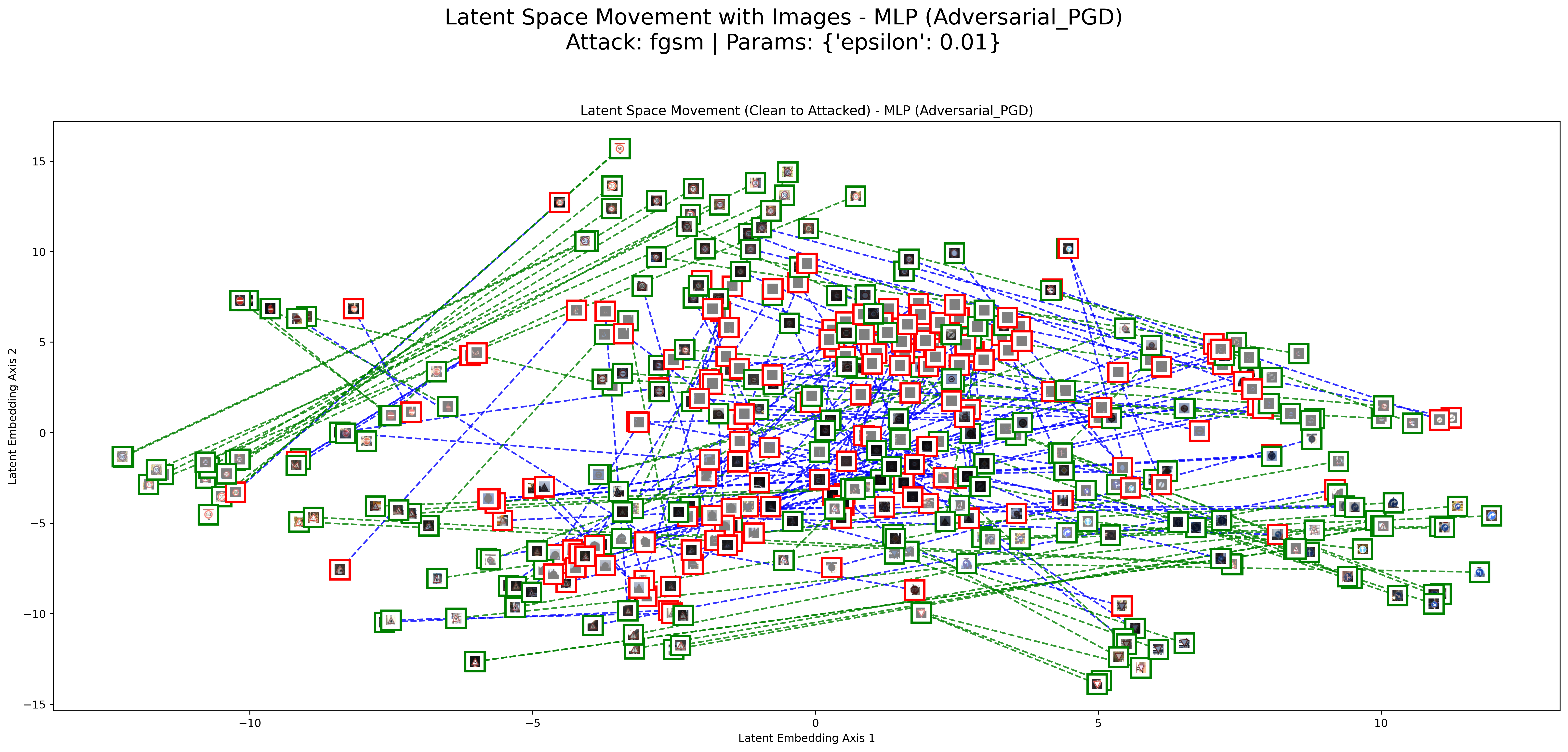

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

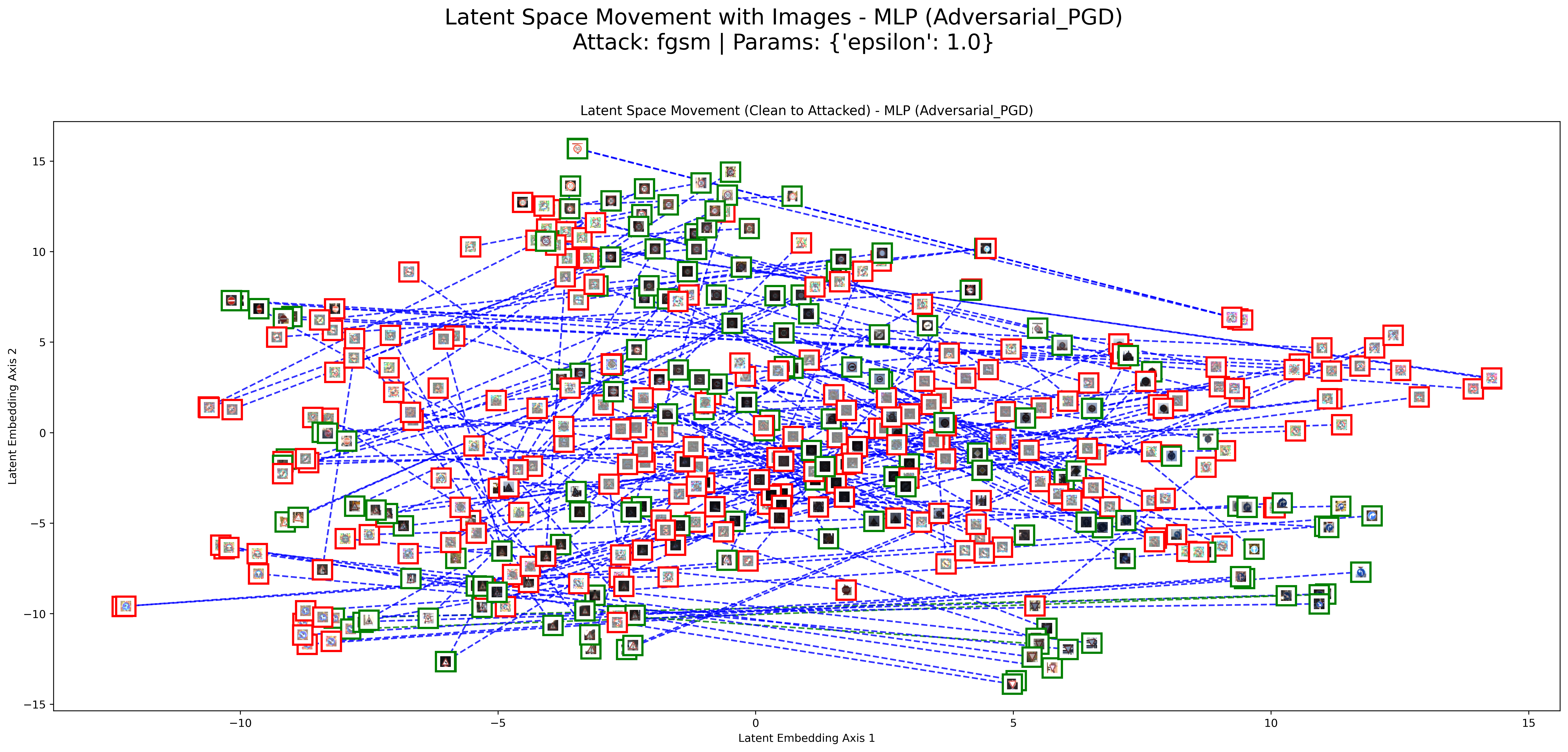

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

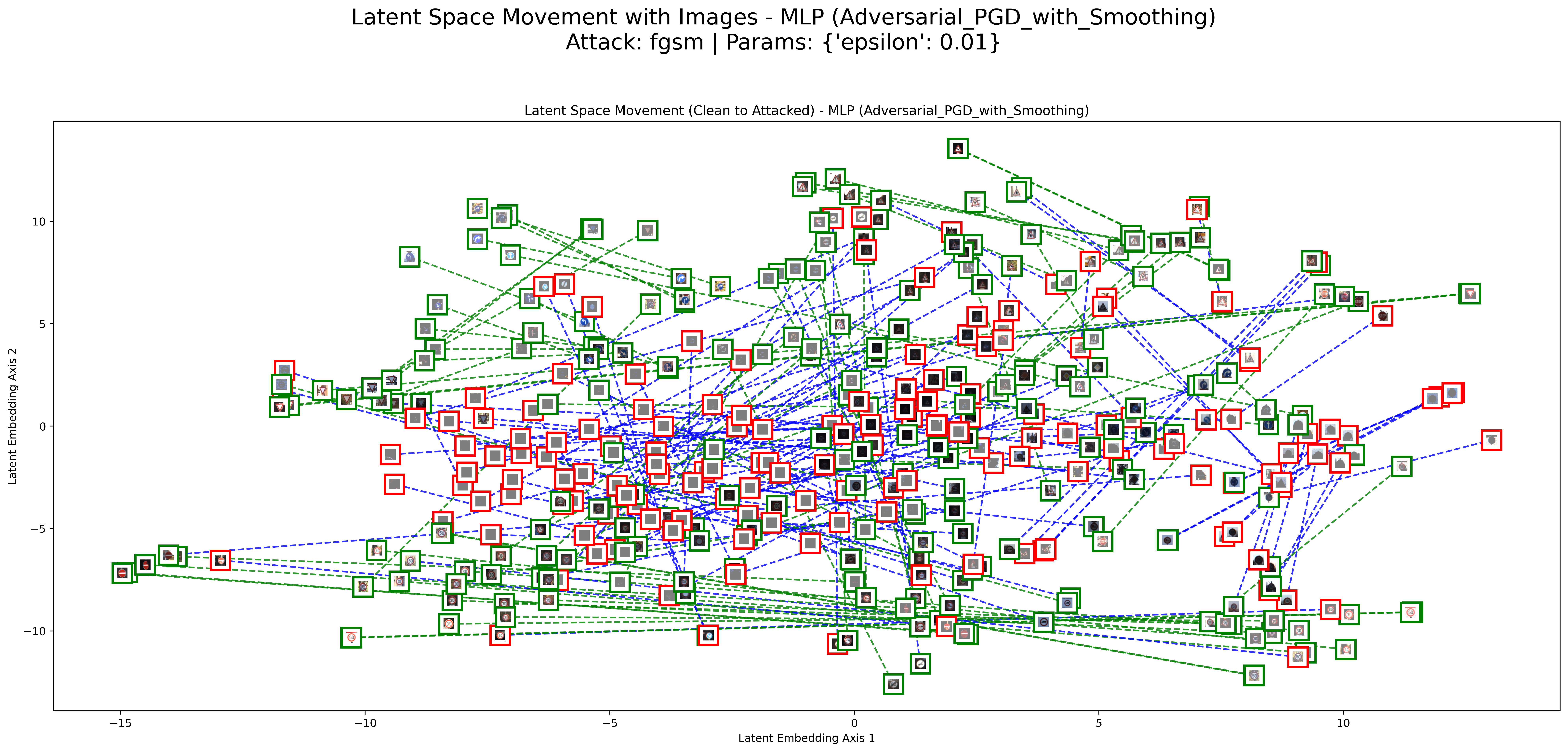

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

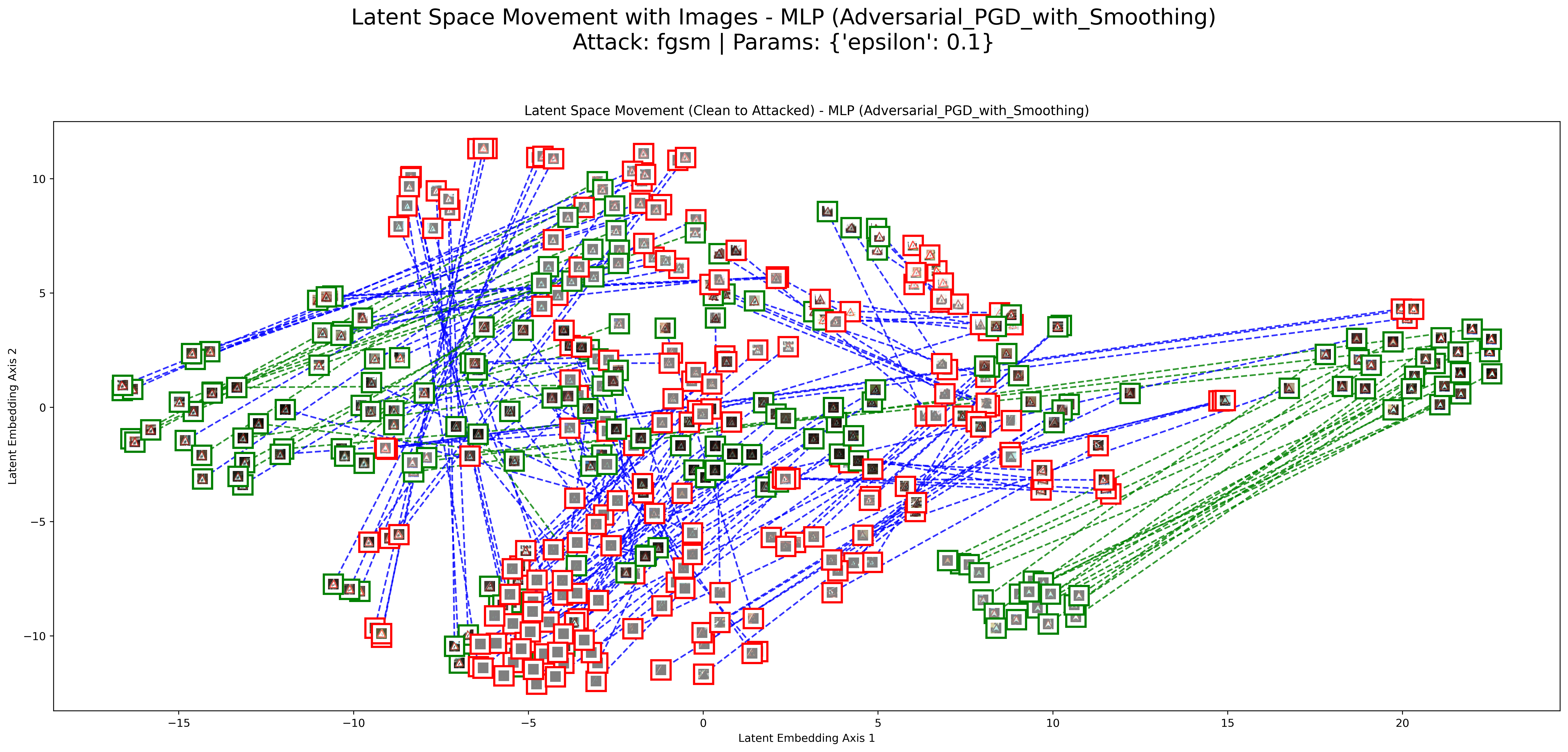

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

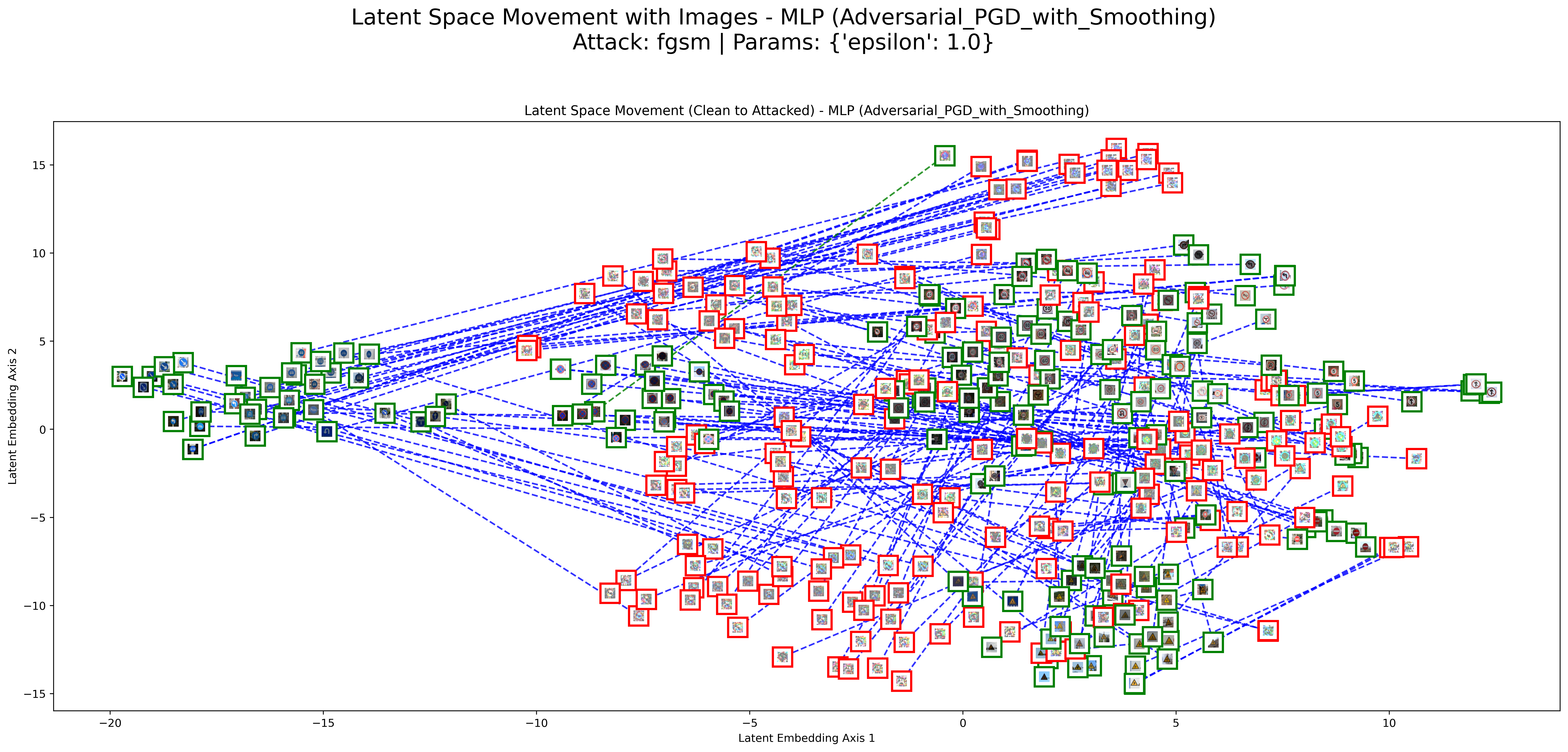

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

FGSM Attack Results on MLP Model and GTSRB

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

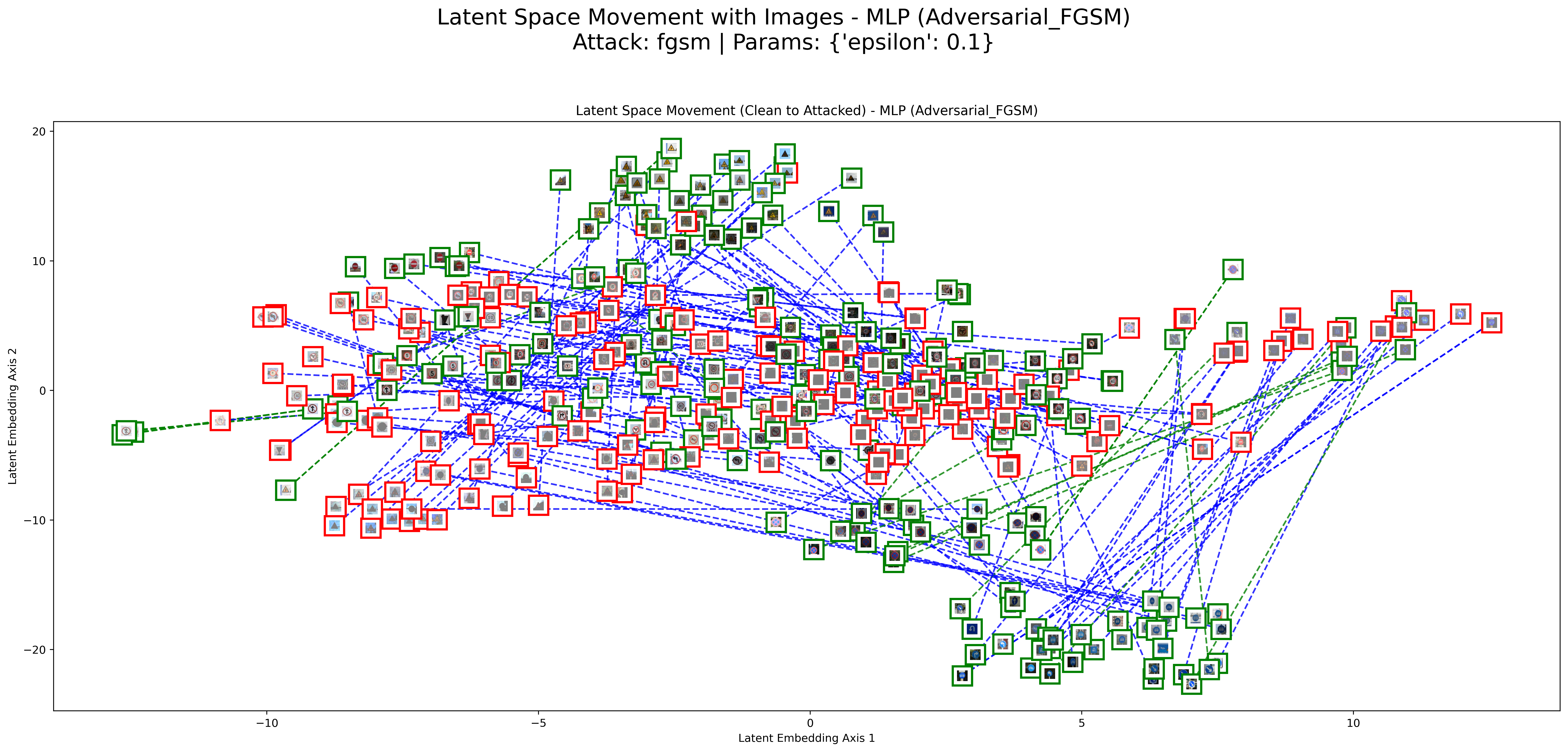

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

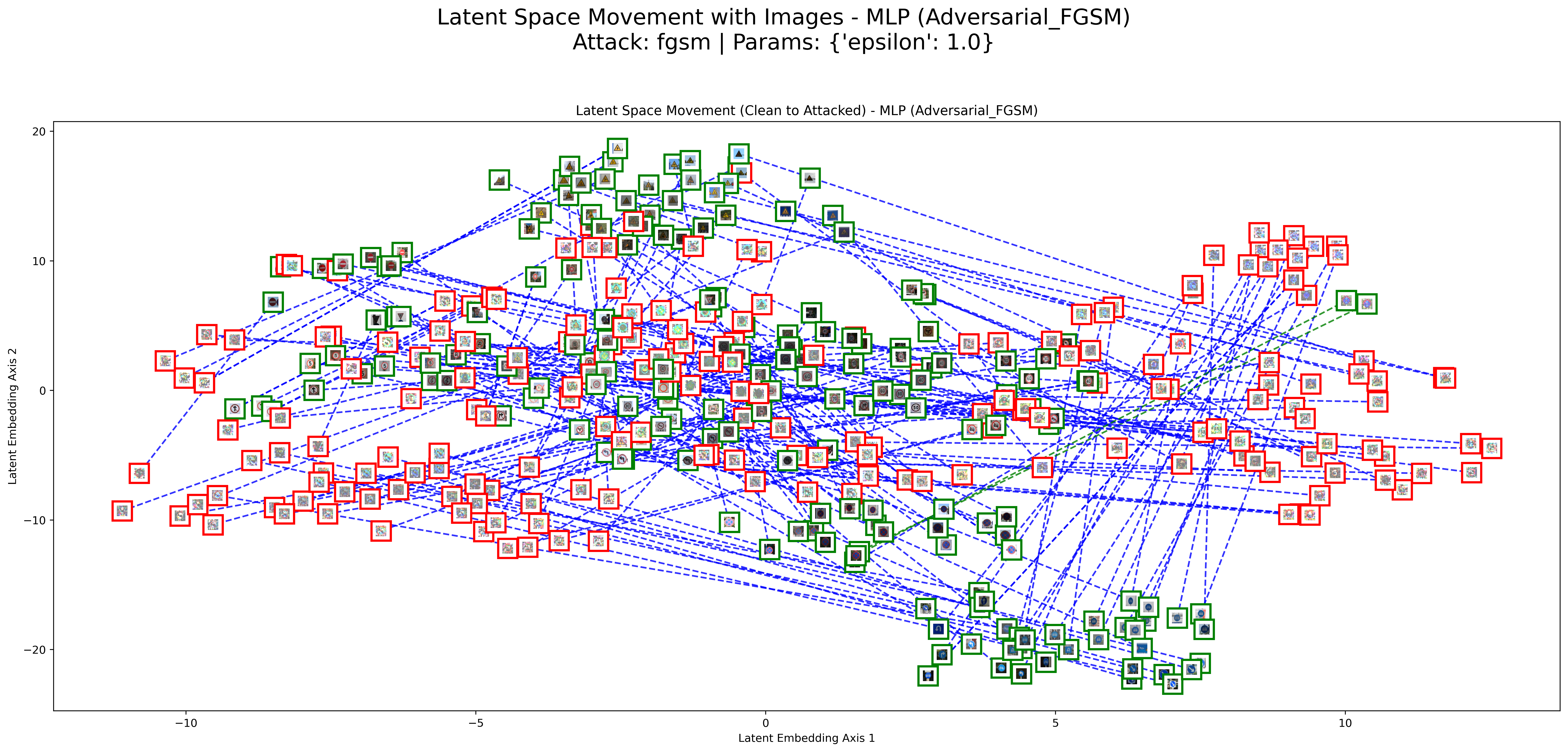

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

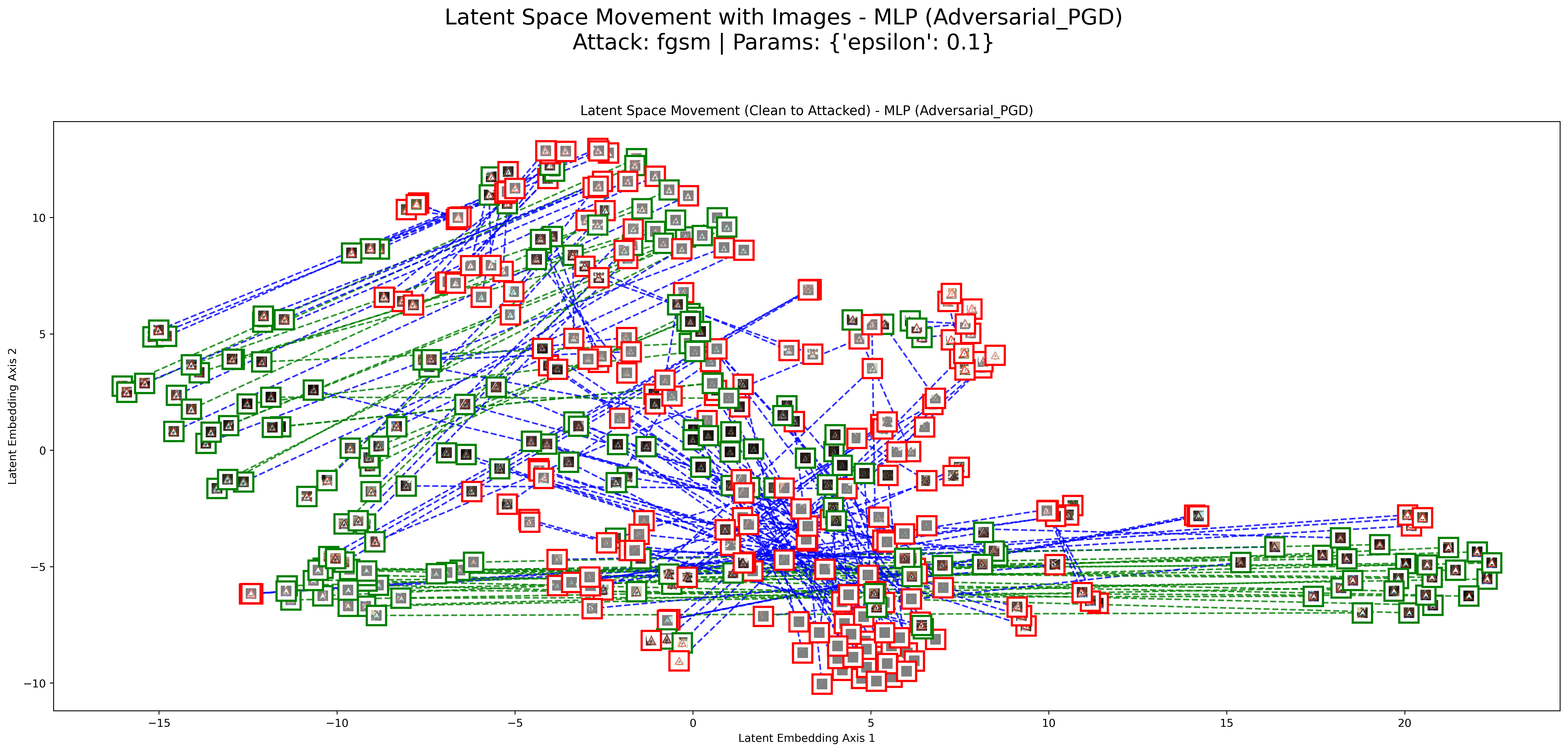

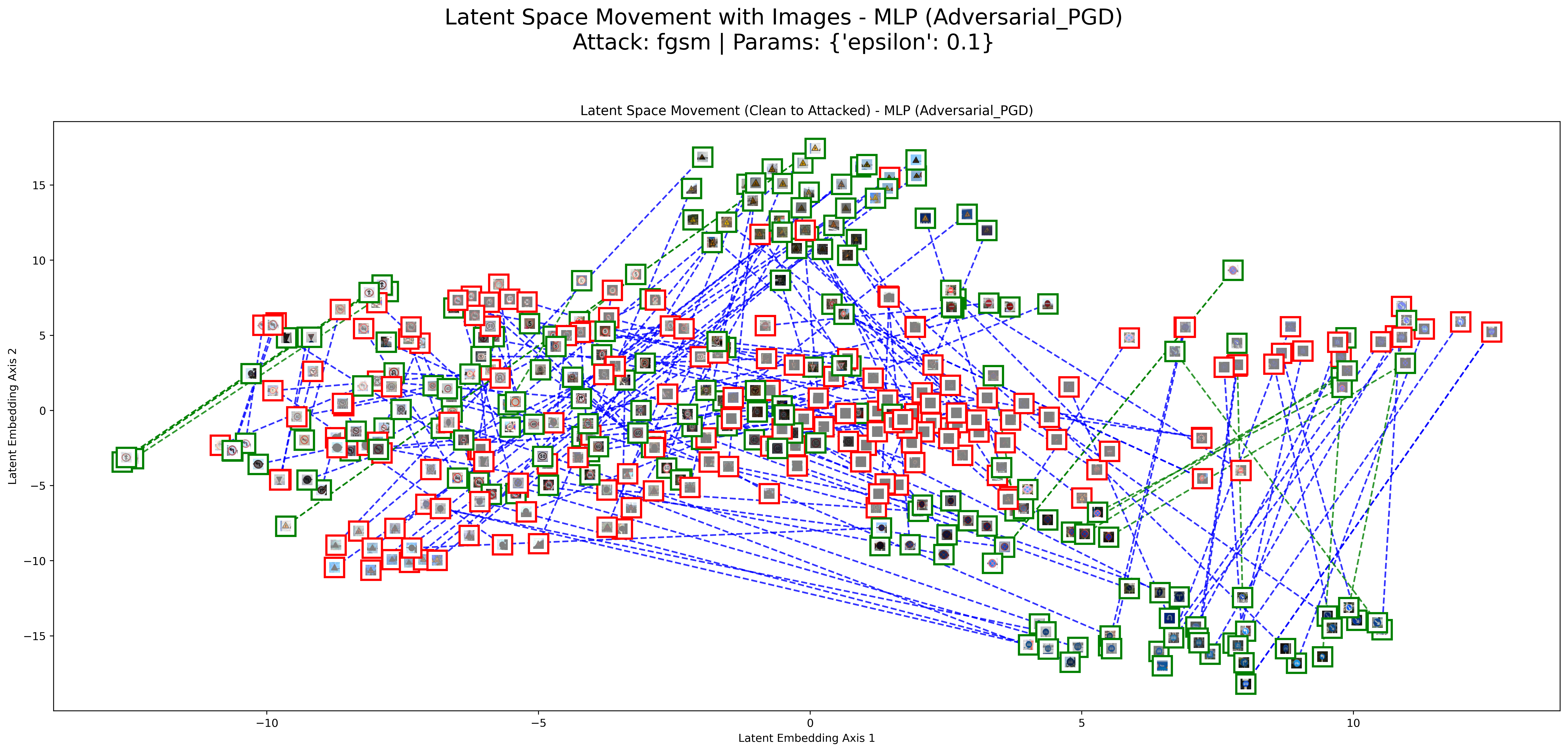

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 0.1.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Description: This image shows Lattent Space for the MLP model's output when attack under FGSM with epsilon = 1.0.

View Full Image

Model	Dataset	Training Type	Attack Type	Epsilon (ε)	Alpha (α)	Num Iter	Accuracy	Success Rate	Degree of Change	Evaluation Samples
KAN	GTSRB	Standard	BIM	0.01	0.01	7	78	1	0.274808437	200 Samples
MLP	GTSRB	Standard	BIM	0.01	0.01	7	78	1.5	0.274774492	200 Samples
KAN	BTSRB	Standard	BIM	0.01	0.01	7	70	4.5	0.275408447	200 Samples
MLP	BTSRB	Standard	BIM	0.01	0.01	7	72	2	0.275390506	200 Samples
KAN	CTSRD	Standard	BIM	0.01	0.01	7	97	0	0.2763412	200 Samples
MLP	CTSRD	Standard	BIM	0.01	0.01	7	96.5	1.5	0.276363462	200 Samples
KAN	GTSRB	Standard	BIM	0.01	0.01	7	77.28424386	2.098178939		Full Test Set
MLP	GTSRB	Standard	BIM	0.01	0.01	7	80.53840063	1.694378464		Full Test Set
KAN	BTSRB	Standard	BIM	0.1	0.01	7	60	19.5	2.54839468	200 Samples
MLP	BTSRB	Standard	BIM	0.1	0.01	7	62.5	17	2.546227455	200 Samples
KAN	CTSRD	Standard	BIM	0.1	0.01	7	50	24.5	2.531177282	200 Samples
MLP	CTSRD	Standard	BIM	0.1	0.01	7	60	14	2.530832291	200 Samples
KAN	GTSRB	Standard	BIM	1	0.01	7	73.5	23.5	2.403743029	200 Samples
MLP	GTSRB	Standard	BIM	1	0.01	7	78.5	19.5	2.403558016	200 Samples

BIM Attack Results on KAN Model and BTSRB dataset

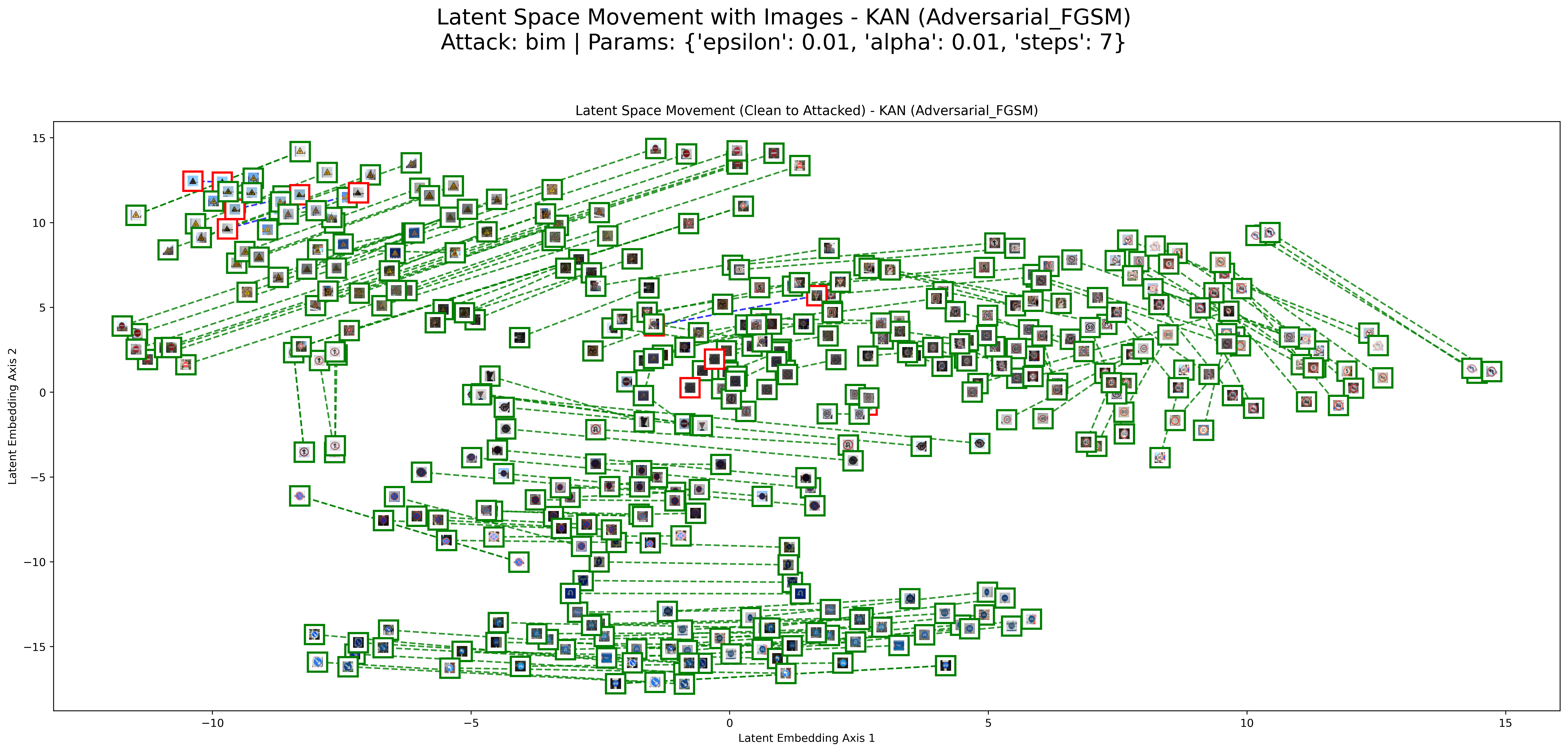

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

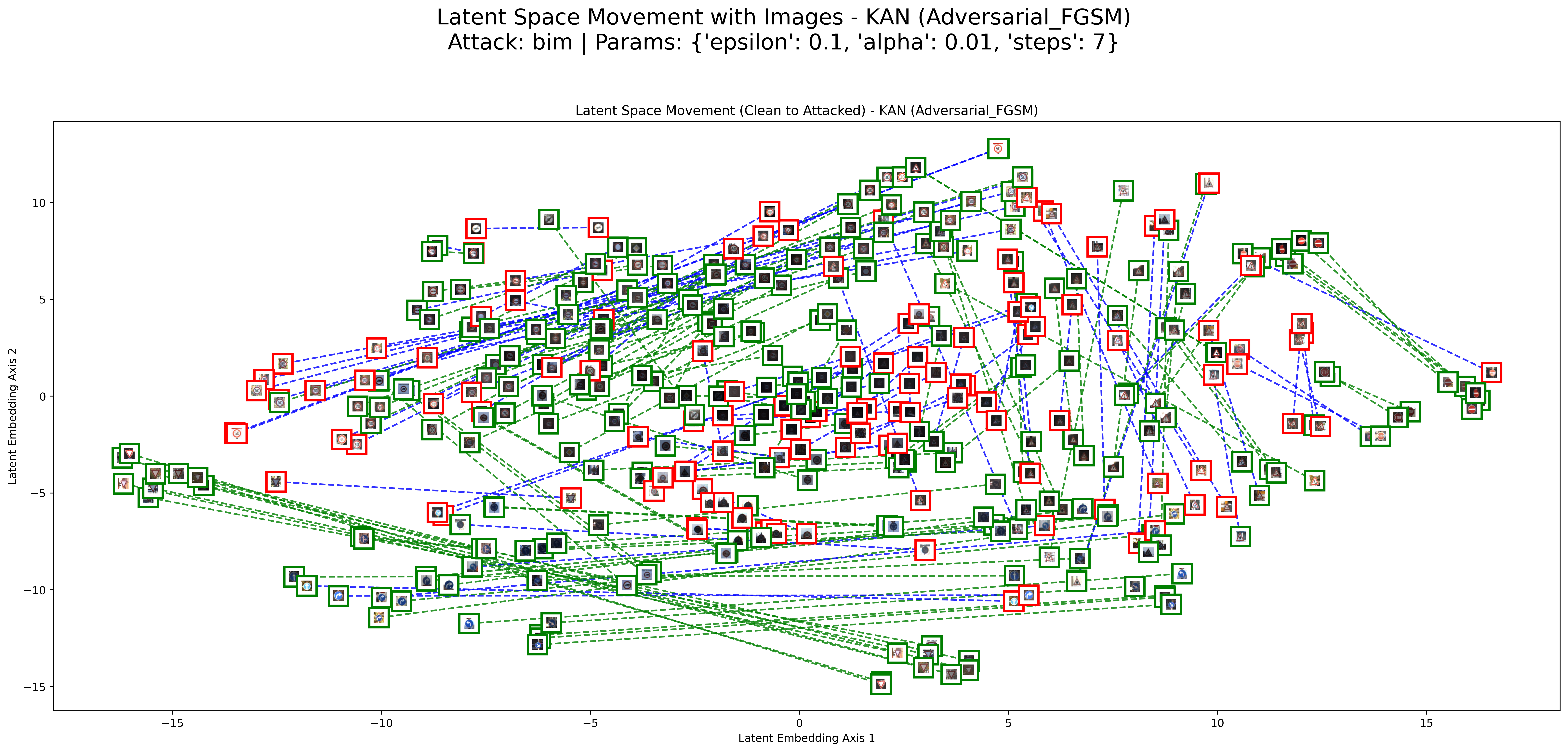

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

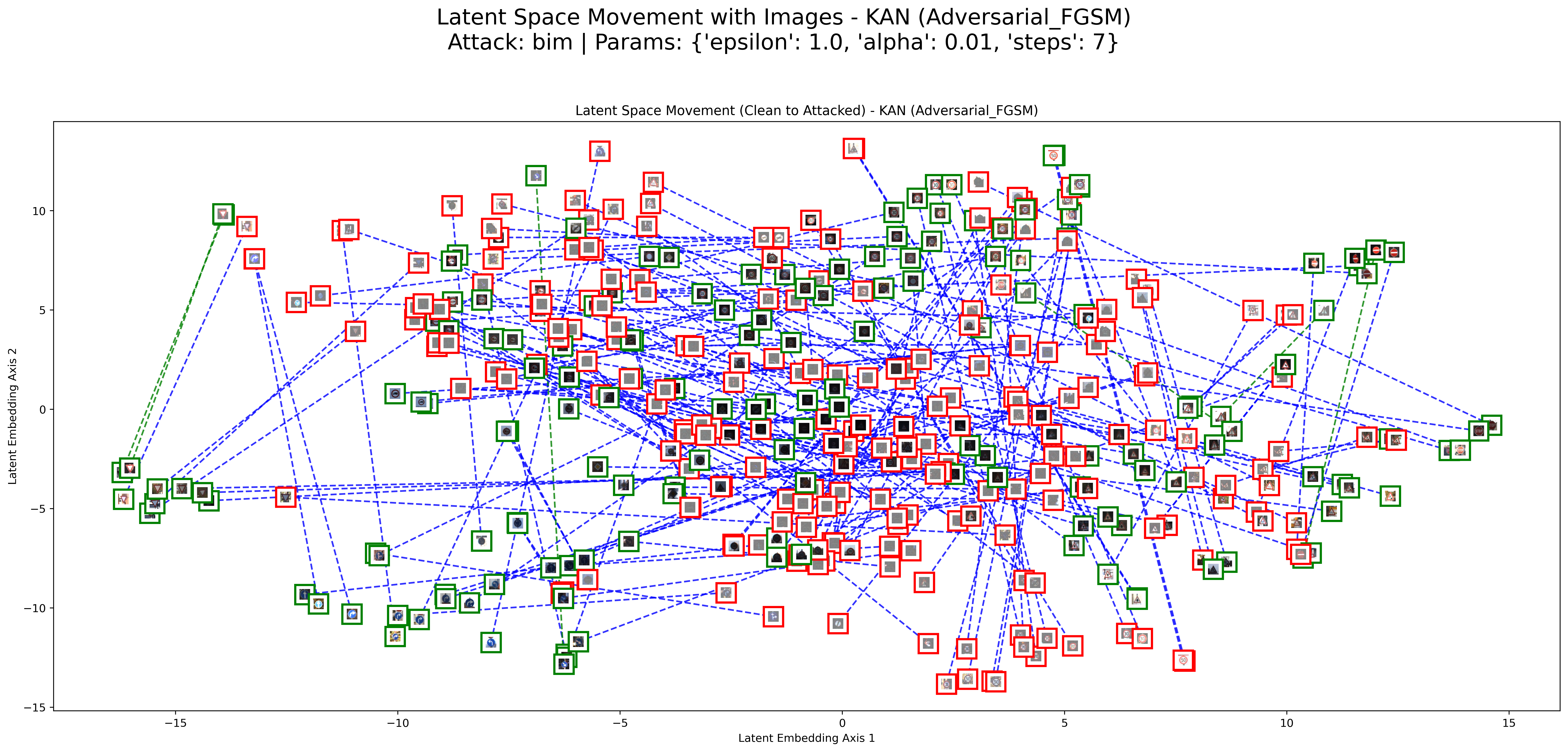

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

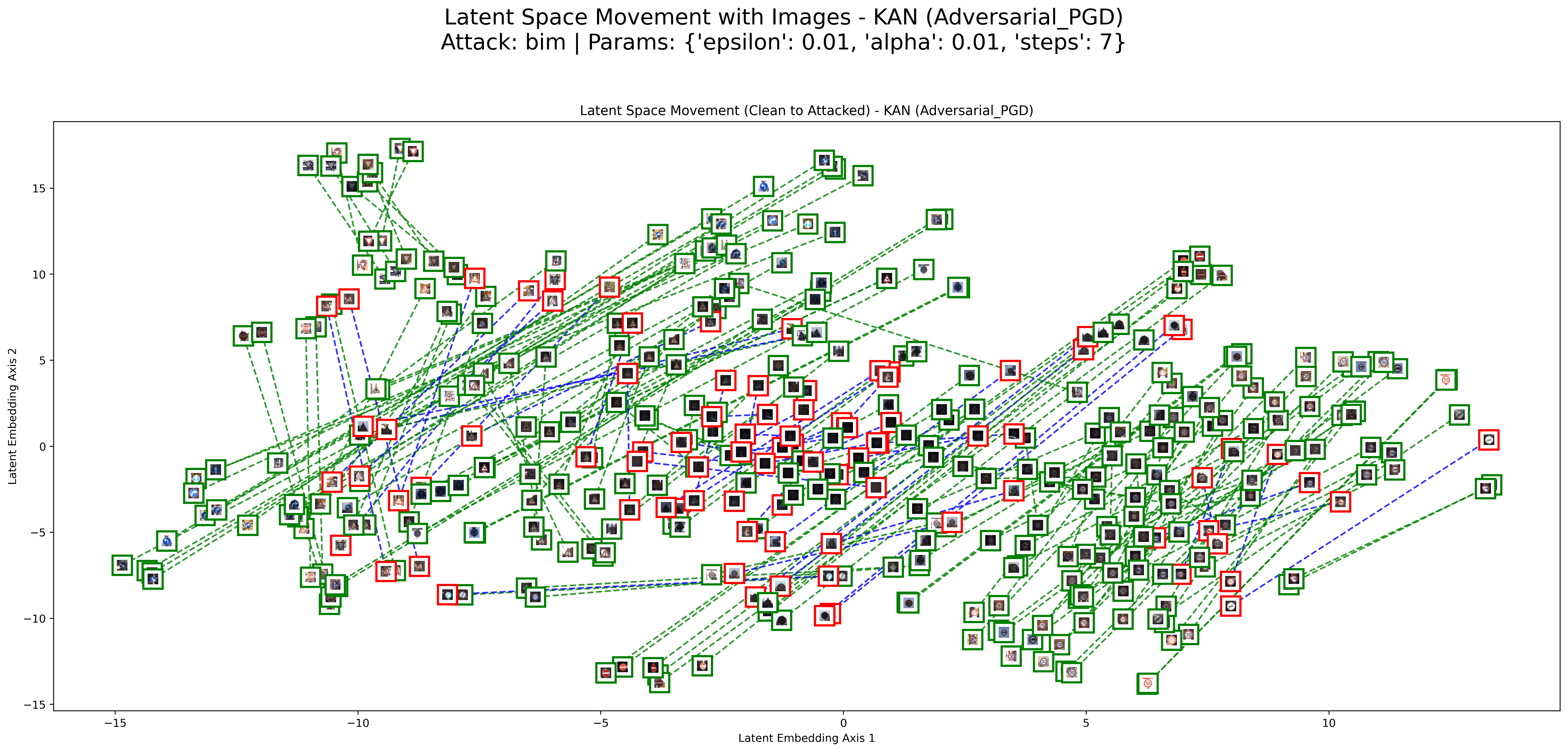

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

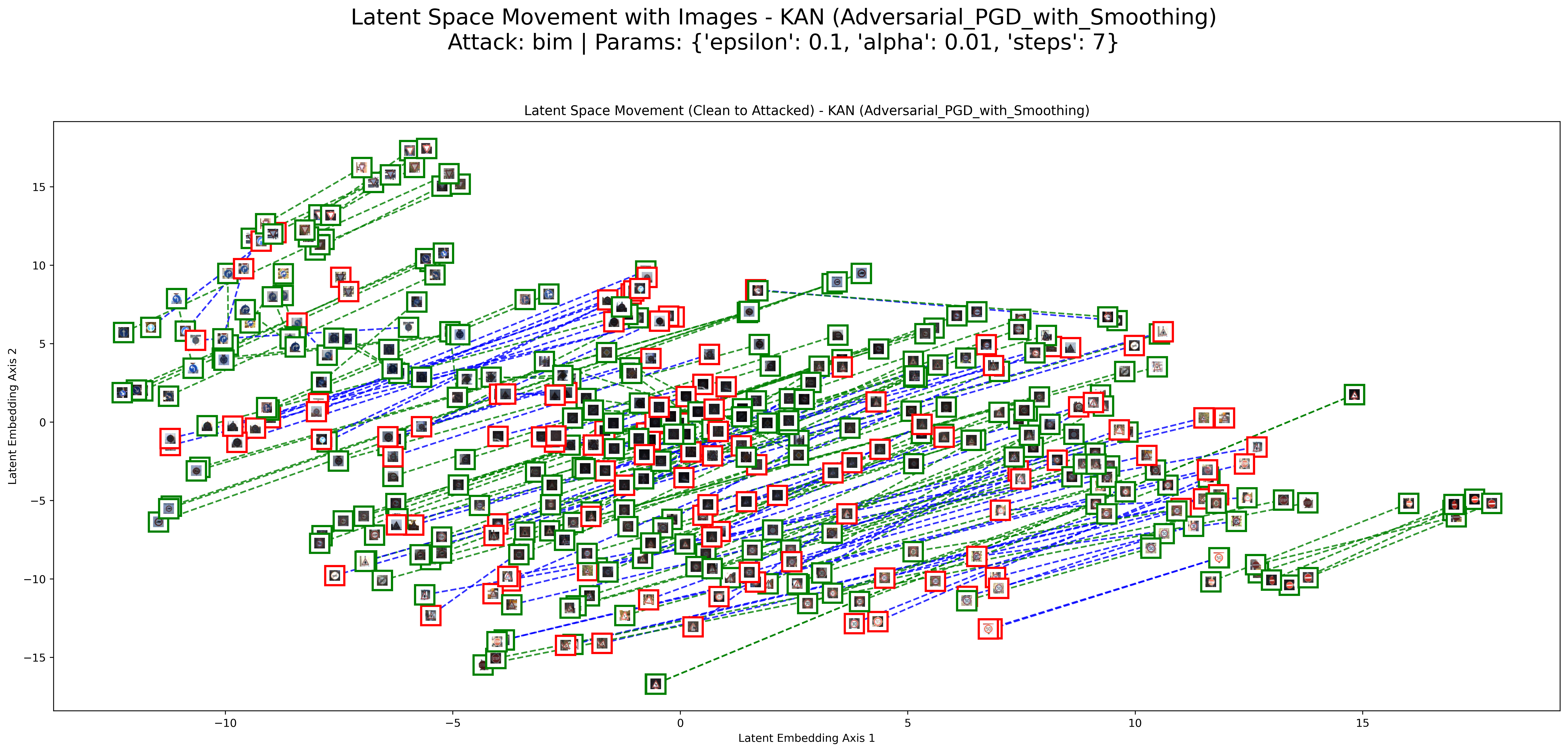

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

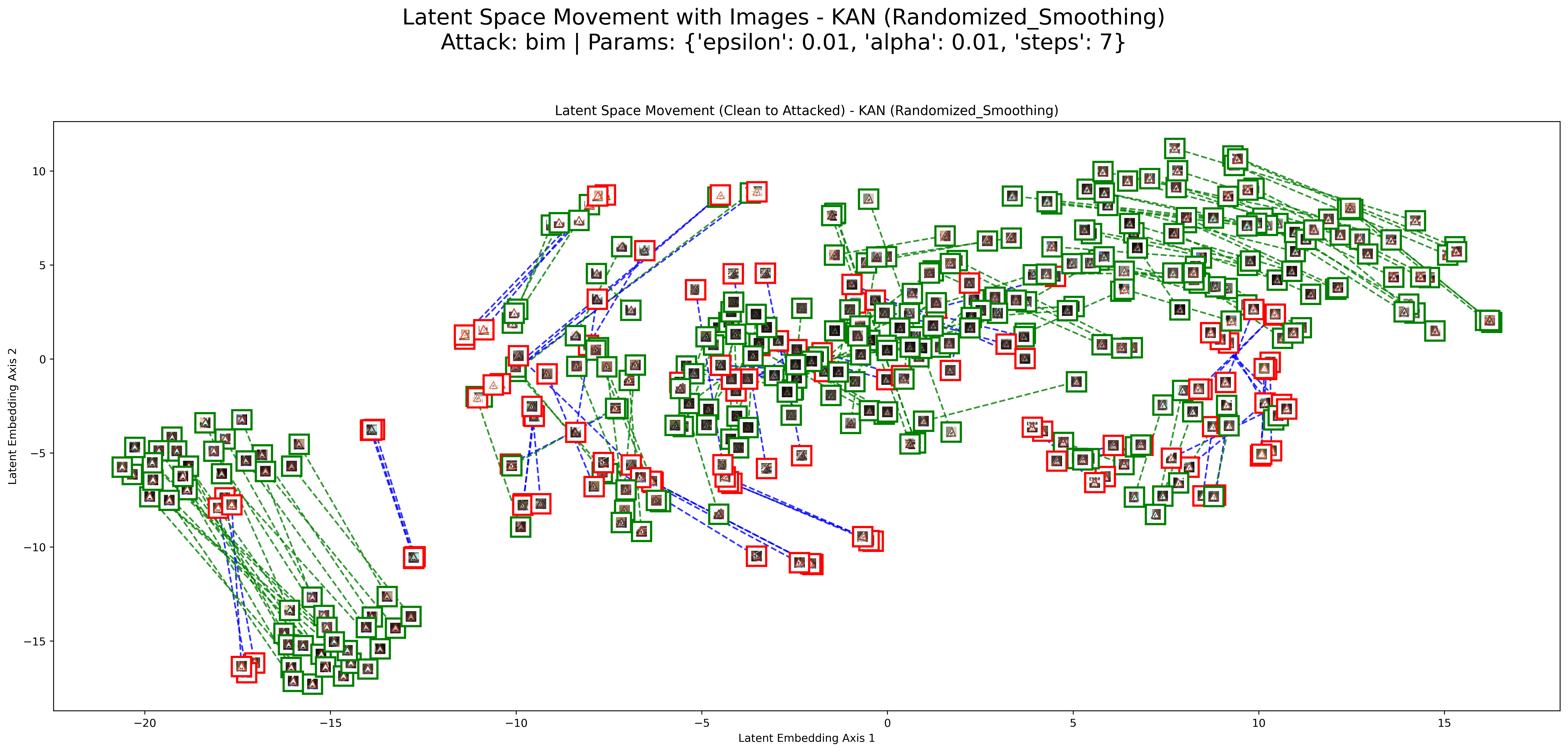

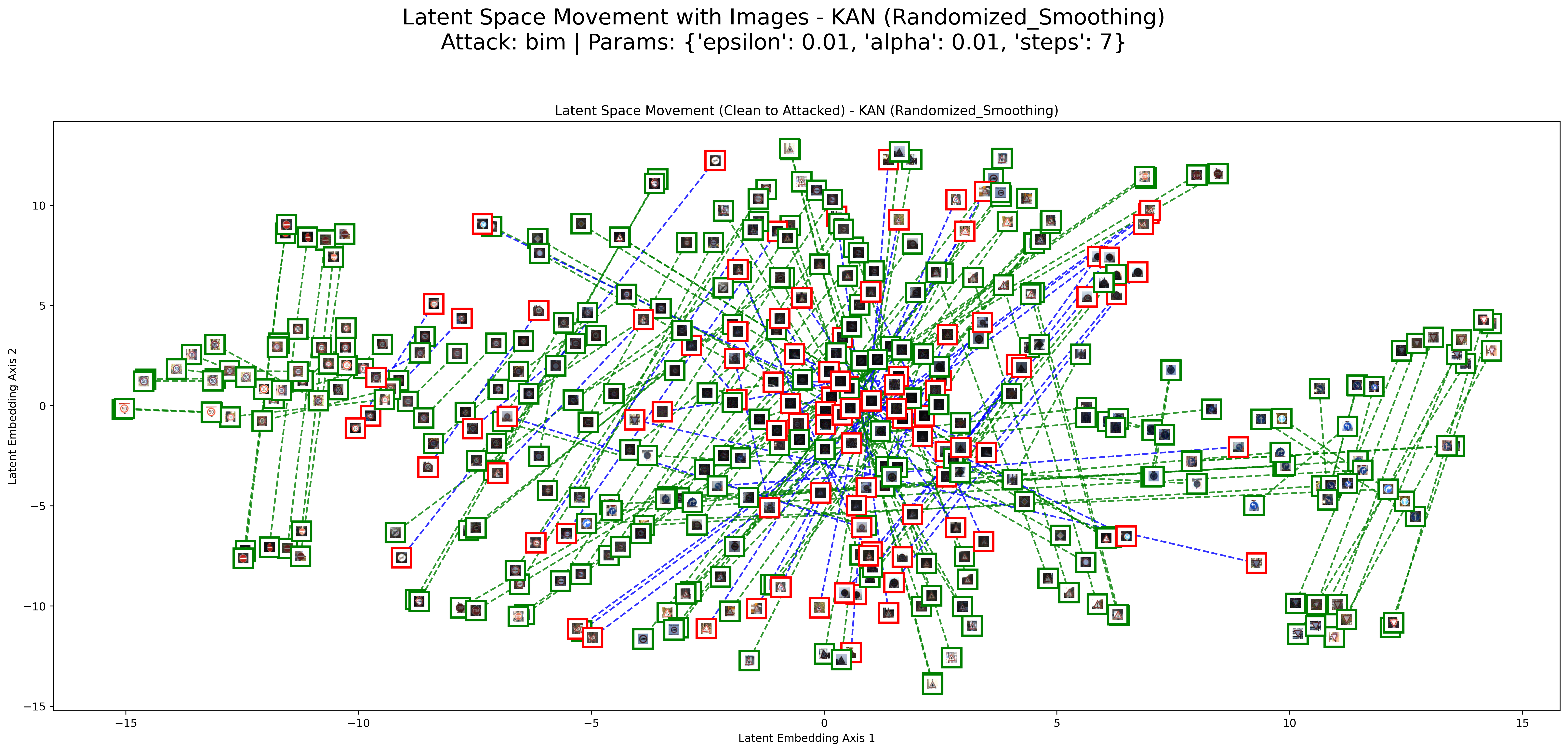

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

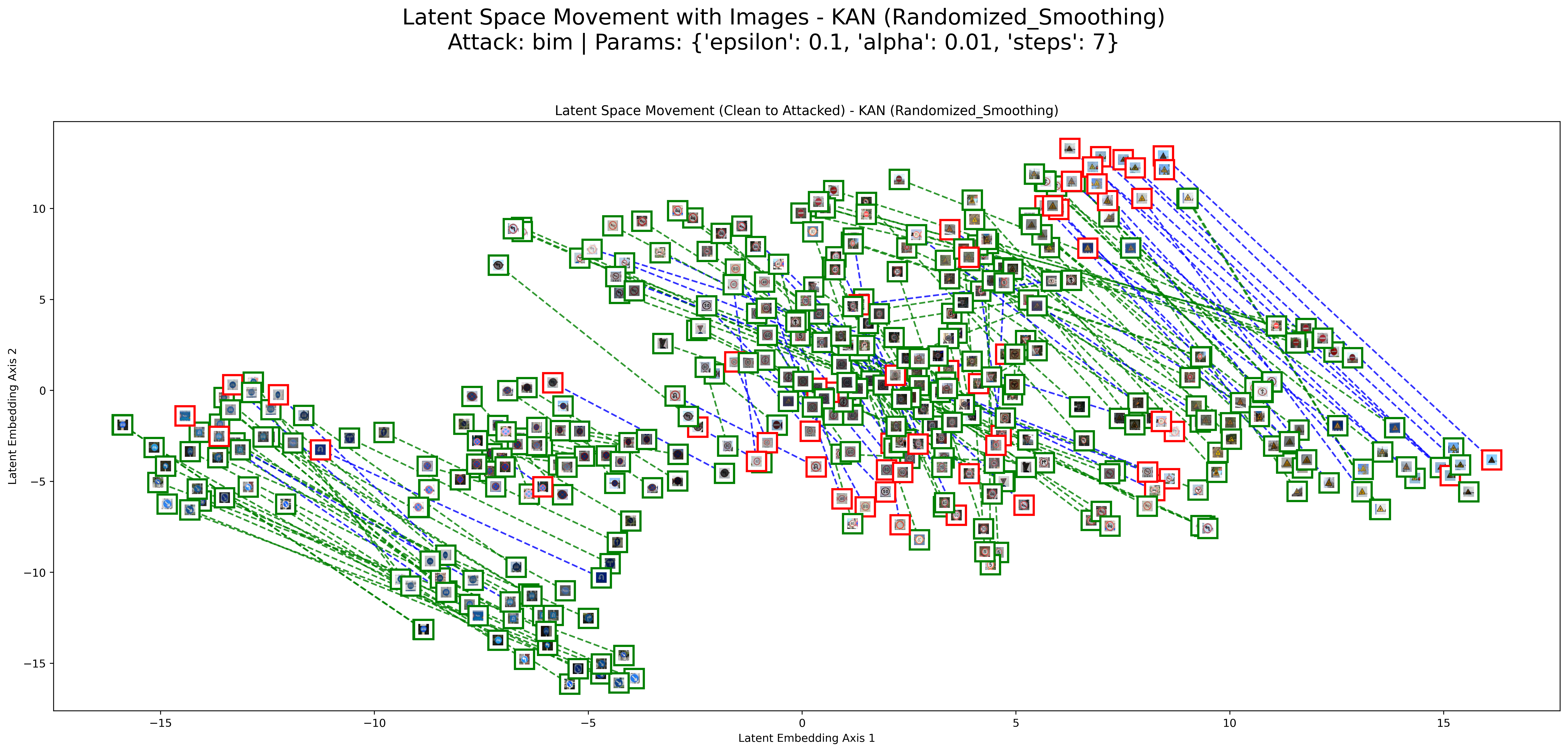

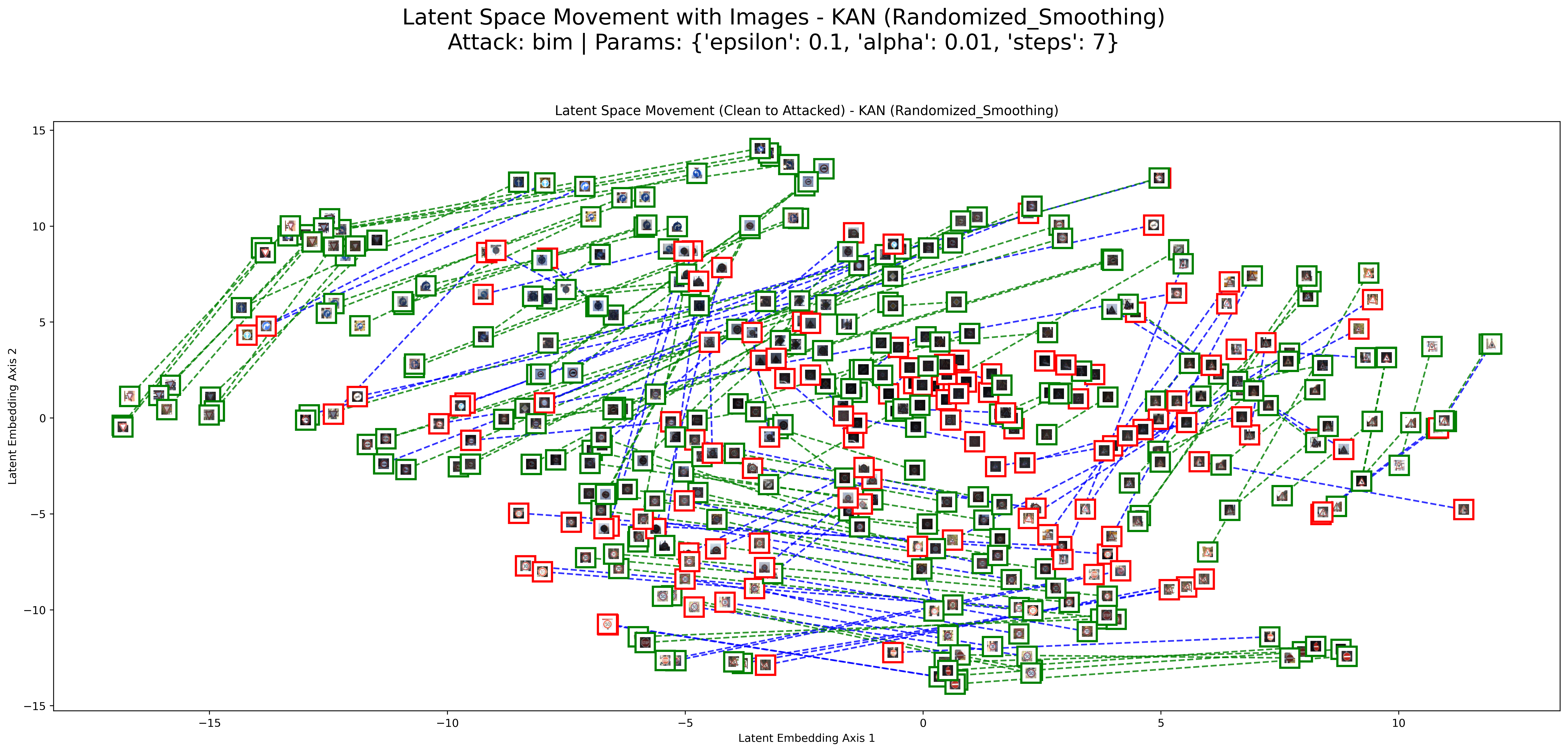

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

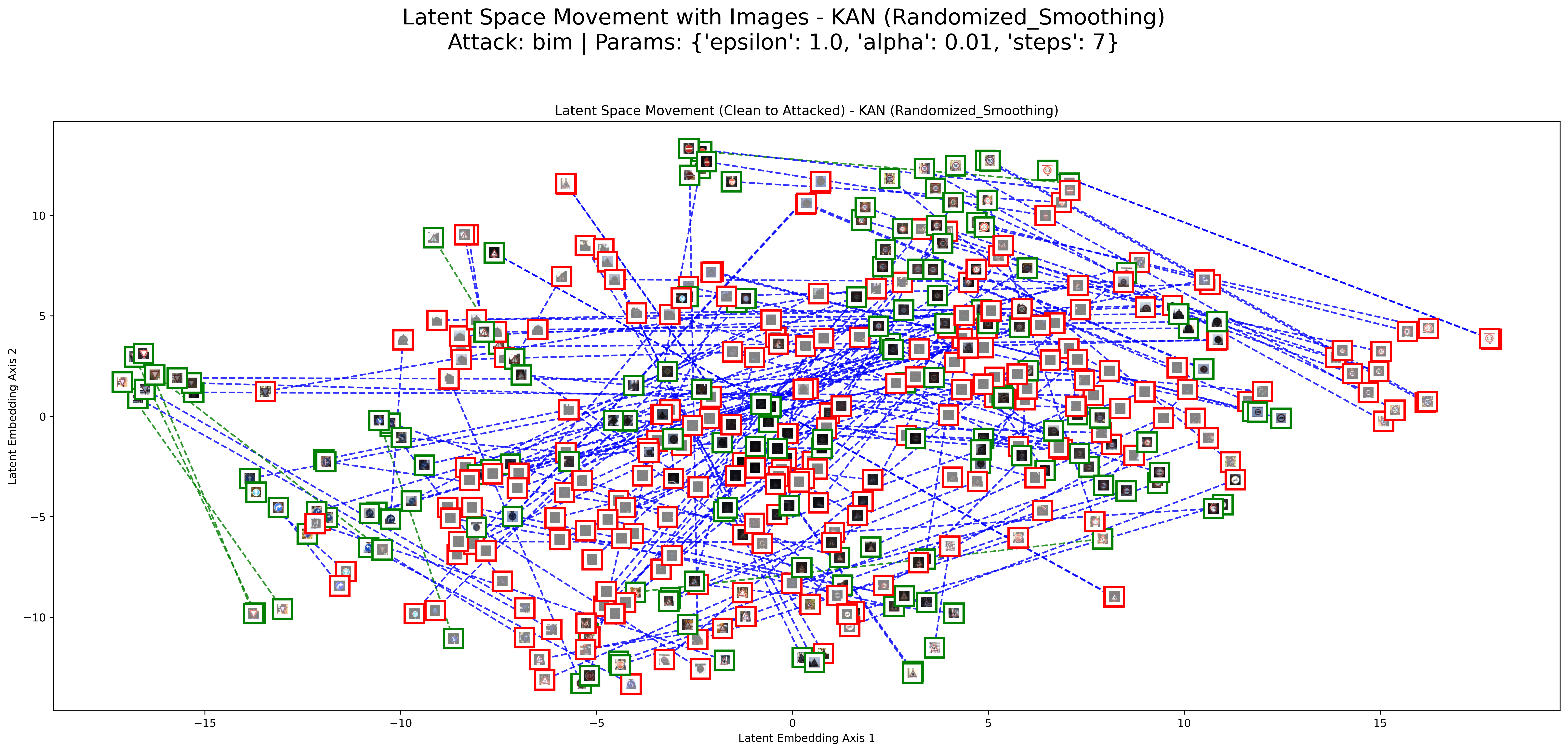

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

BIM Attack Results on KAN Model and CTSRB dataset

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

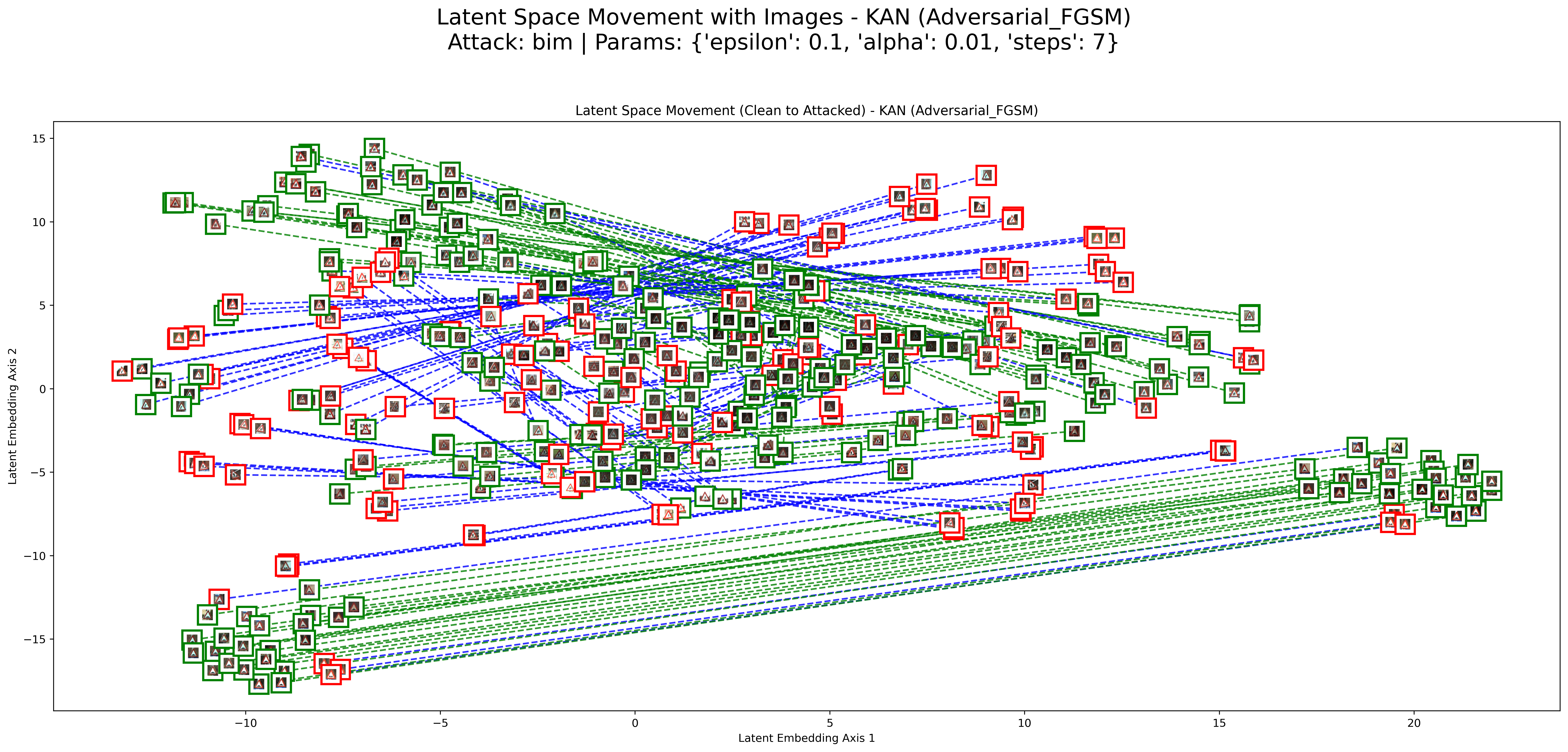

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

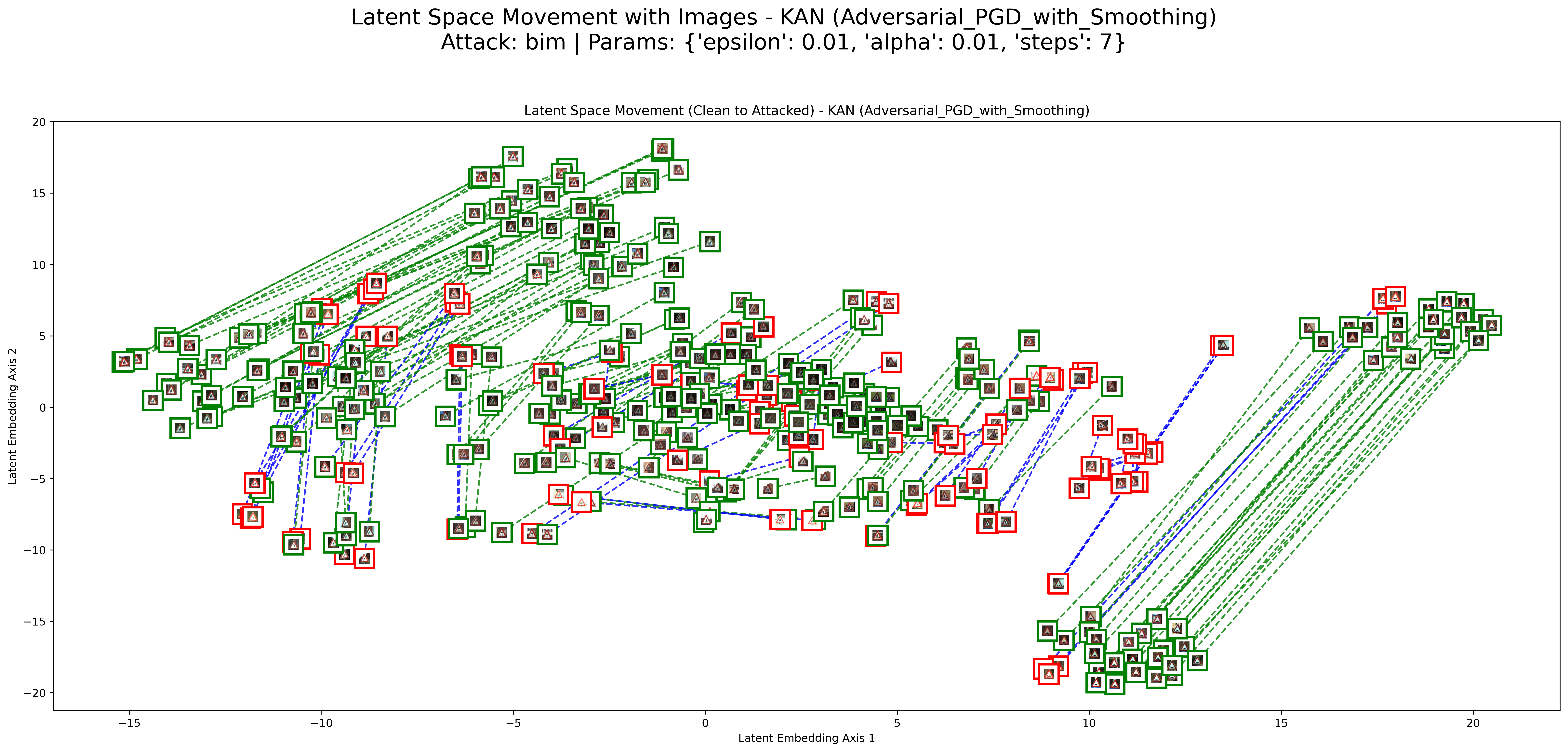

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

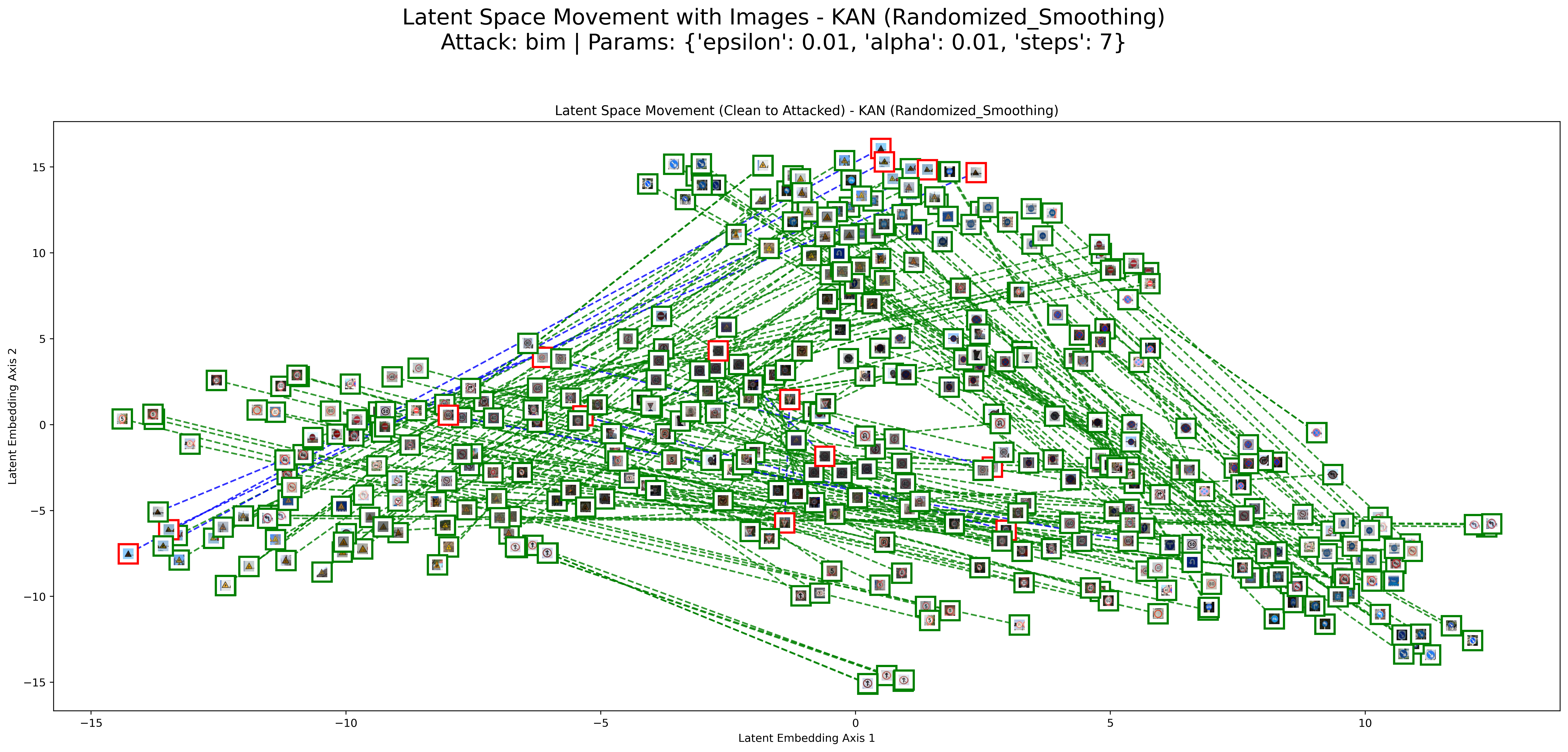

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

BIM Attack Results on KAN Model and GTSRB dataset

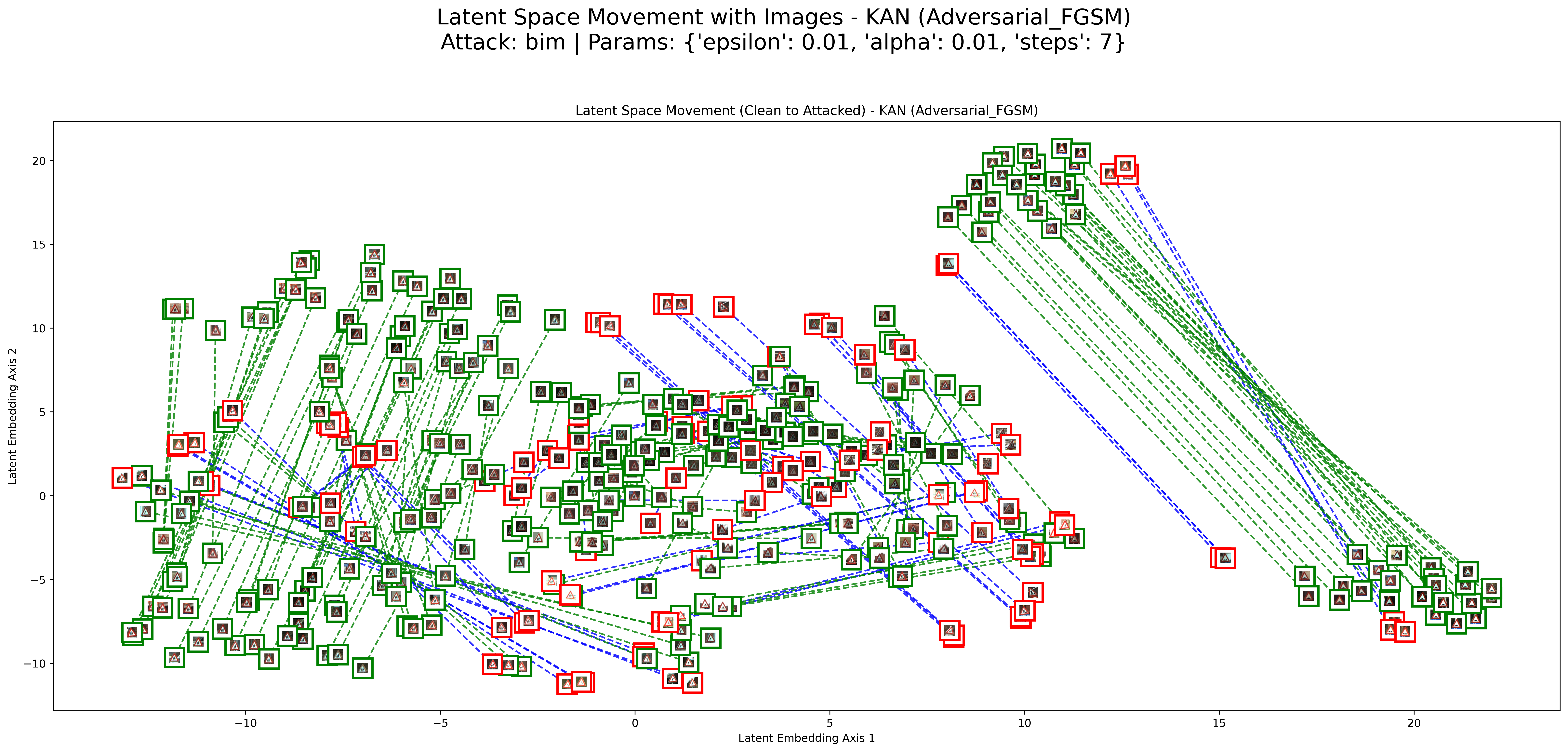

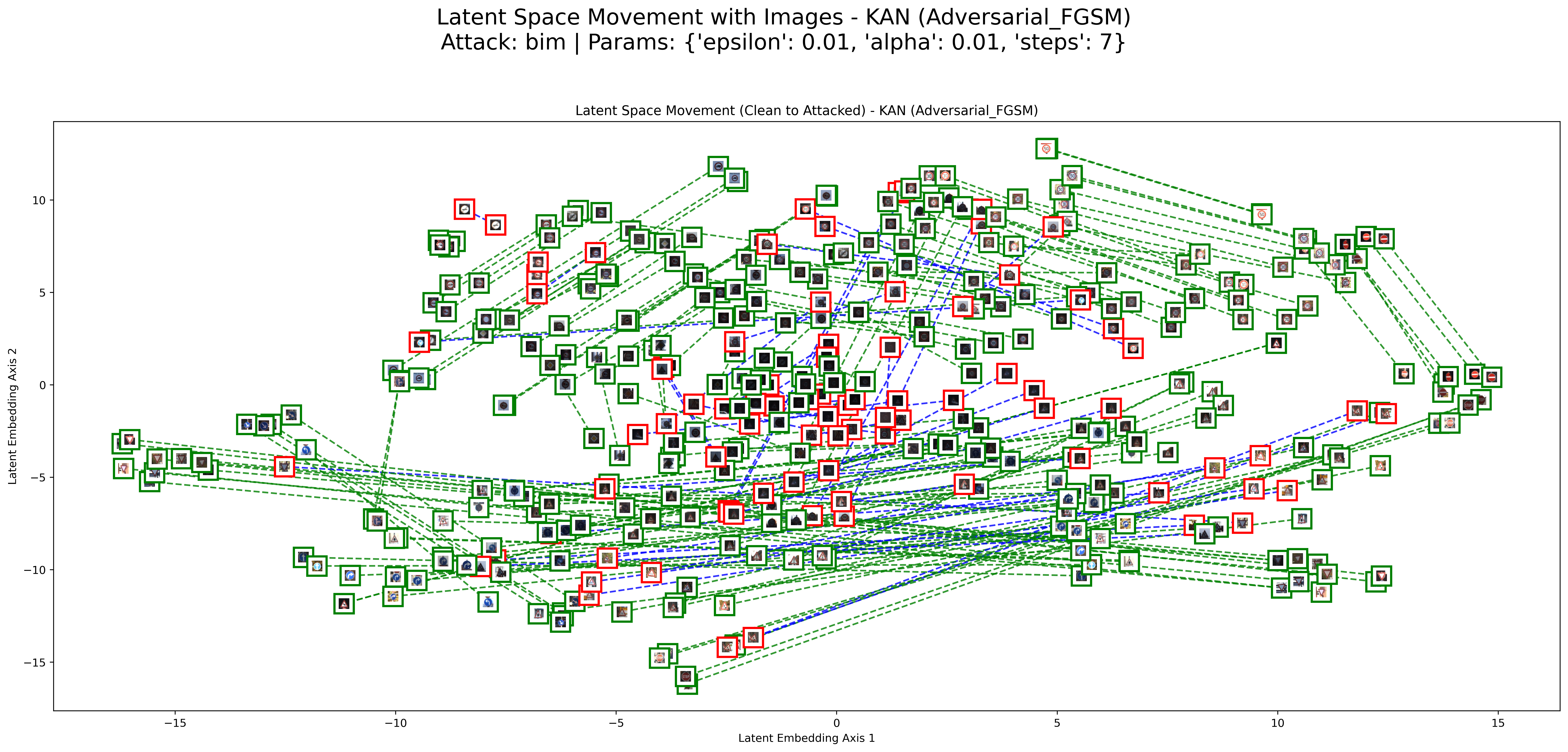

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

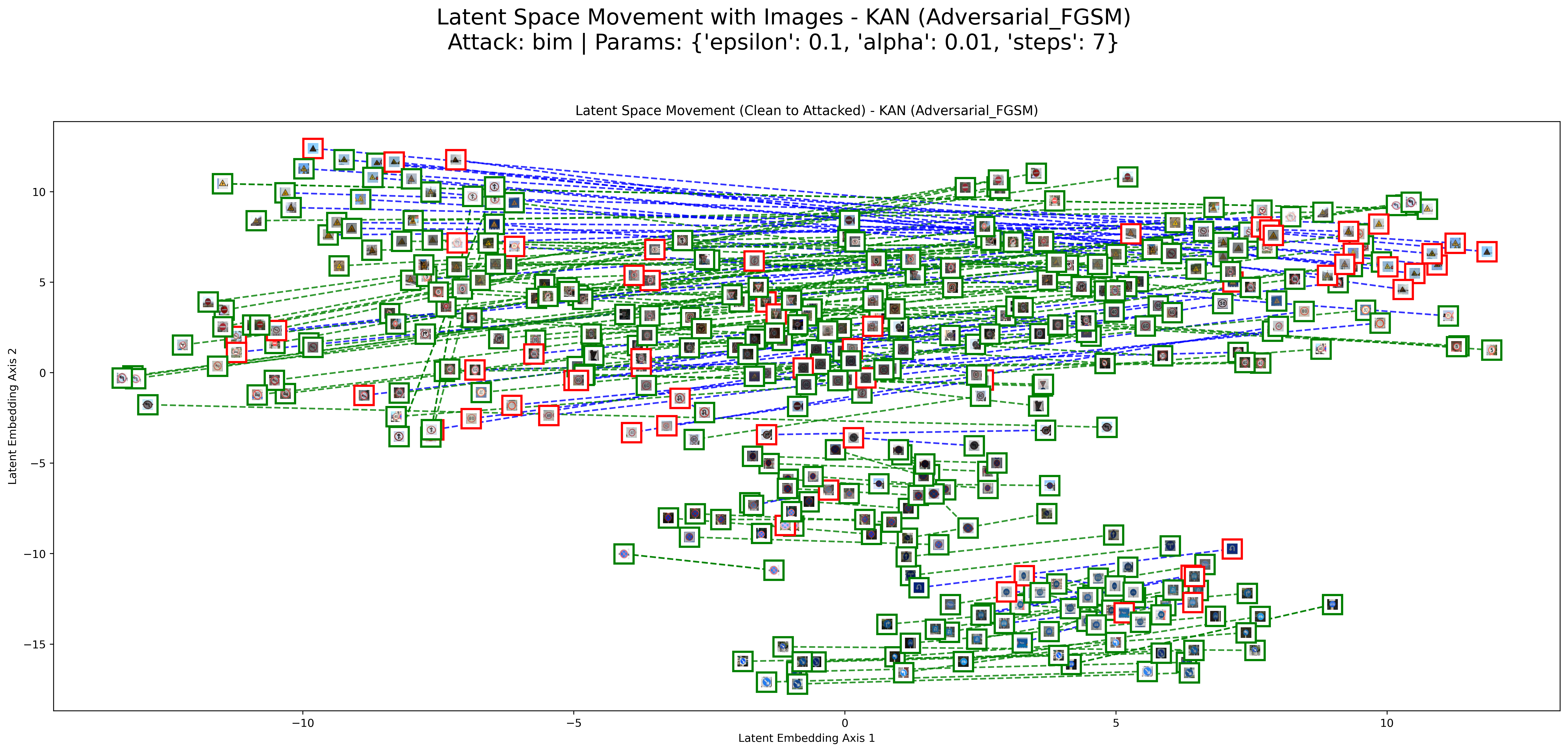

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

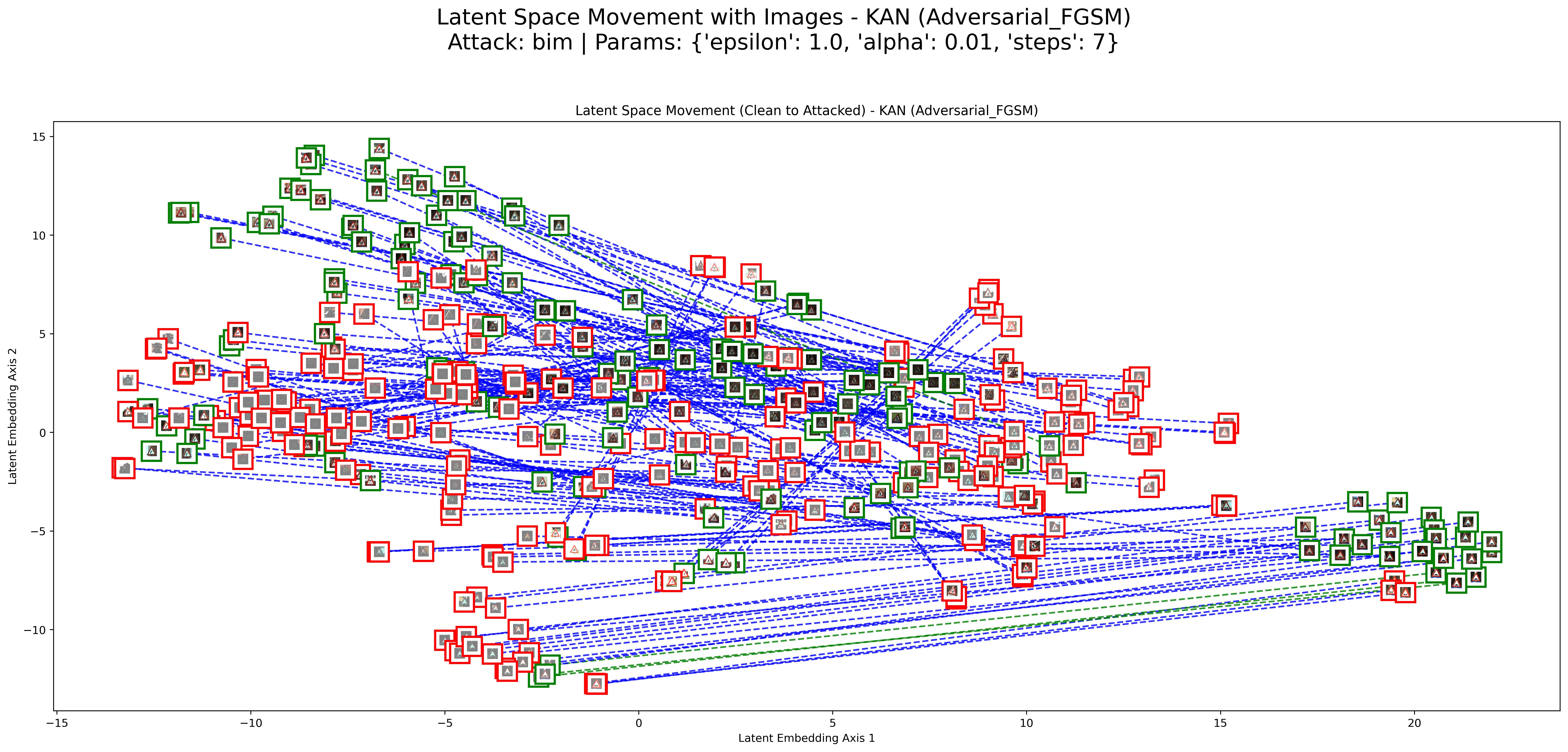

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

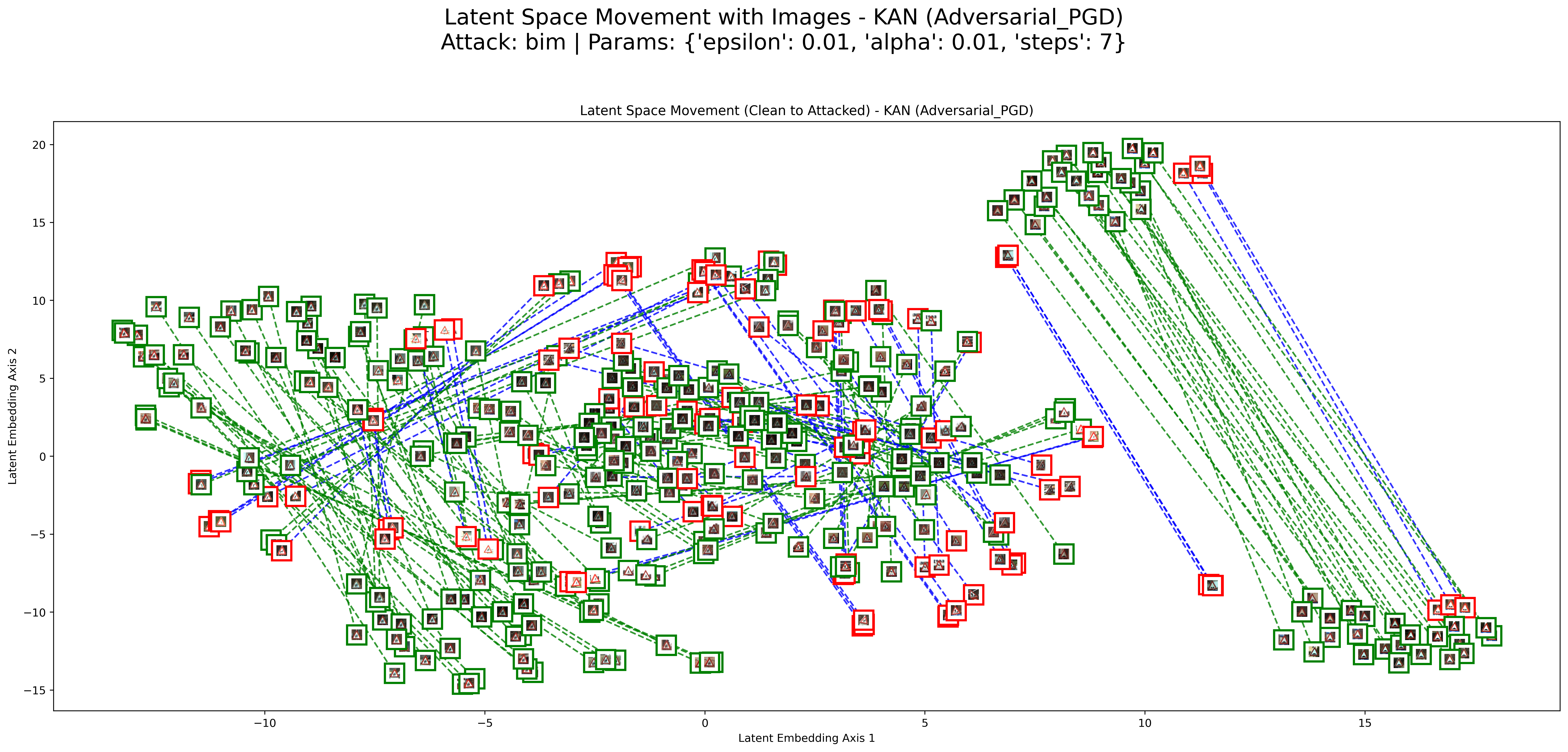

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

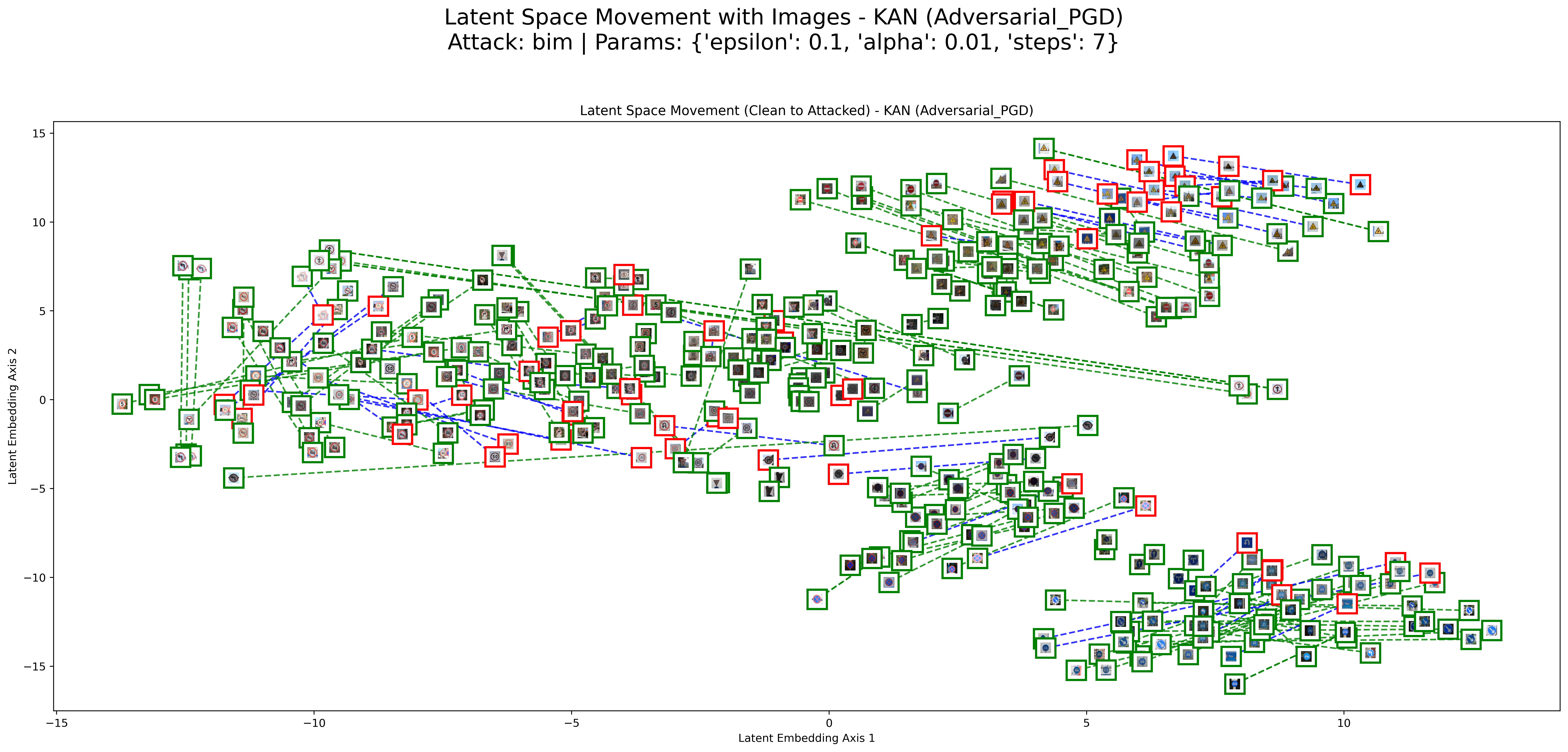

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

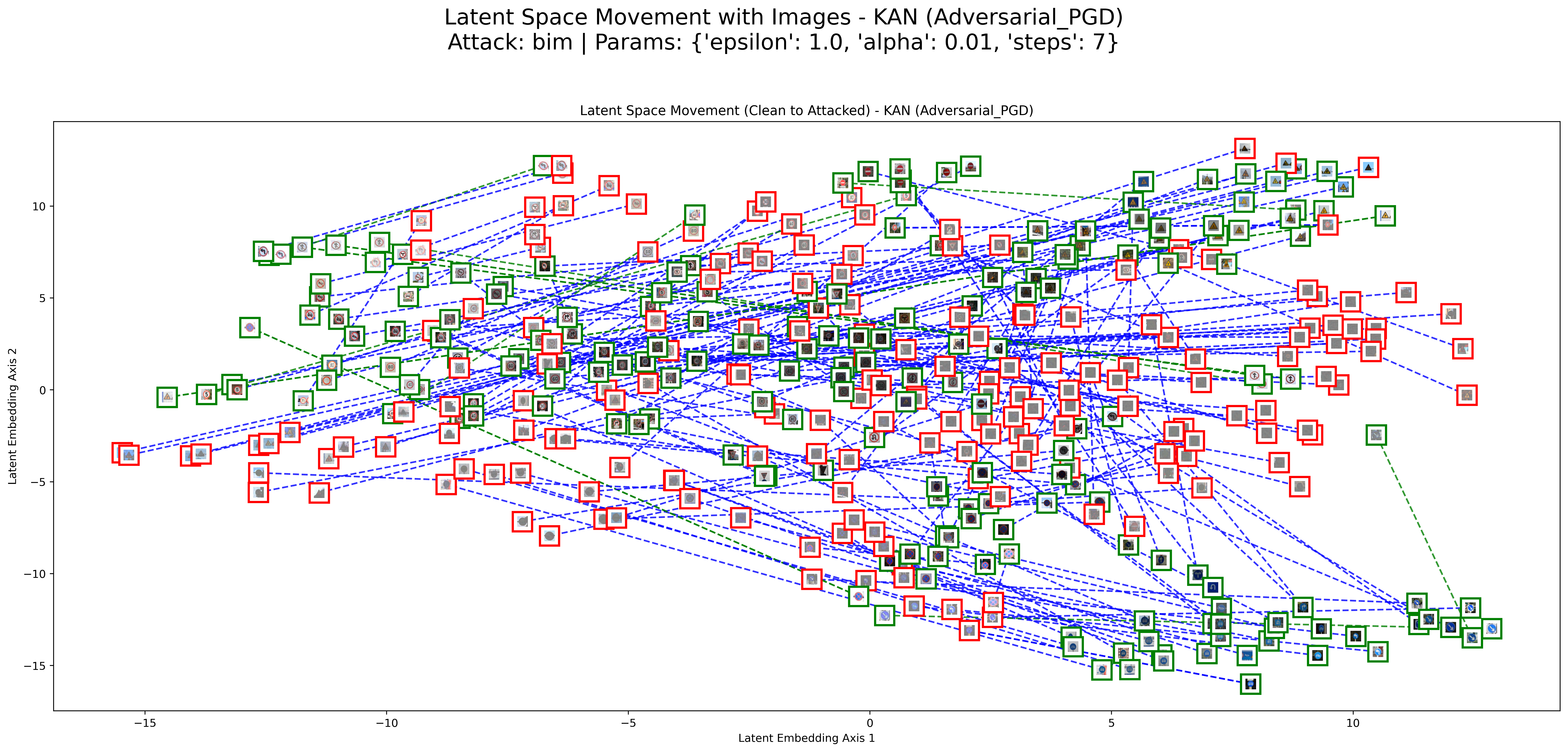

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

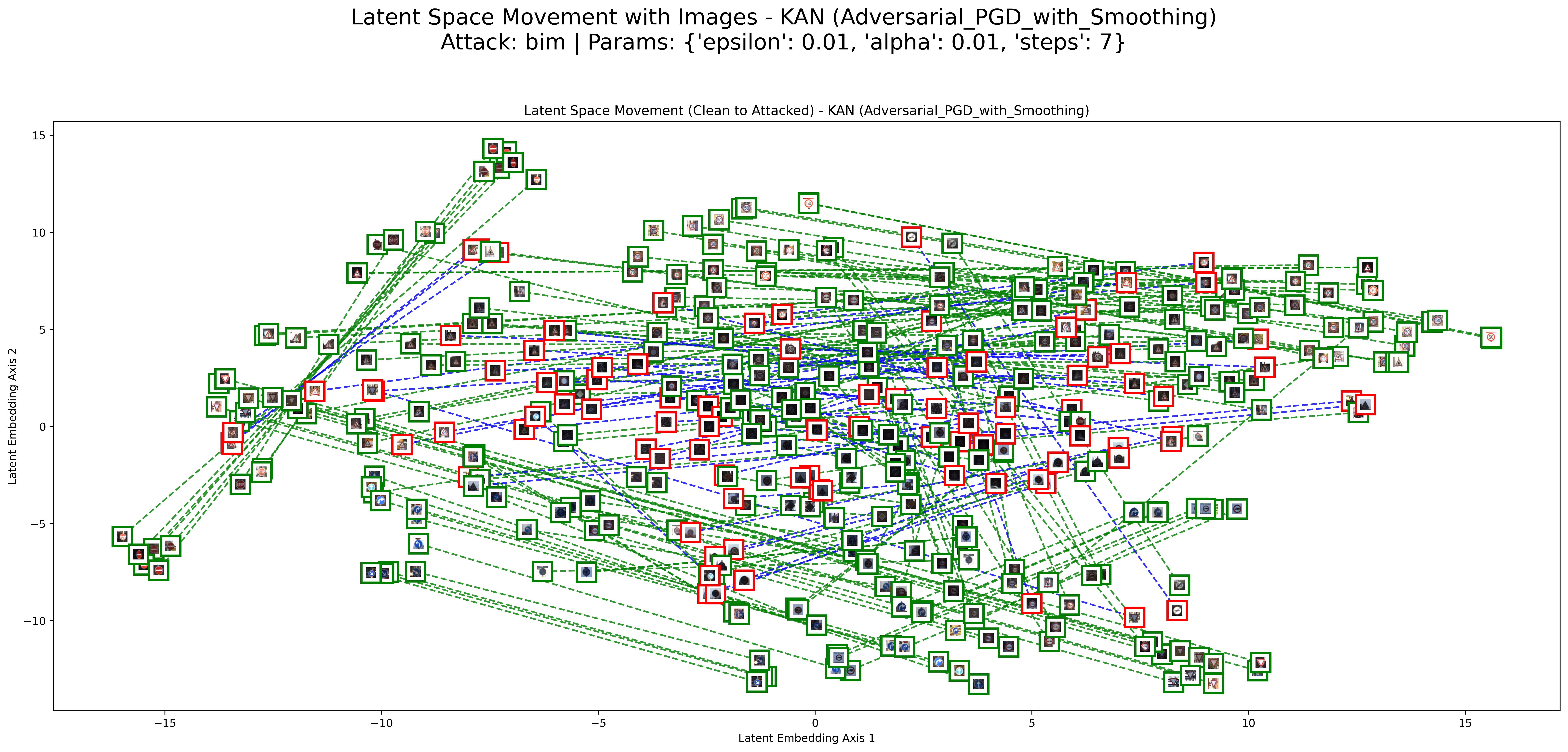

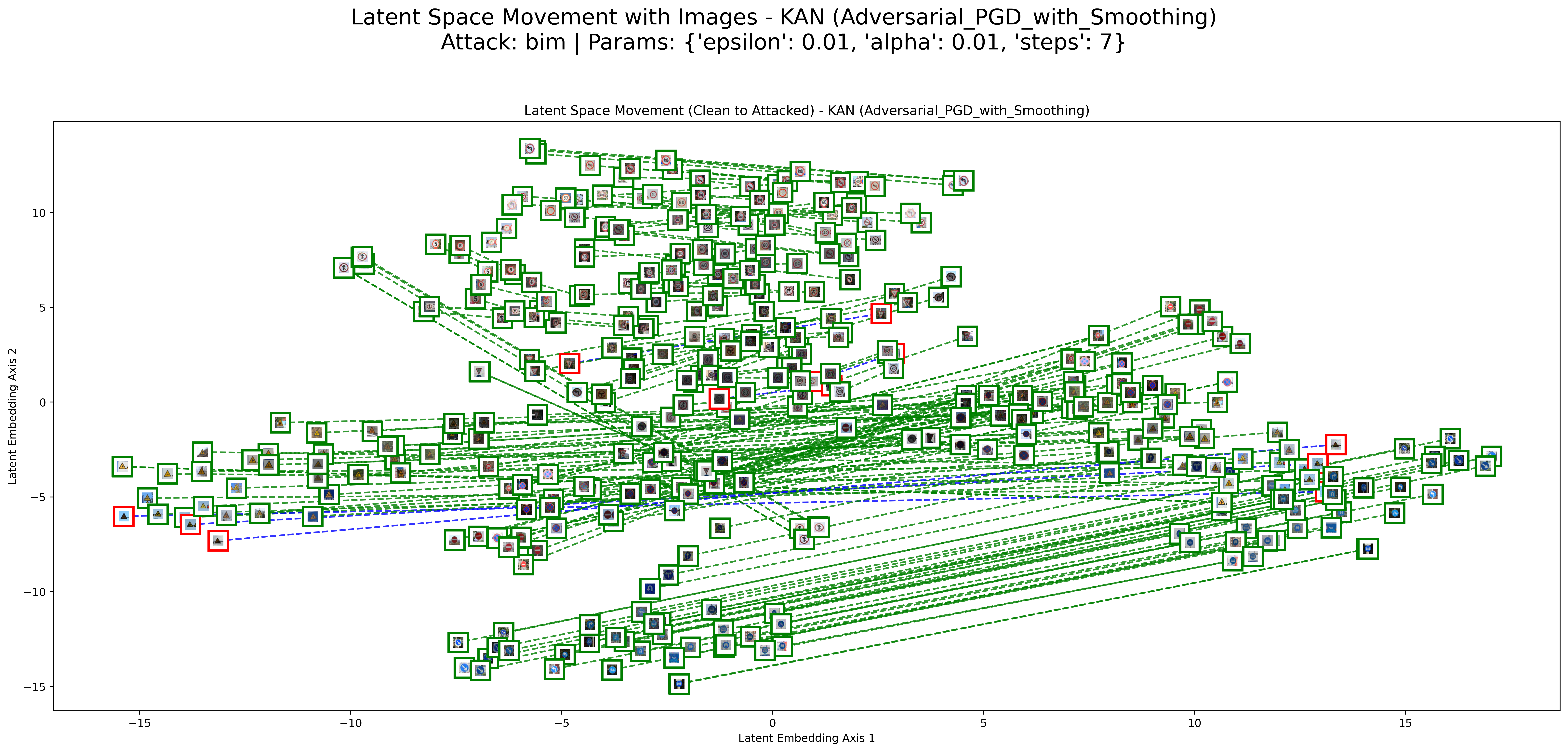

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

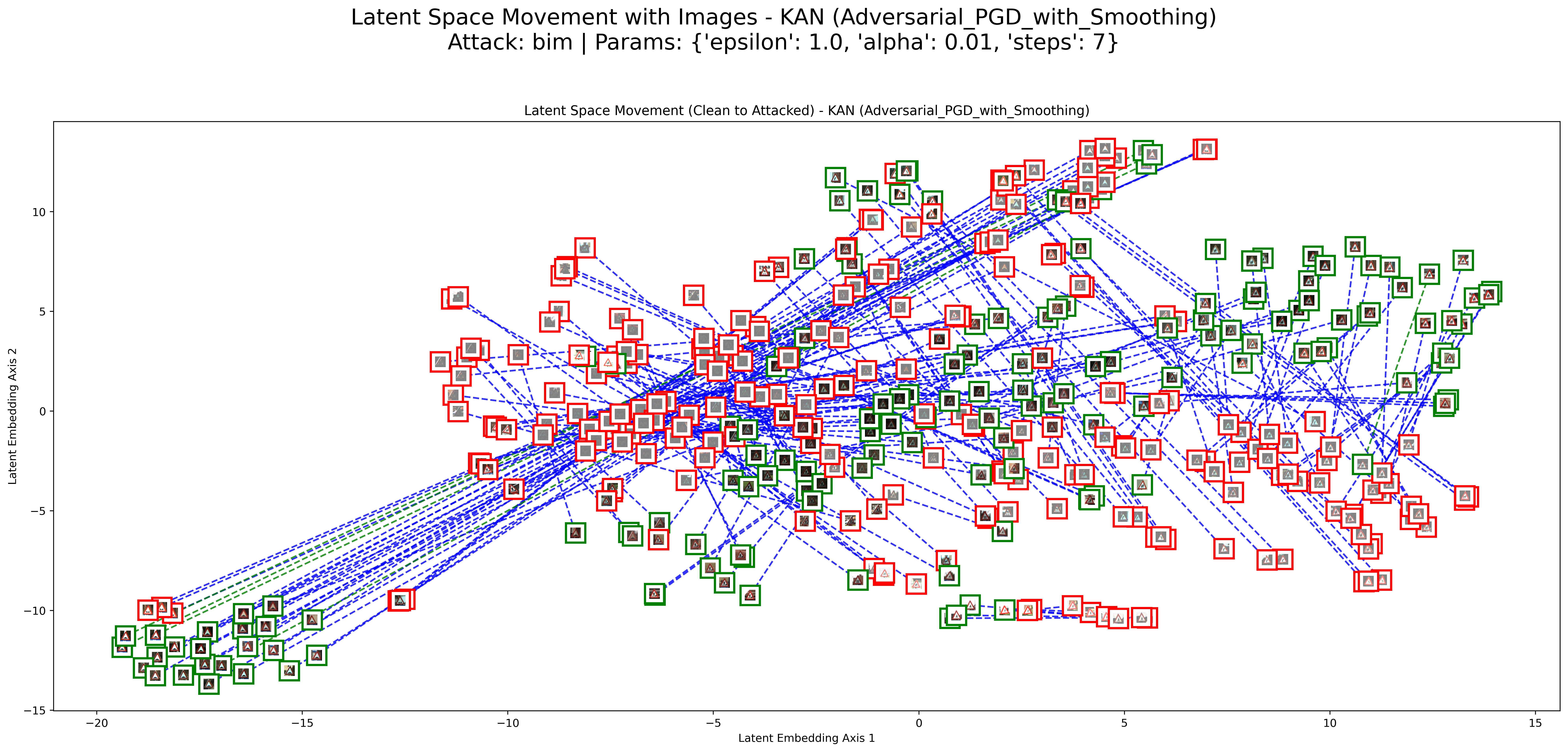

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

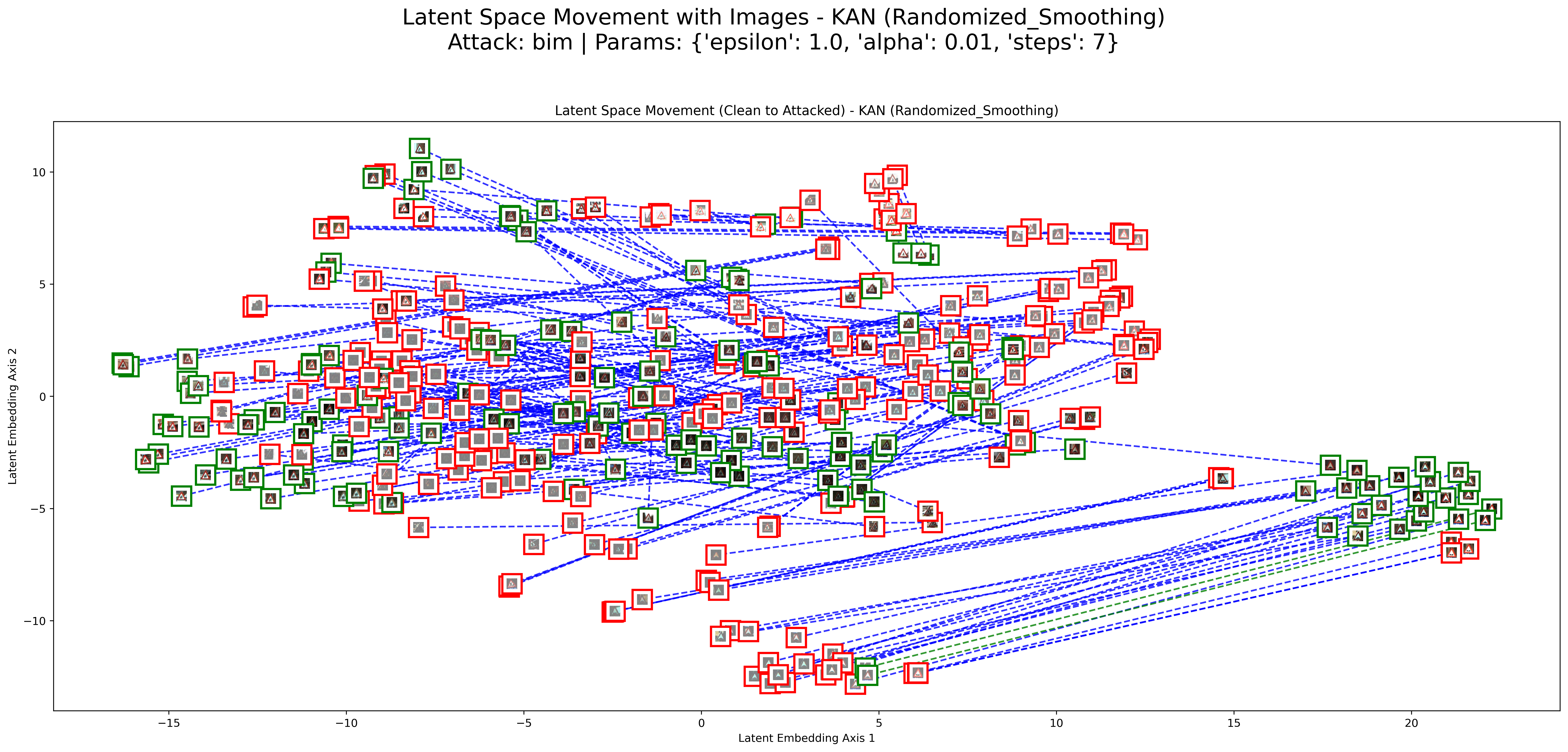

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

BIM Attack Results on MLP Model and BTSRB dataset

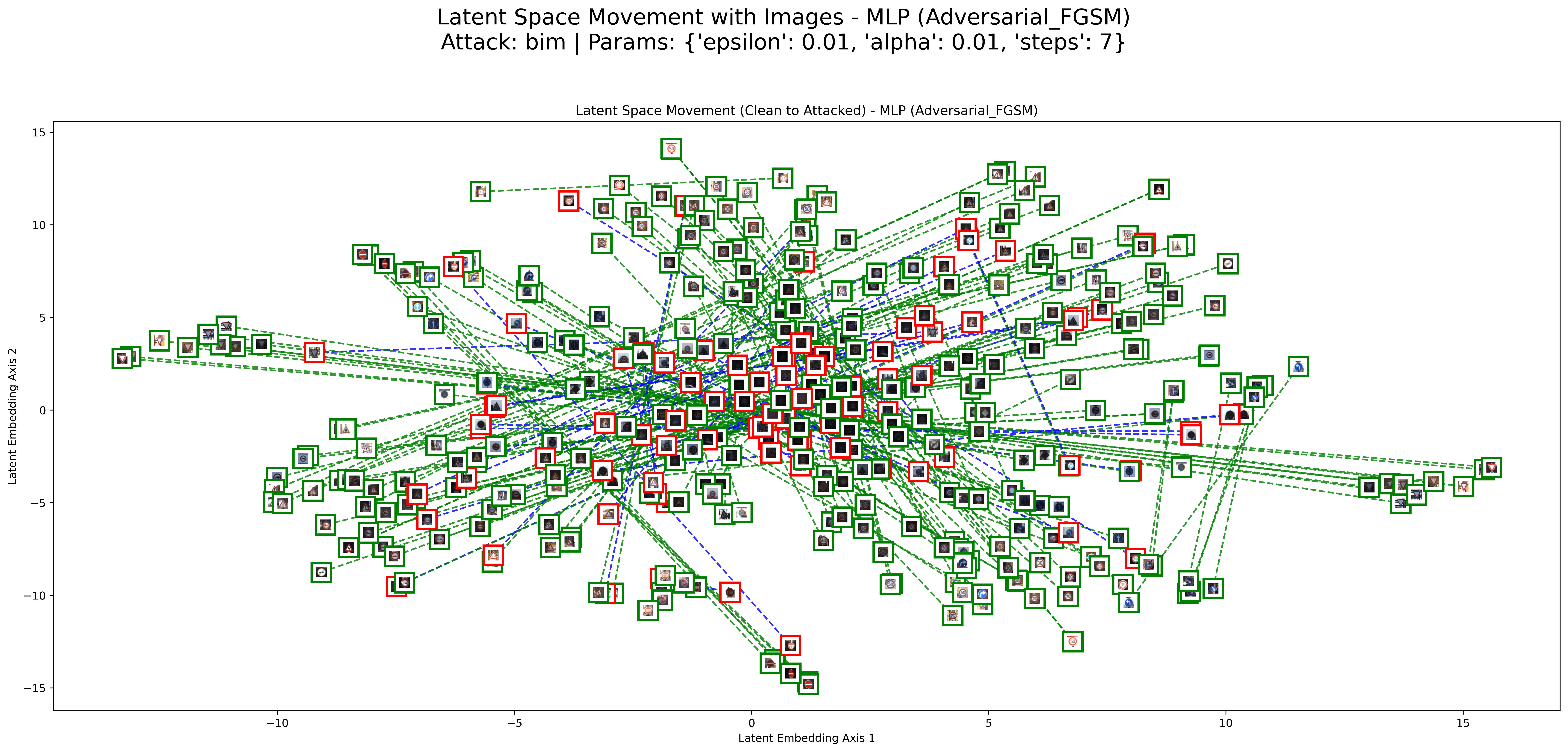

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

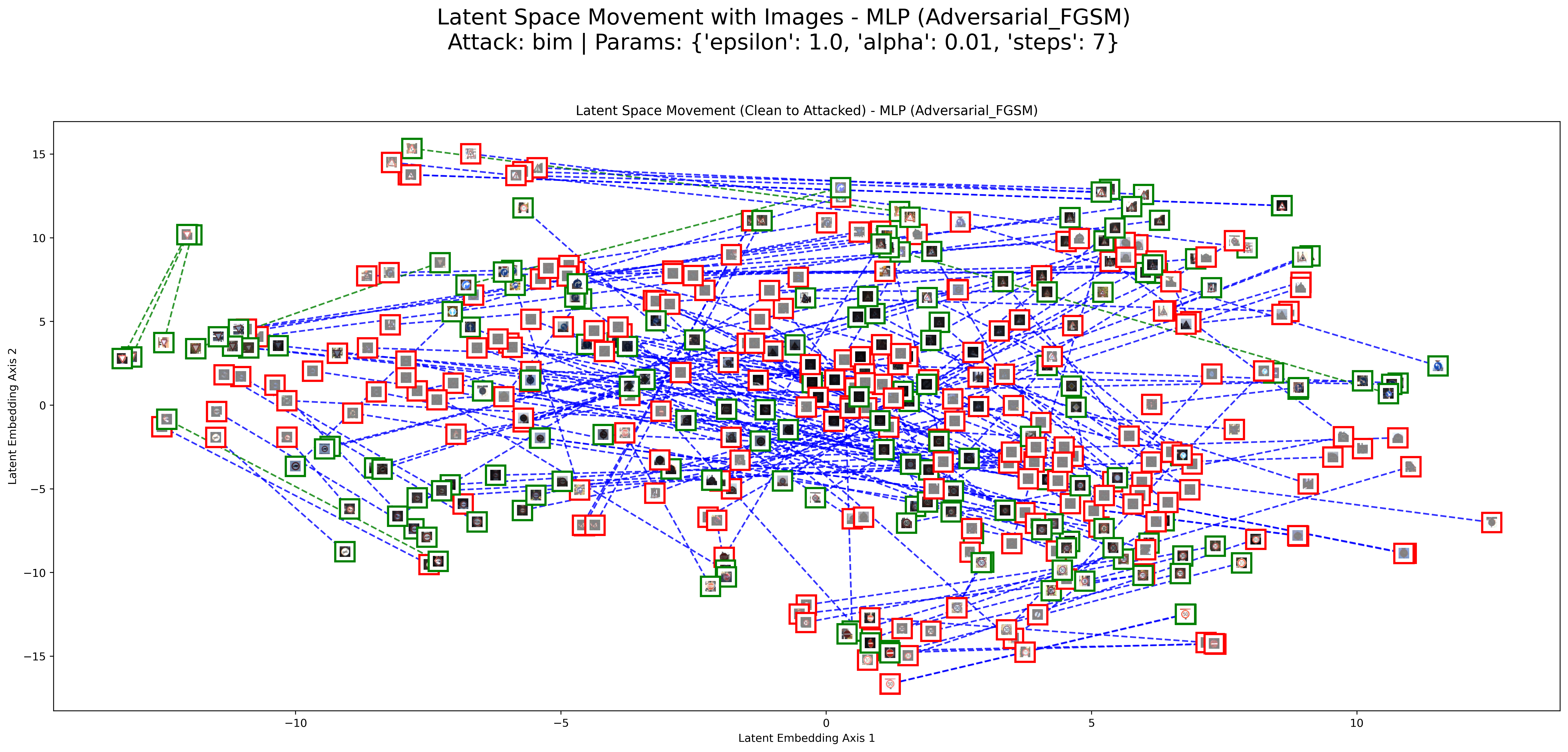

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

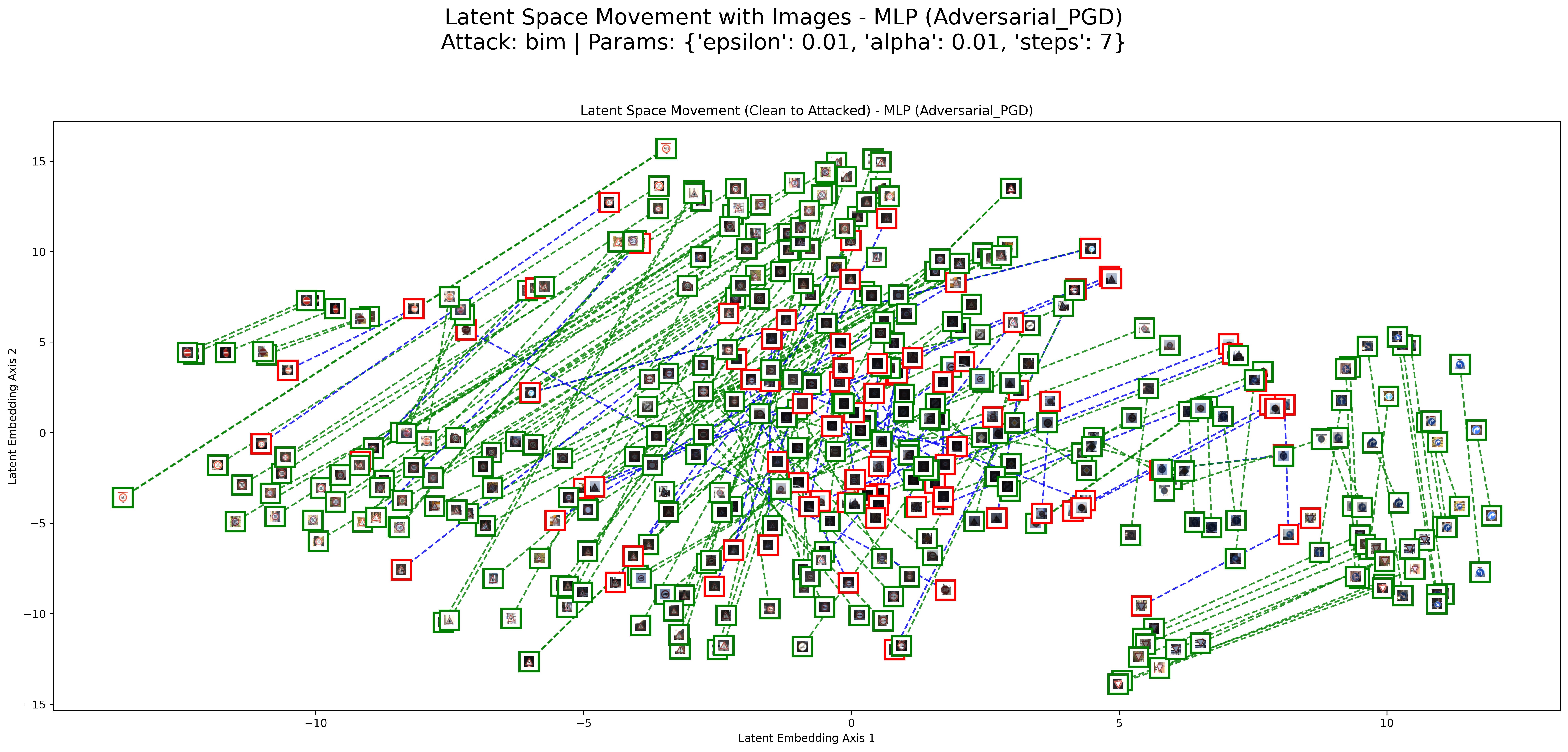

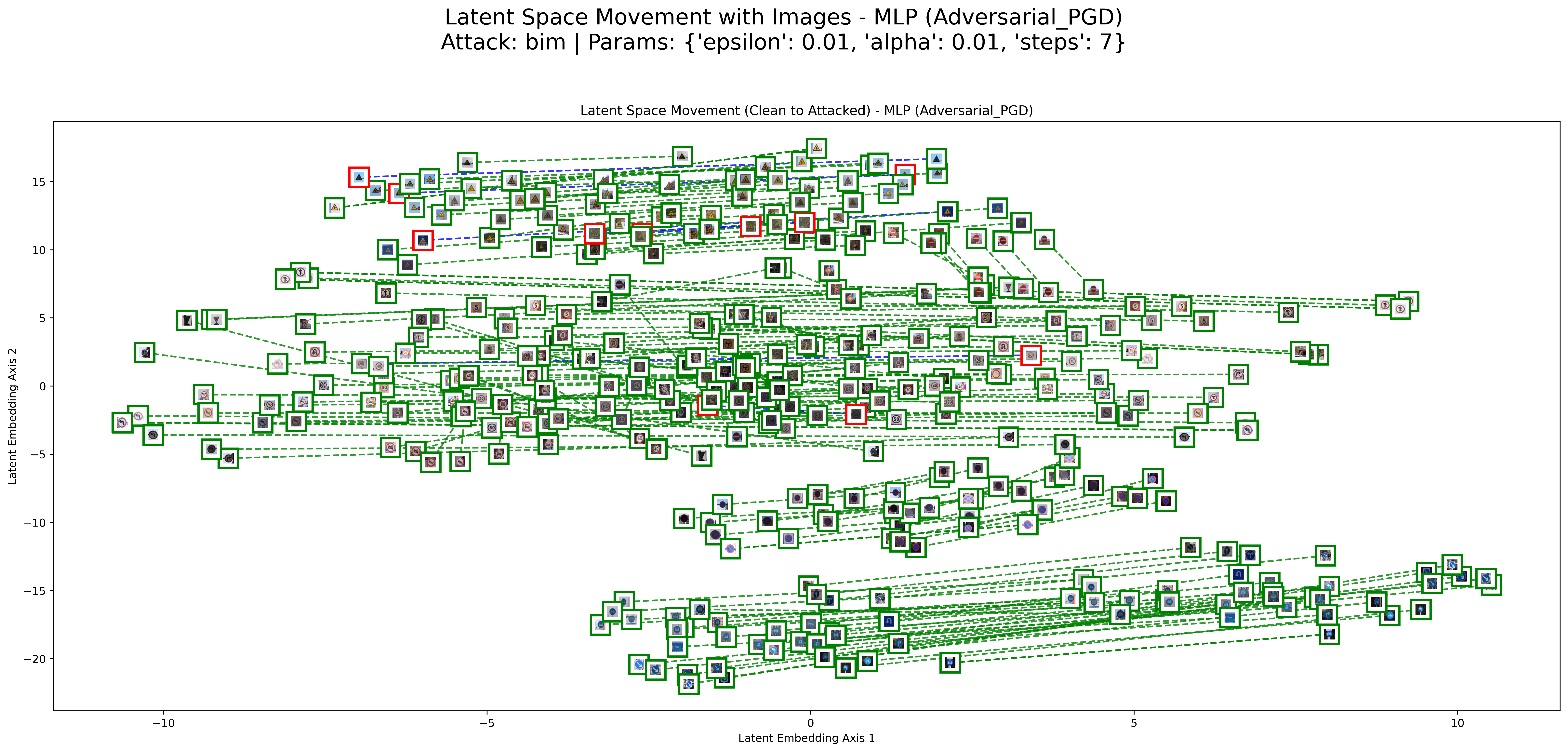

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

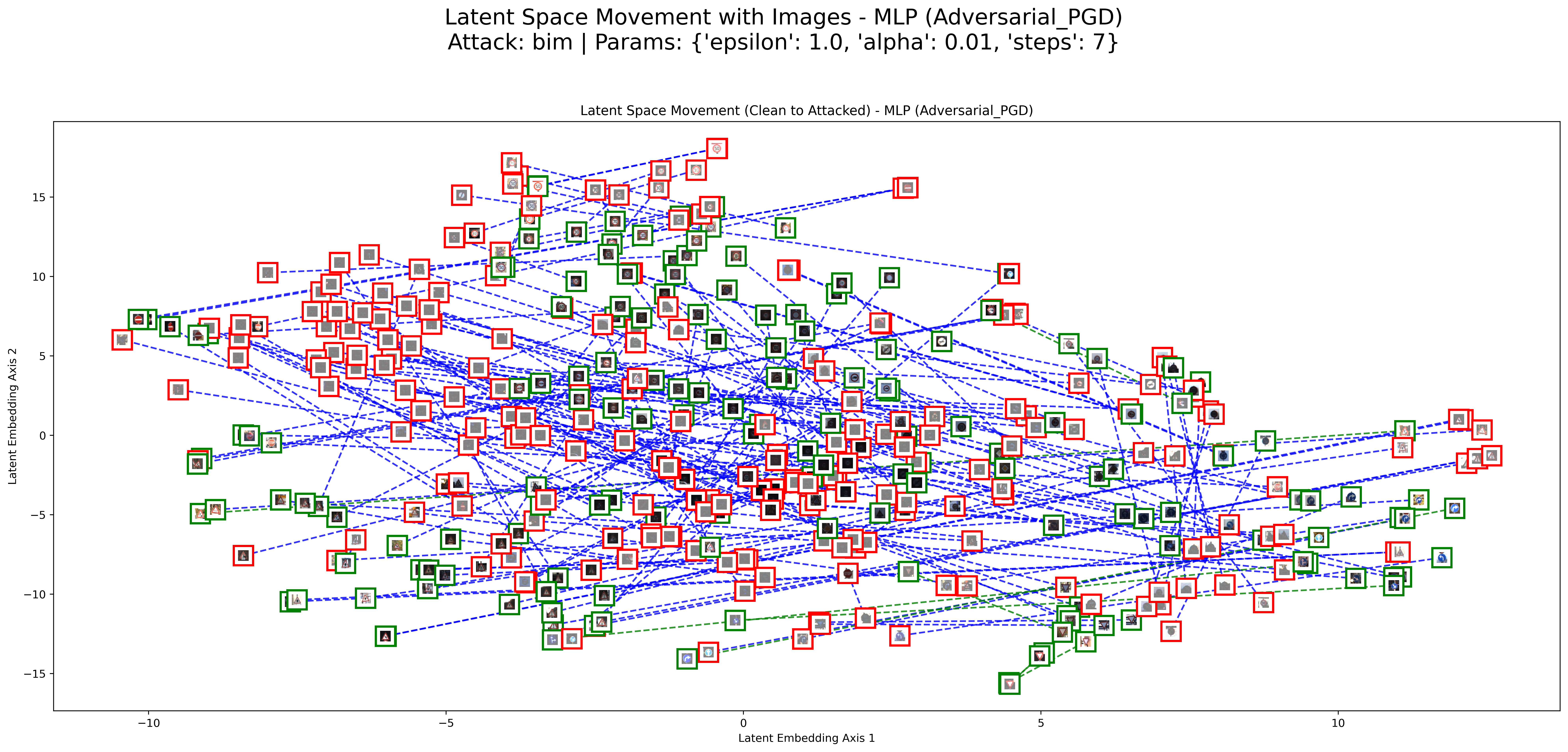

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

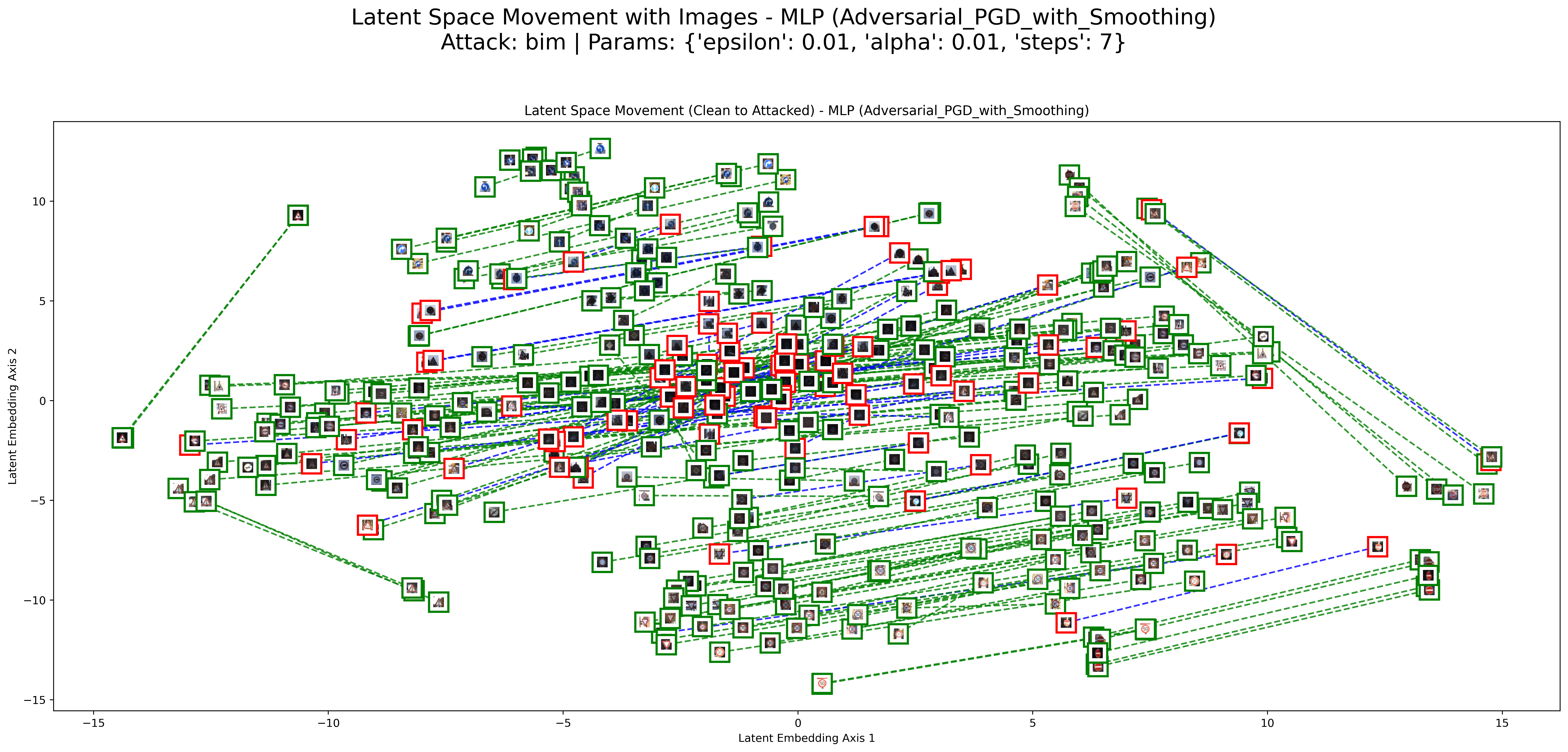

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

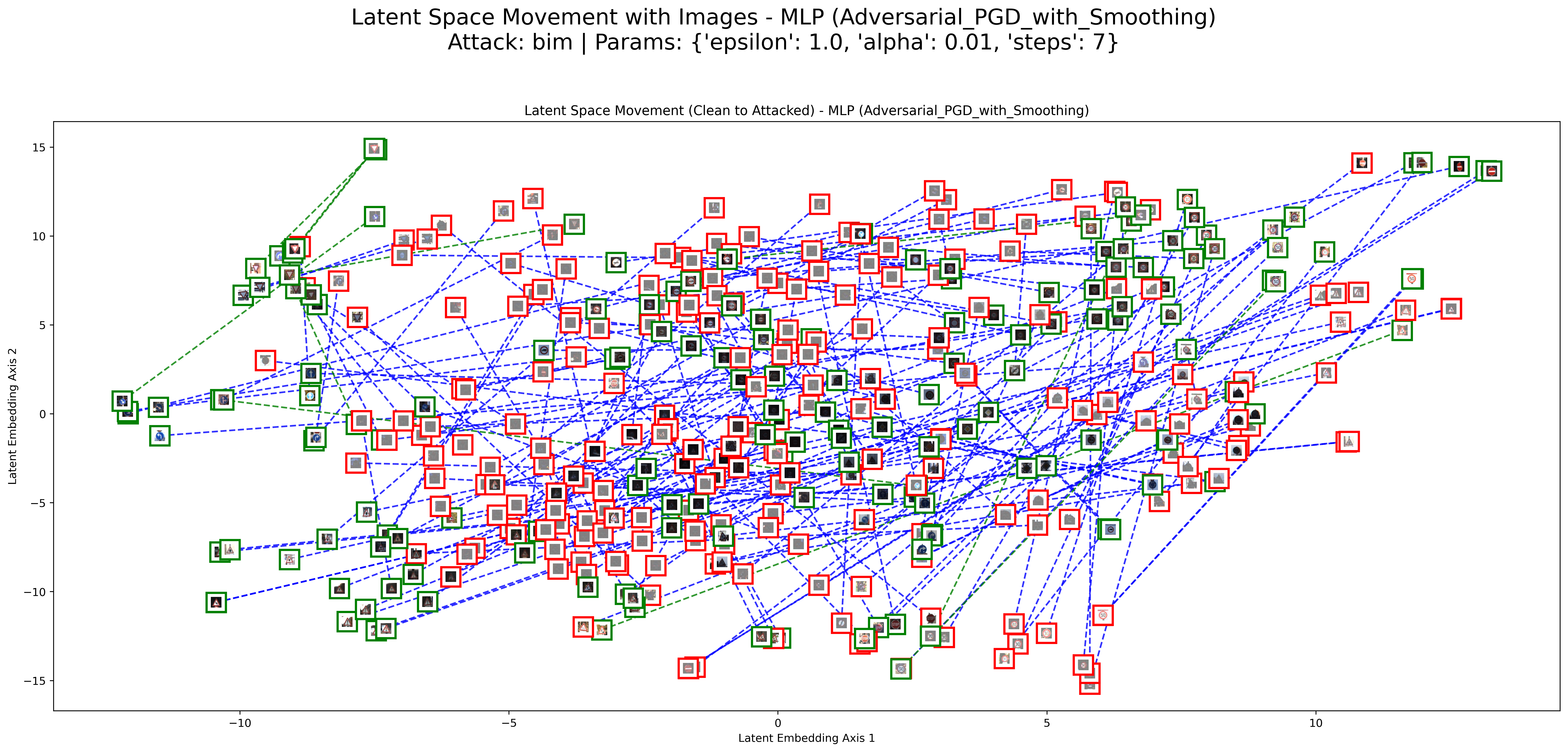

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

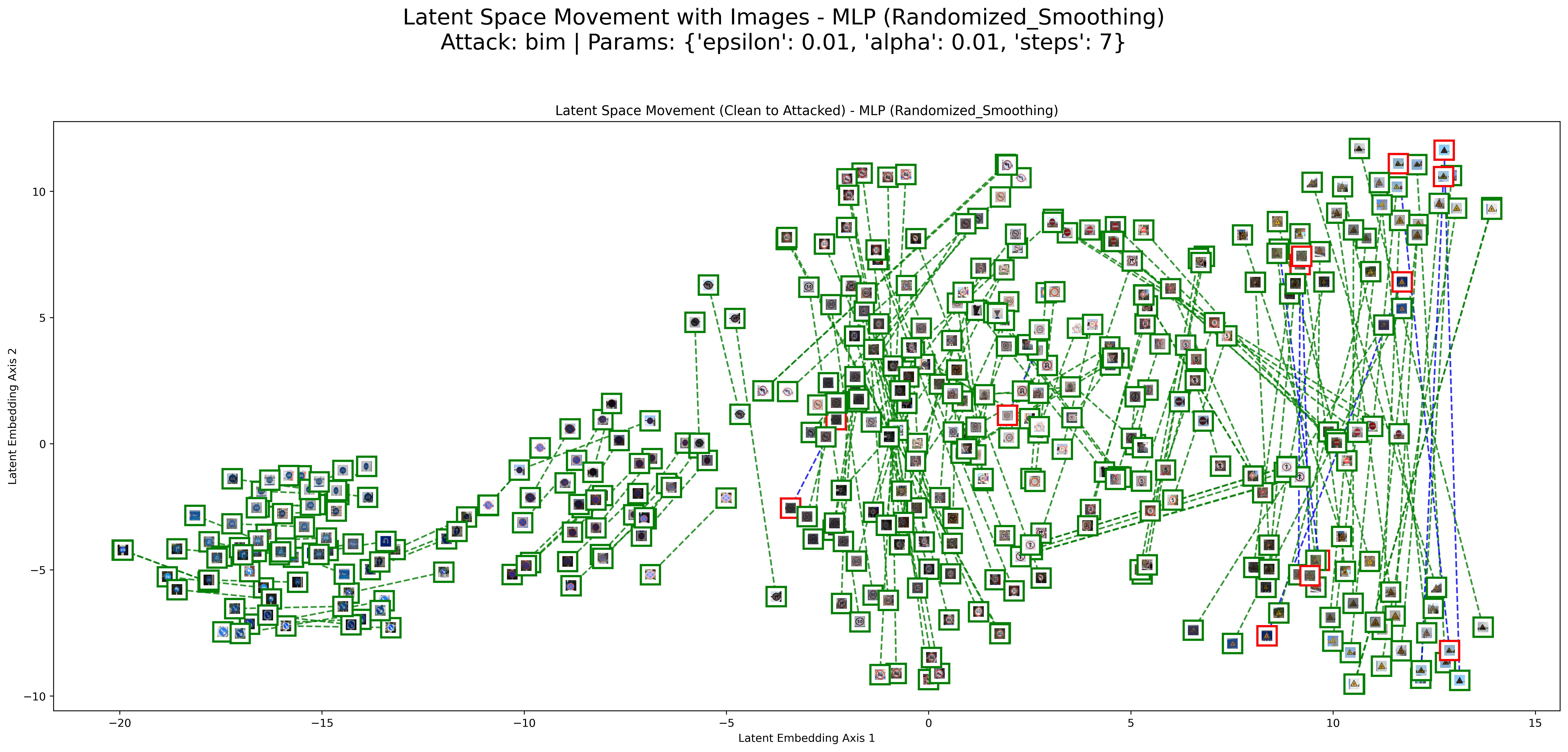

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

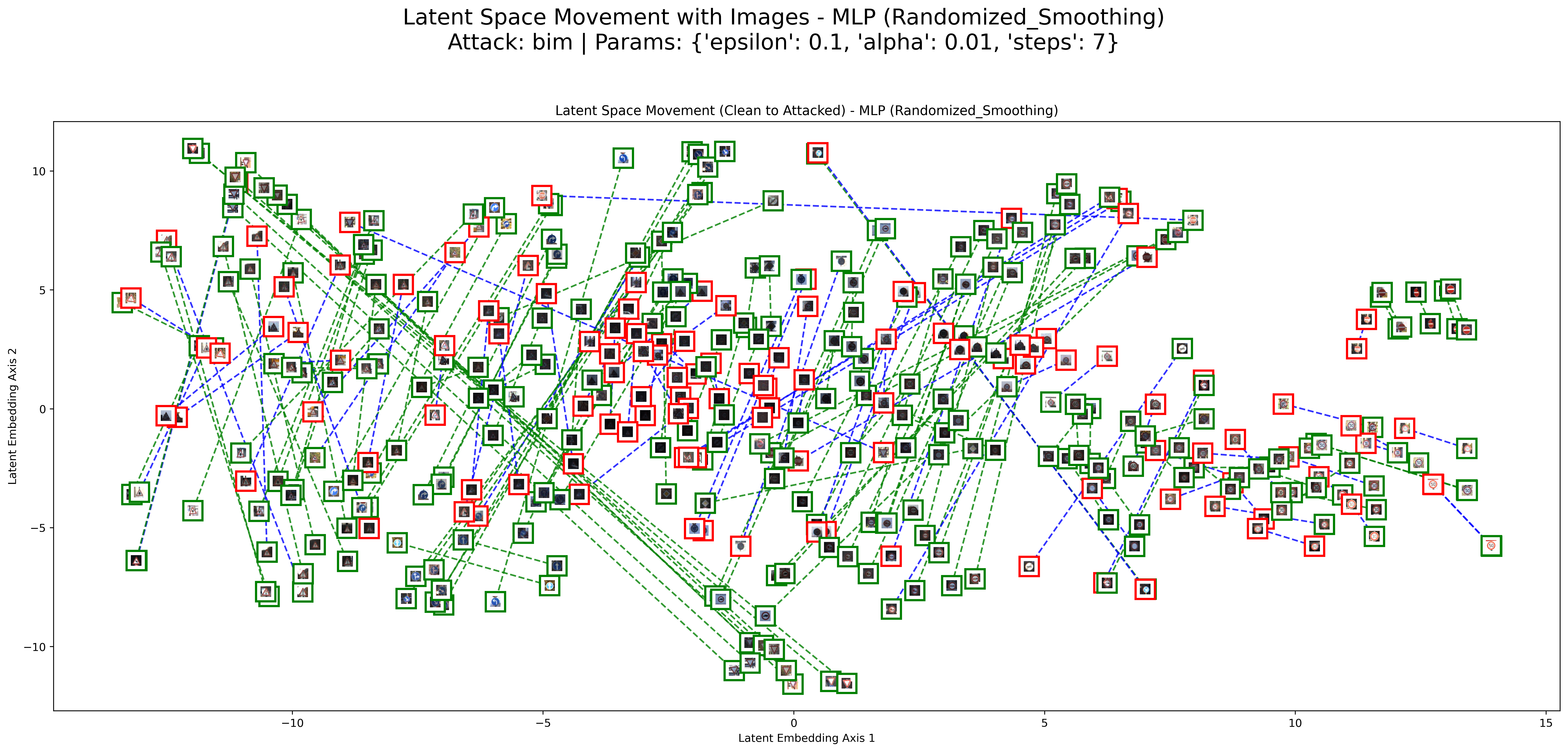

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

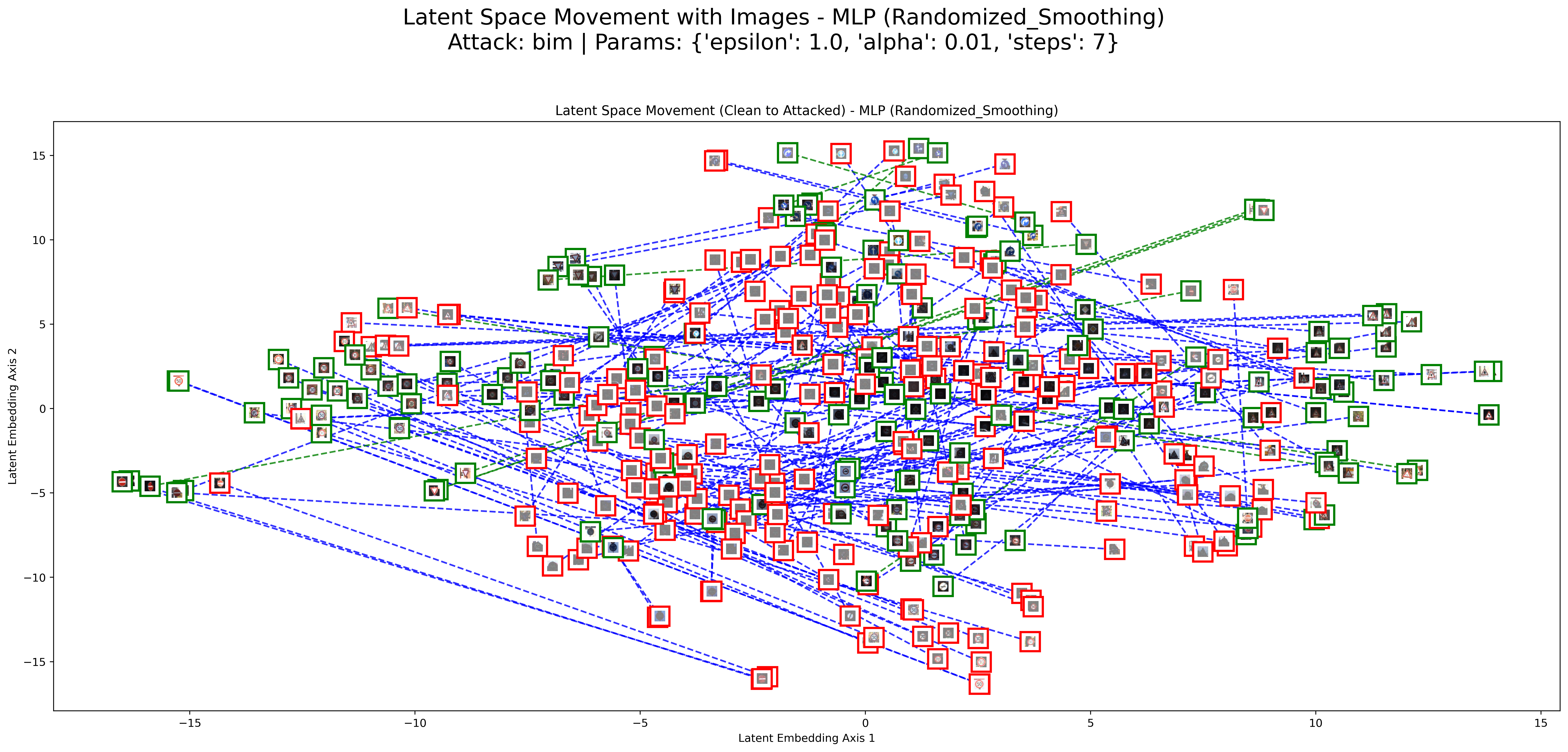

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

BIM Attack Results on MLP Model and CTSRB dataset

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

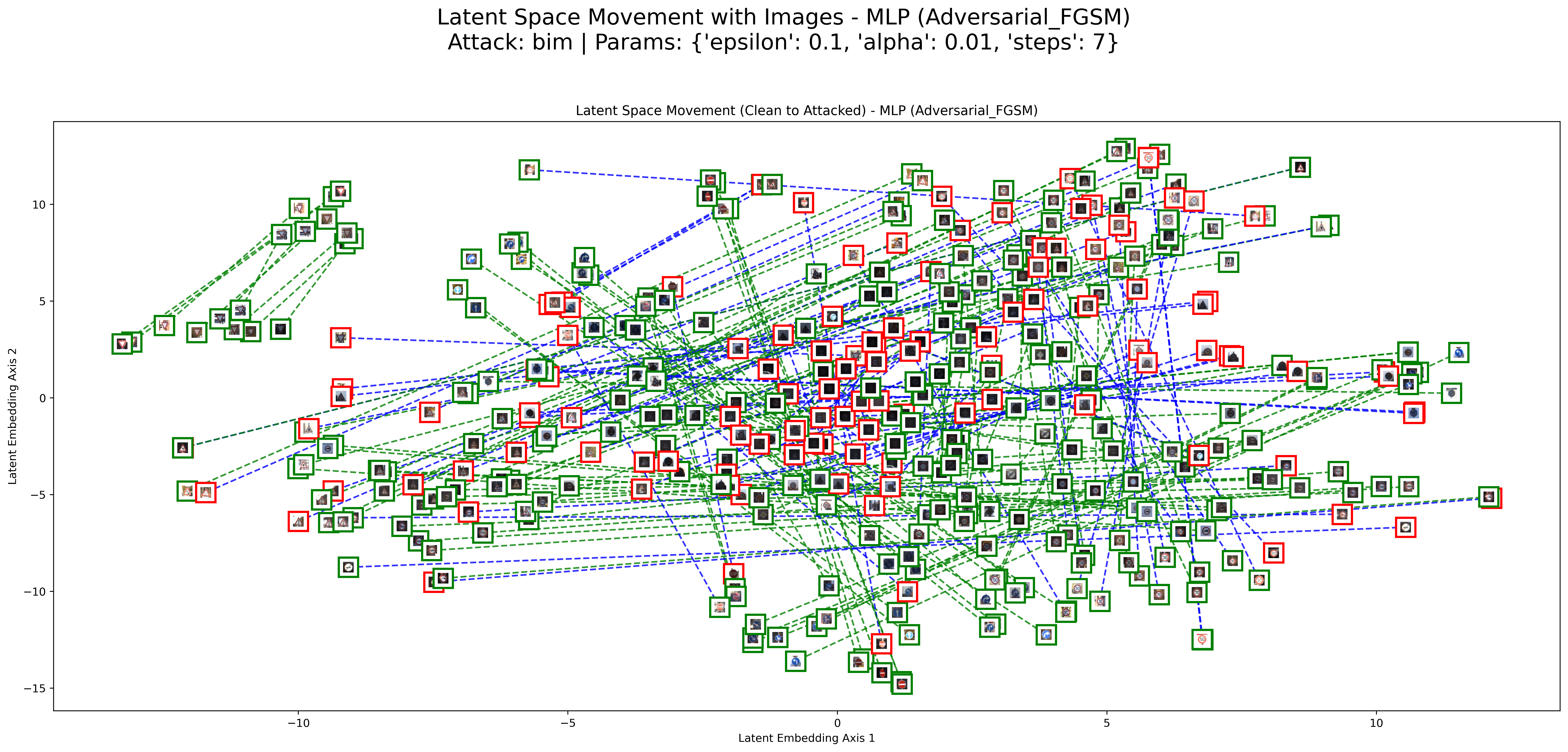

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

BIM Attack Results on MLP Model and GTSRB dataset

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH BIM Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under BIM with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Model	Dataset	Training Type	Attack Type	Epsilon (ε)	Alpha (α)	Num Iter	Accuracy	Success Rate	Degree of Change	Evaluation Samples
KAN	GTSRB	Standard	PGD	0.01	0.01	7	25.5	54	14.81653881	200 Samples
MLP	GTSRB	Standard	PGD	0.01	0.01	7	38	44.5	14.8165369	200 Samples
KAN	BTSRB	Standard	PGD	0.01	0.01	7	26.5	49.5	13.48466778	200 Samples
MLP	BTSRB	Standard	PGD	0.01	0.01	7	36	38	13.48466492	200 Samples
KAN	CTSRD	Standard	PGD	0.01	0.01	7	38	59	10.73444843	200 Samples
MLP	CTSRD	Standard	PGD	0.01	0.01	7	50	48	10.73444462	200 Samples
KAN	GTSRB	Standard	PGD	0.01	0.01	7	26.04908947	53.99049881		Full Test Set
MLP	GTSRB	Standard	PGD	0.01	0.01	7	34.11718131	49.90498812		Full Test Set
KAN	BTSRB	Standard	PGD	0.1	0.01	7	11.5	67	14.86472416	200 Samples
MLP	BTSRB	Standard	PGD	0.1	0.01	7	16.5	65	14.86374474	200 Samples
KAN	CTSRD	Standard	PGD	0.1	0.01	7	14	60.5	13.52961063	200 Samples
MLP	CTSRD	Standard	PGD	0.1	0.01	7	25.5	48.5	13.52859592	200 Samples
KAN	GTSRB	Standard	PGD	1	0.01	7	3.5	77	17.87055397	200 Samples
MLP	GTSRB	Standard	PGD	1	0.01	7	5.5	76	17.84584808	200 Samples
KAN	GTSRB	Standard	PGD	1	0.01	7	2.16152019	76.9517023		Full Test Set
MLP	GTSRB	Standard	PGD	1	0.01	7	4.893111639	77.30007918		Full Test Set

PGD Attack Results on KAN Model and BTSRB dataset

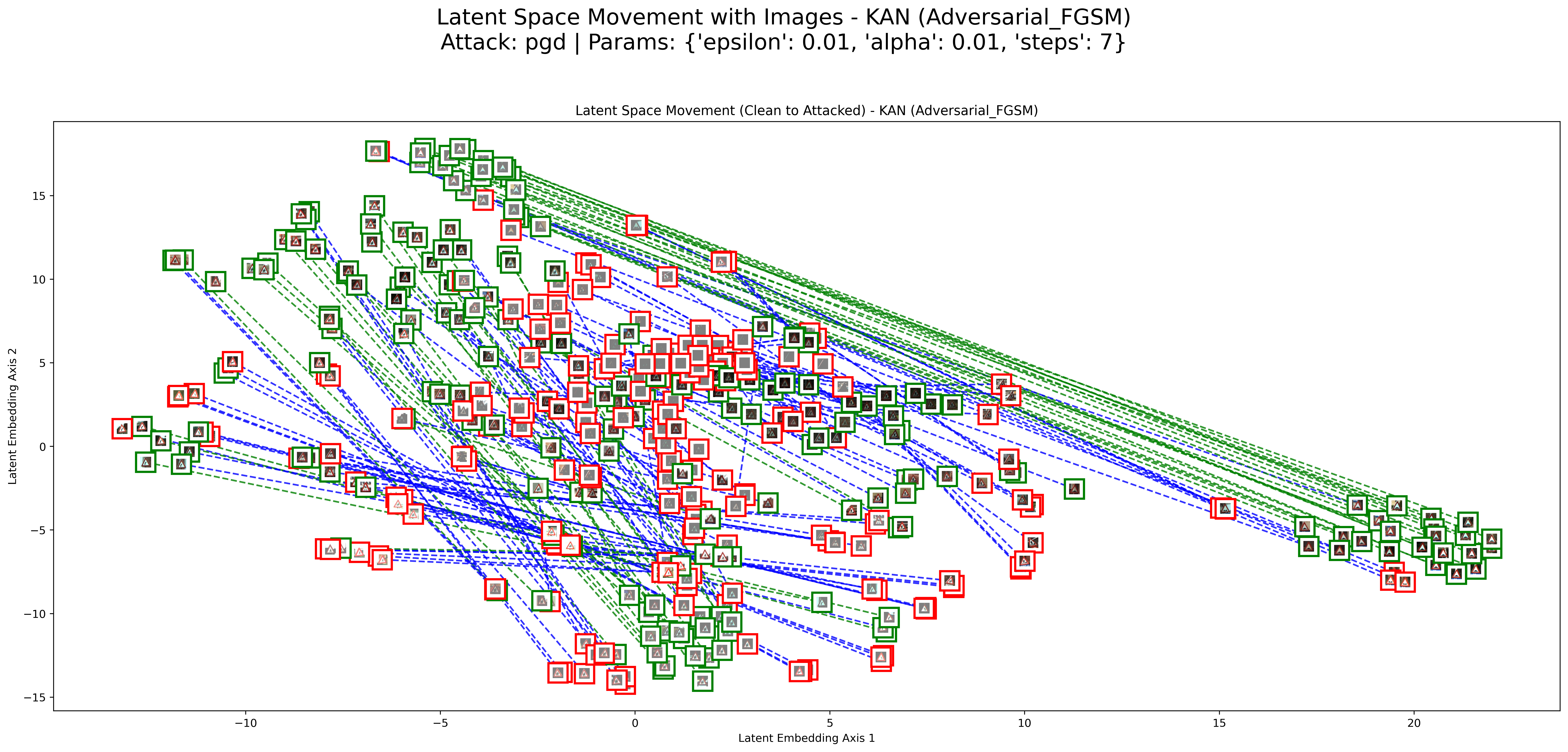

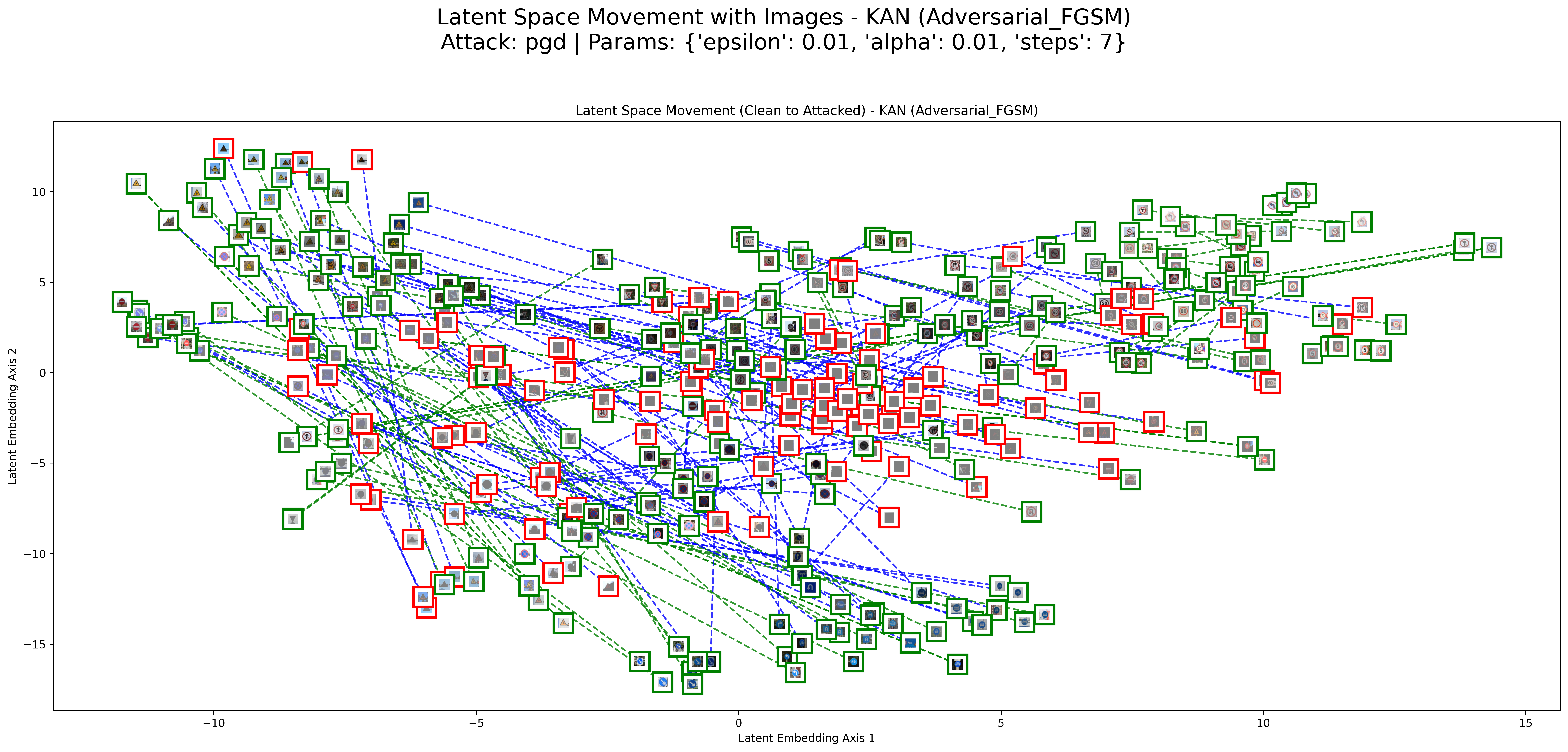

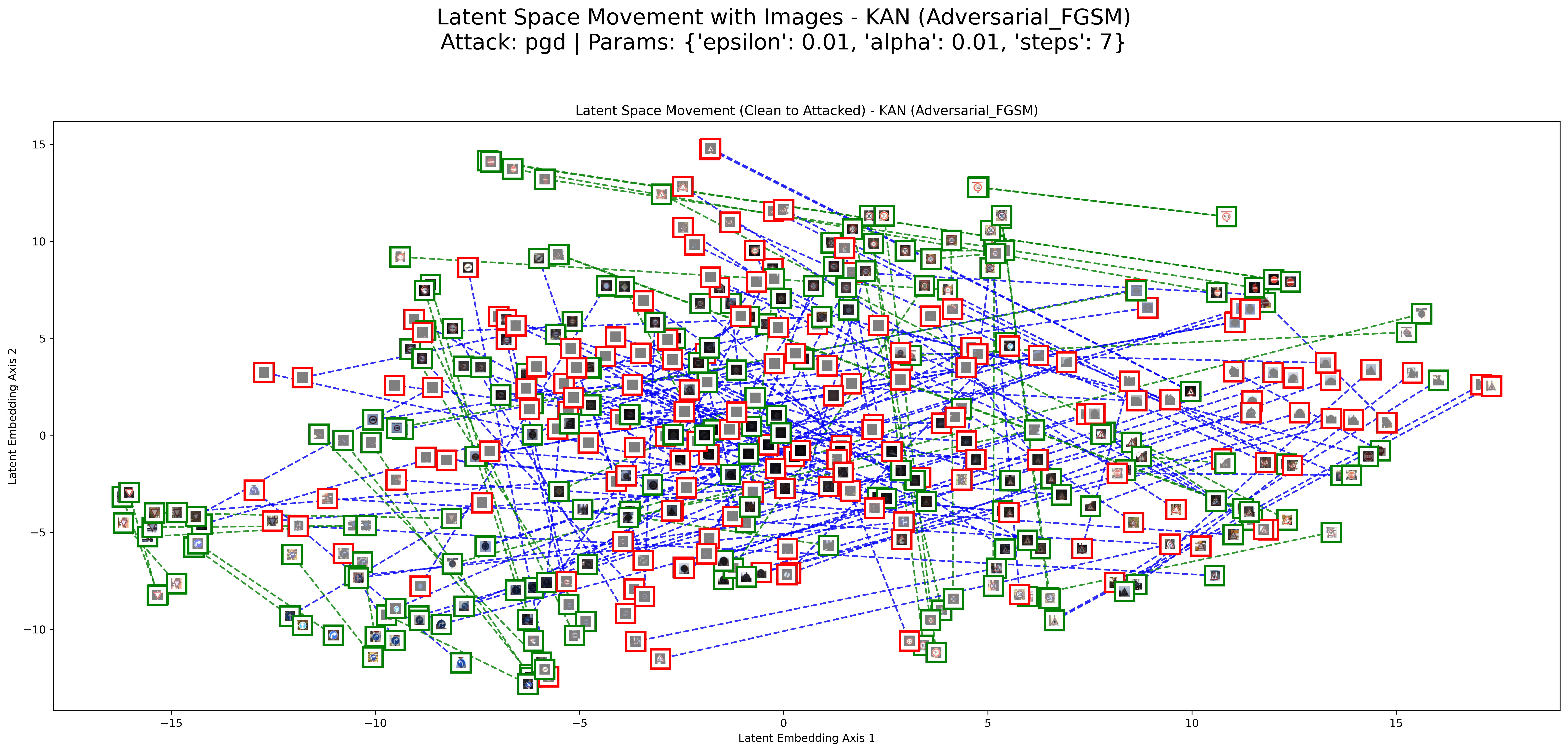

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

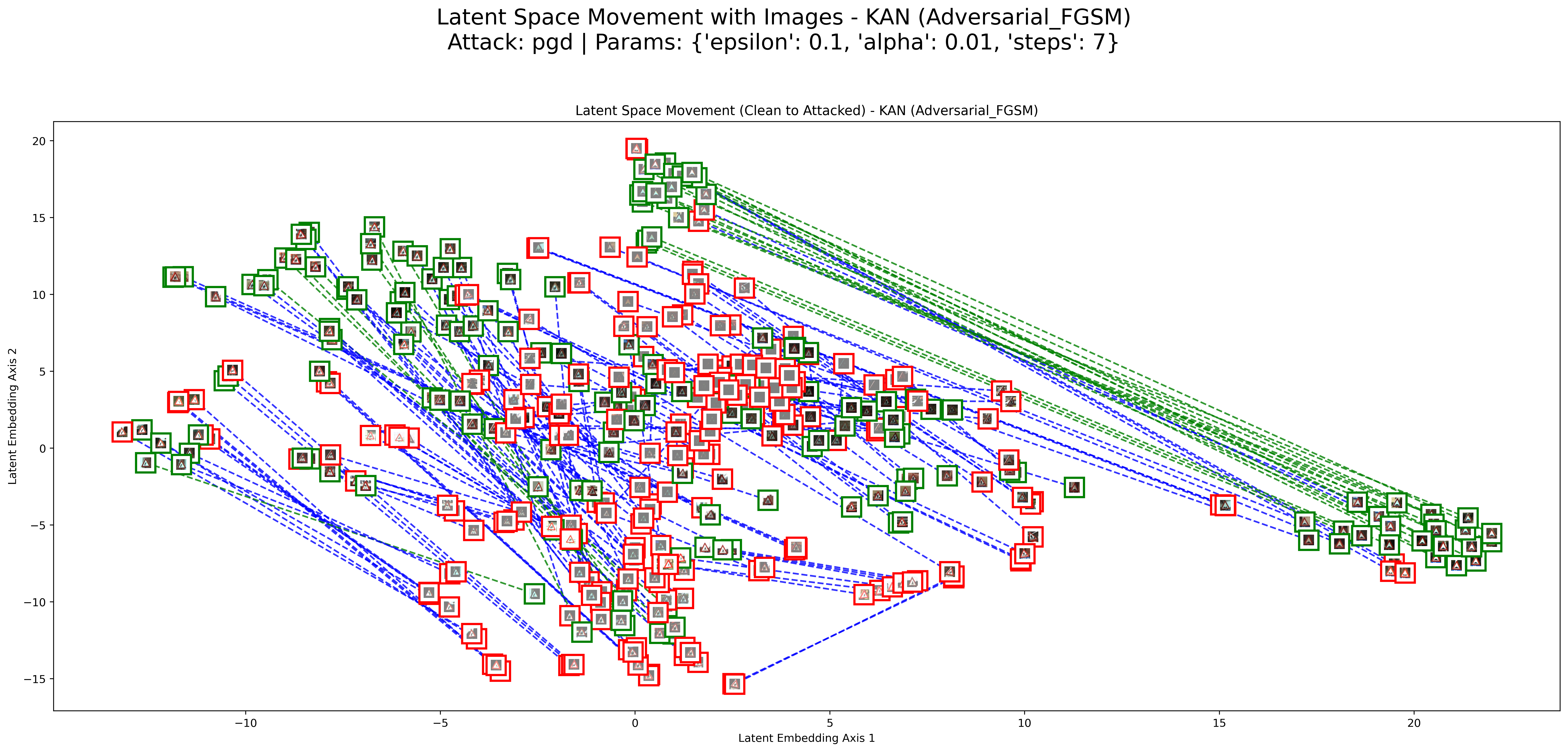

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

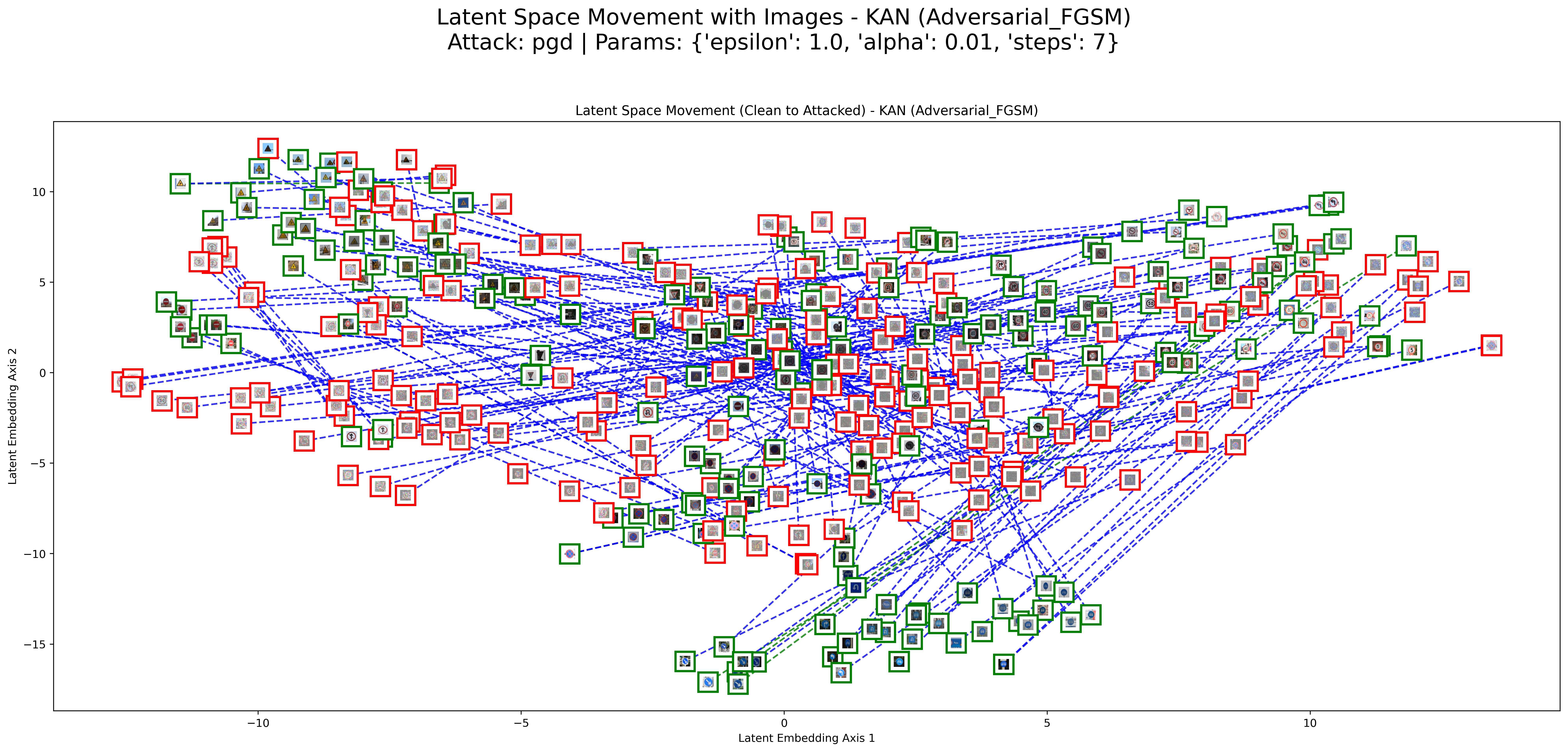

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

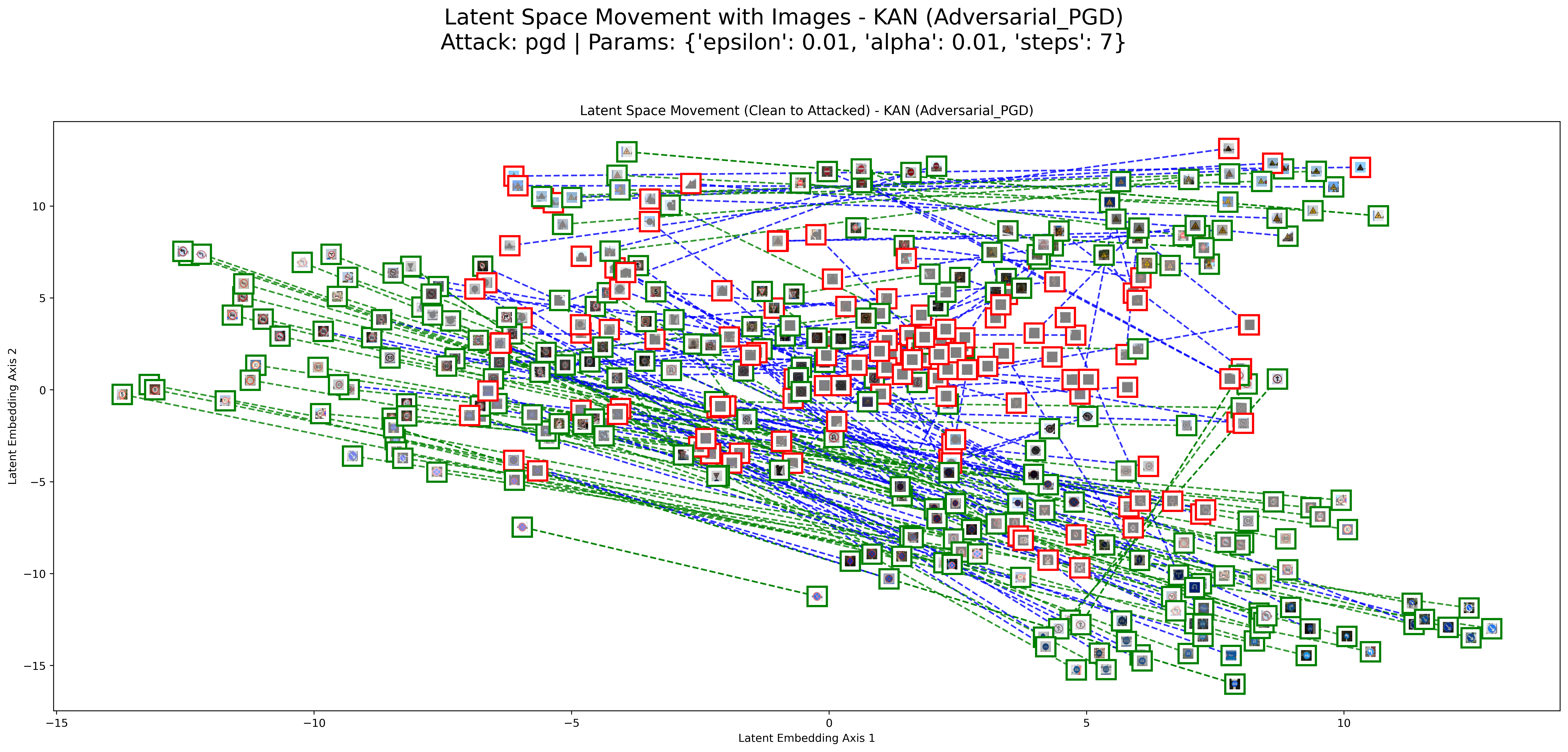

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

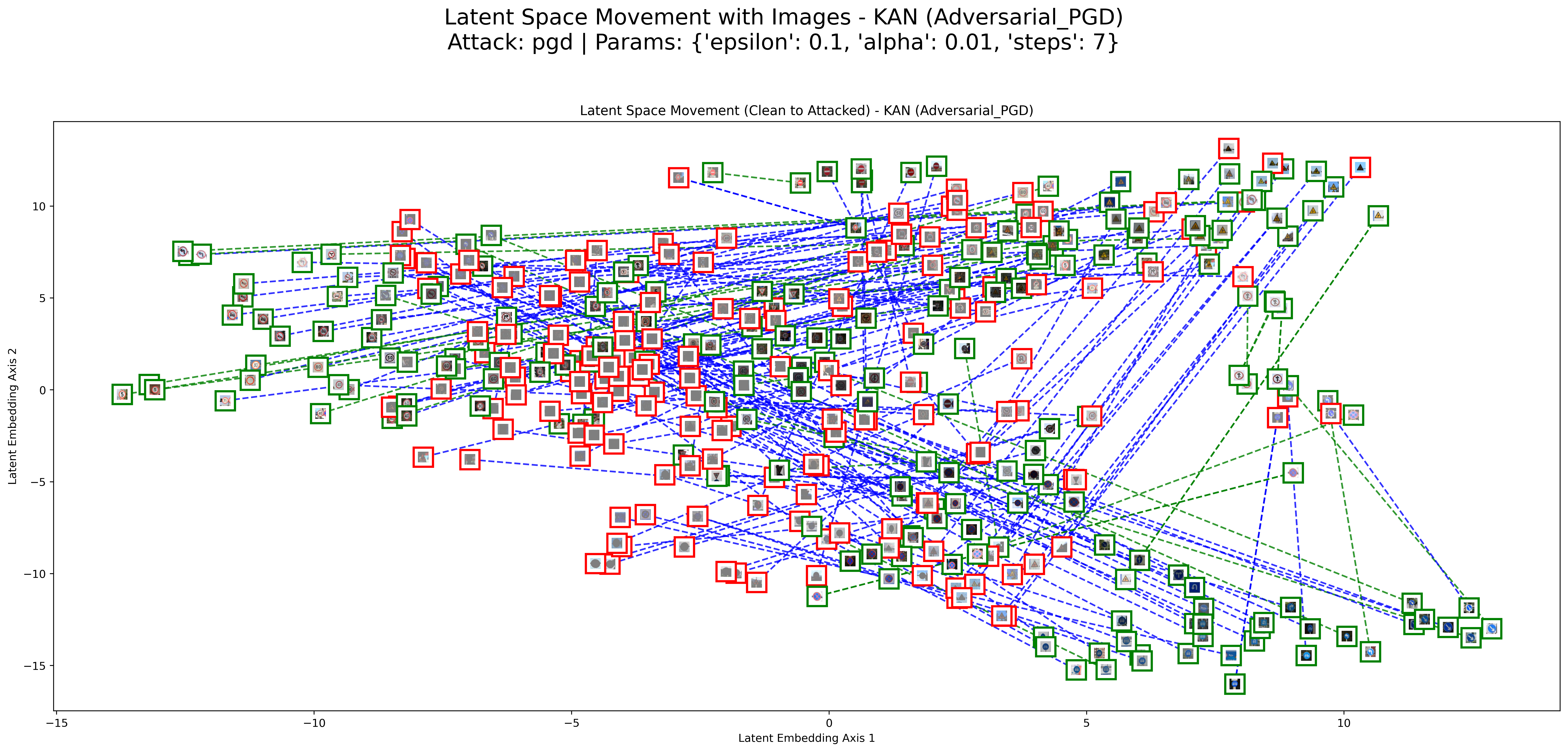

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

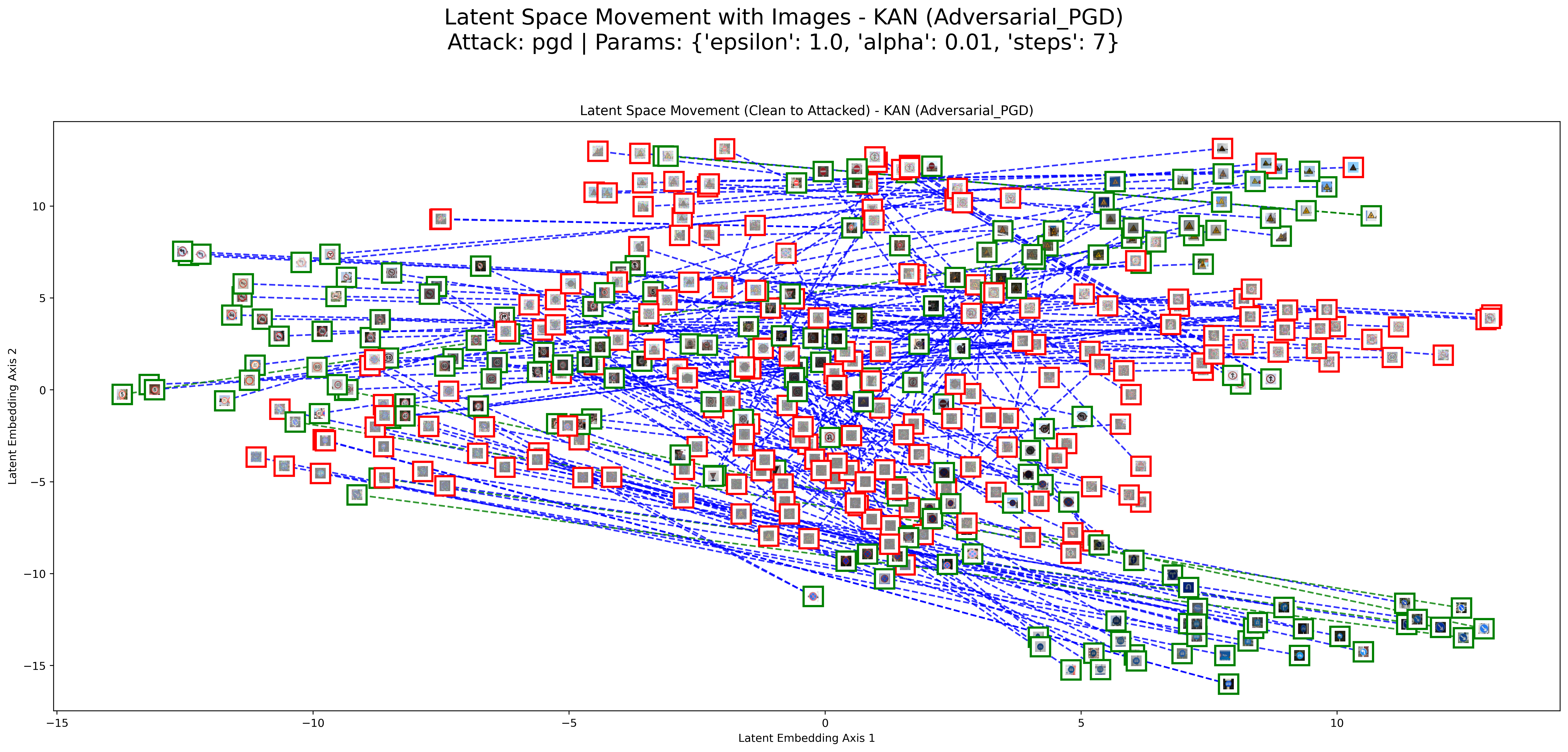

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

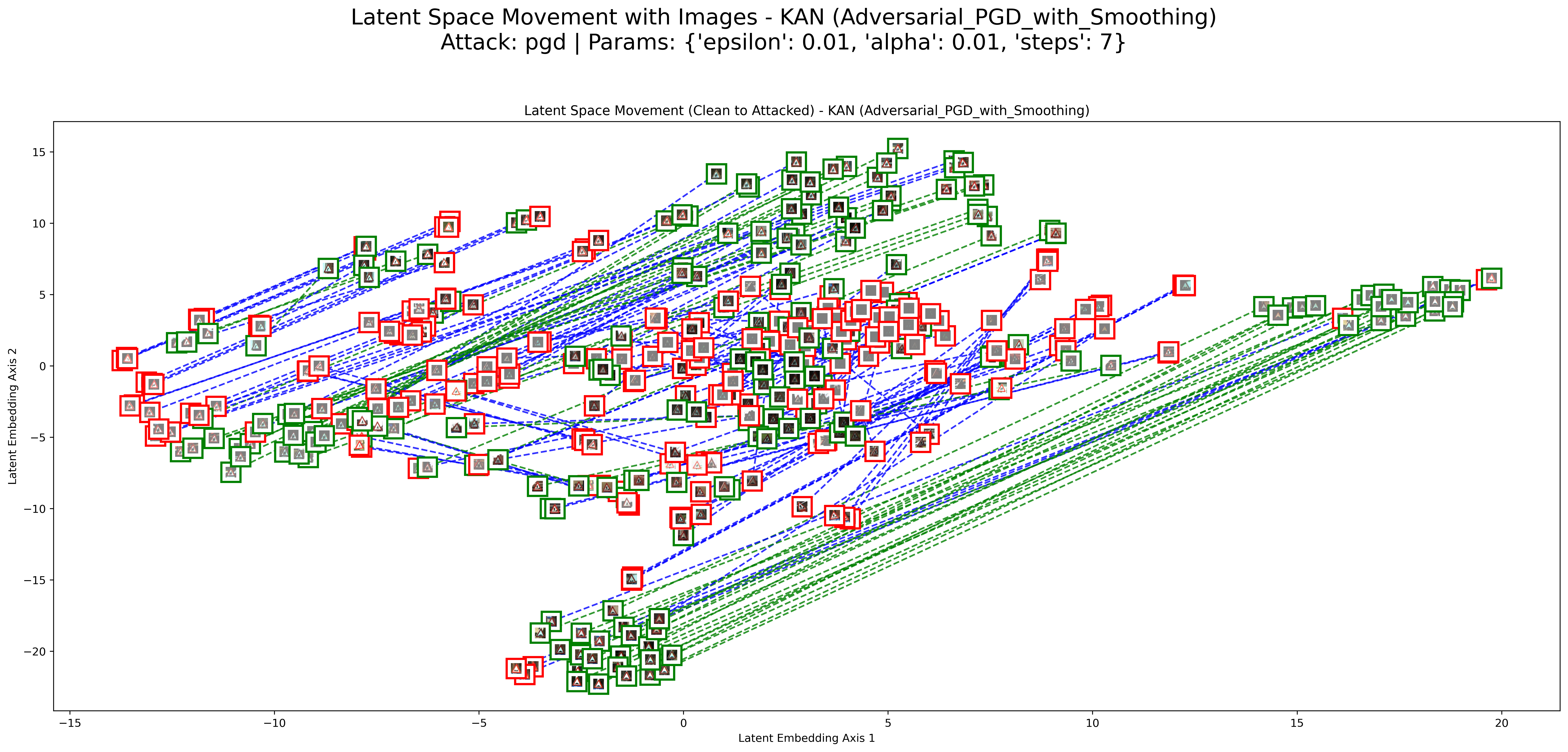

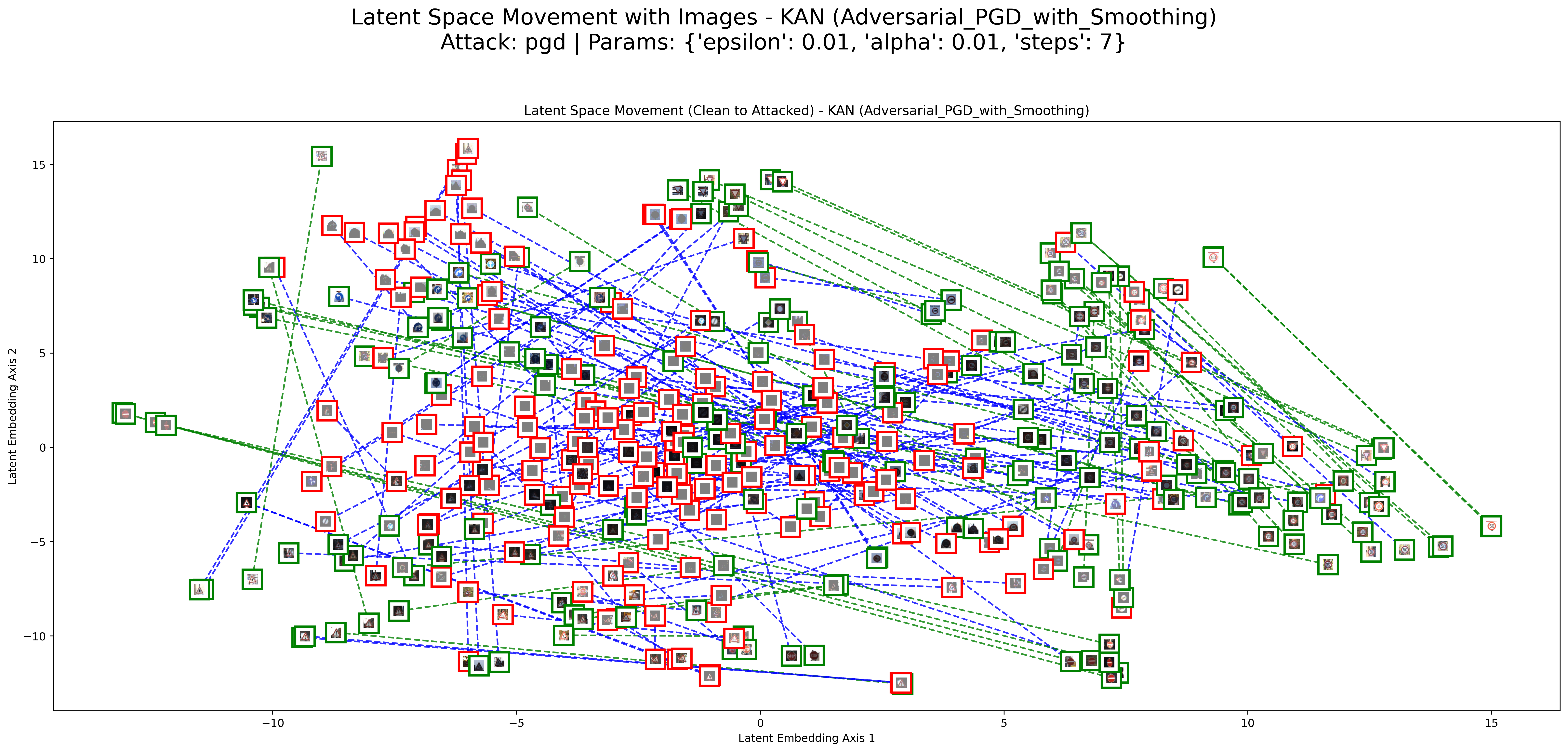

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

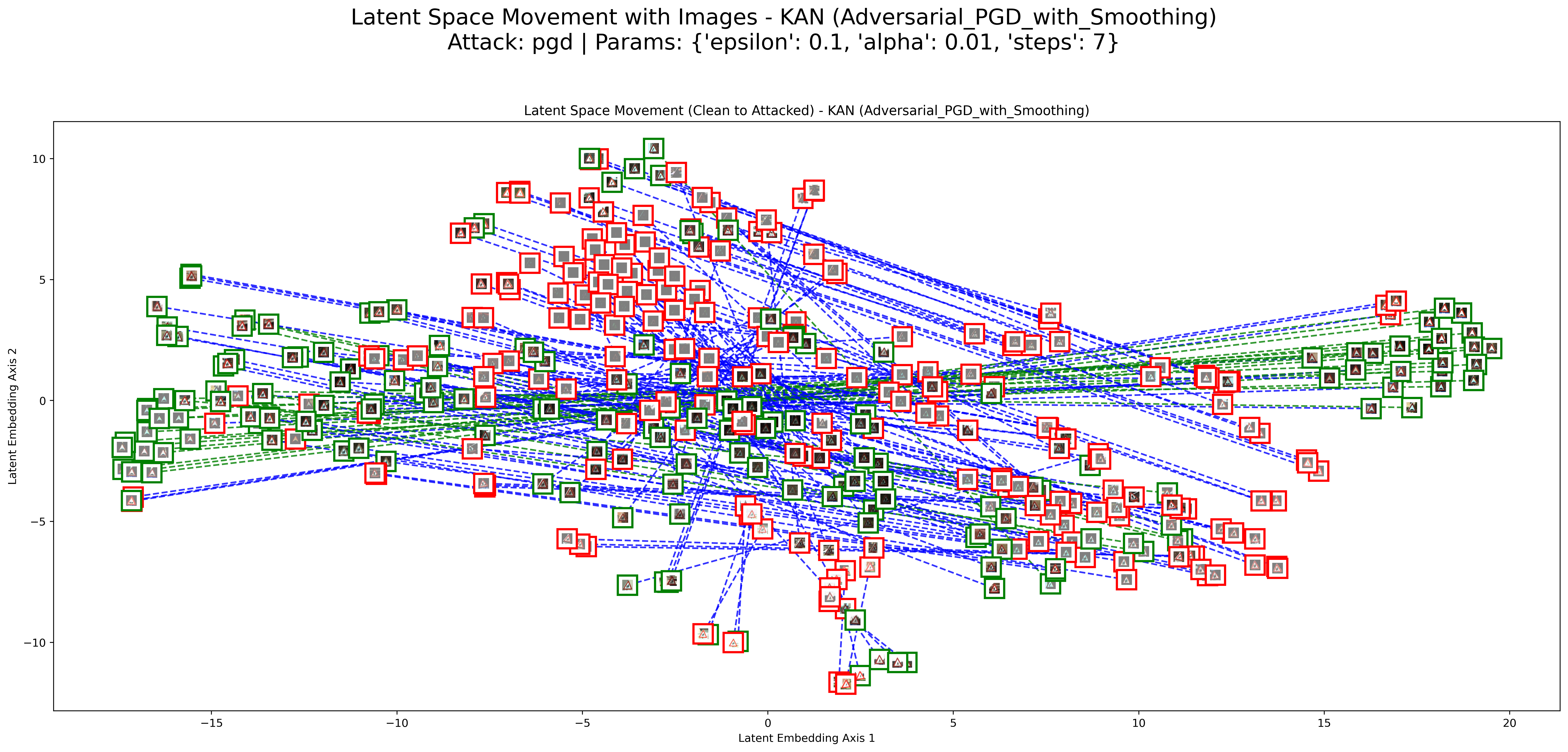

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

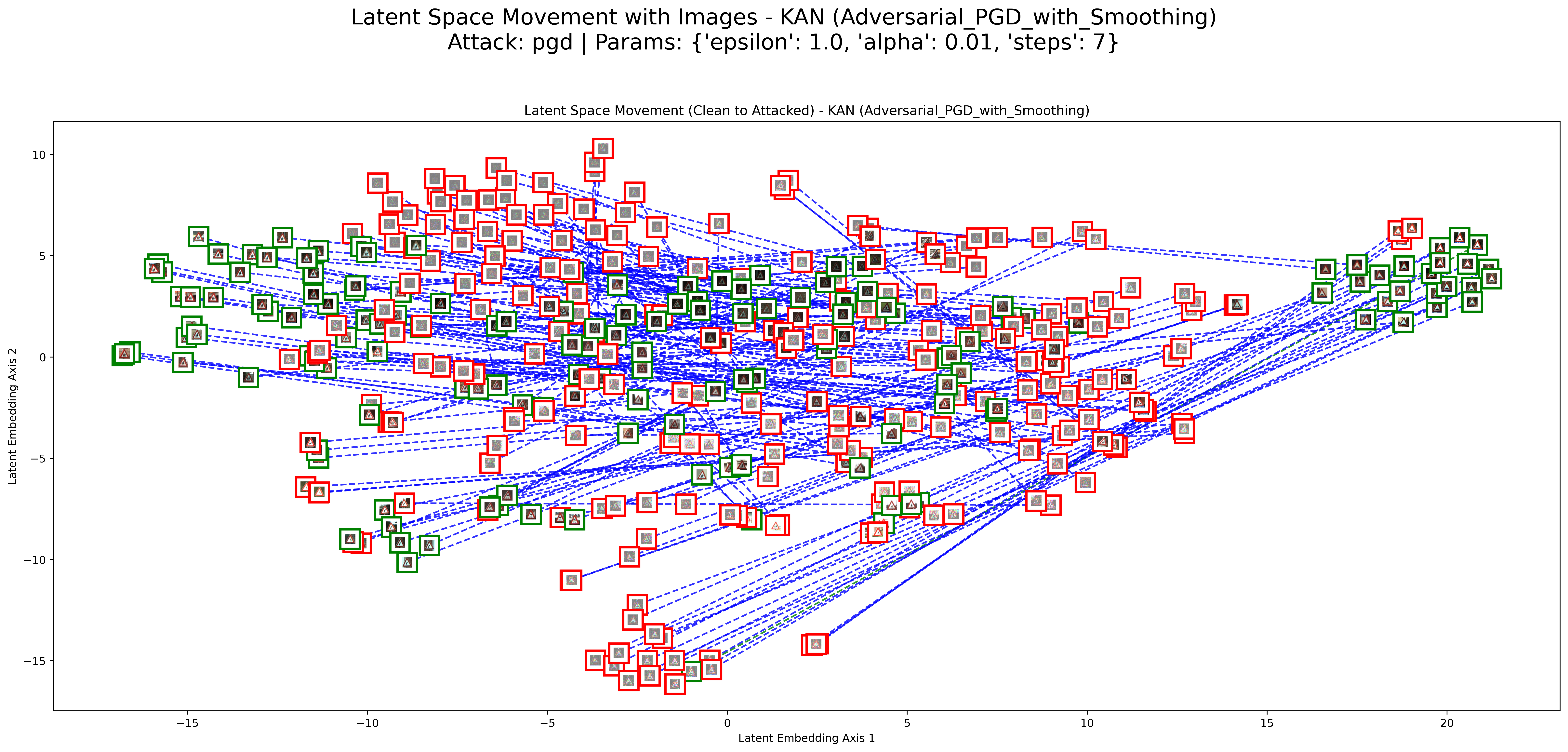

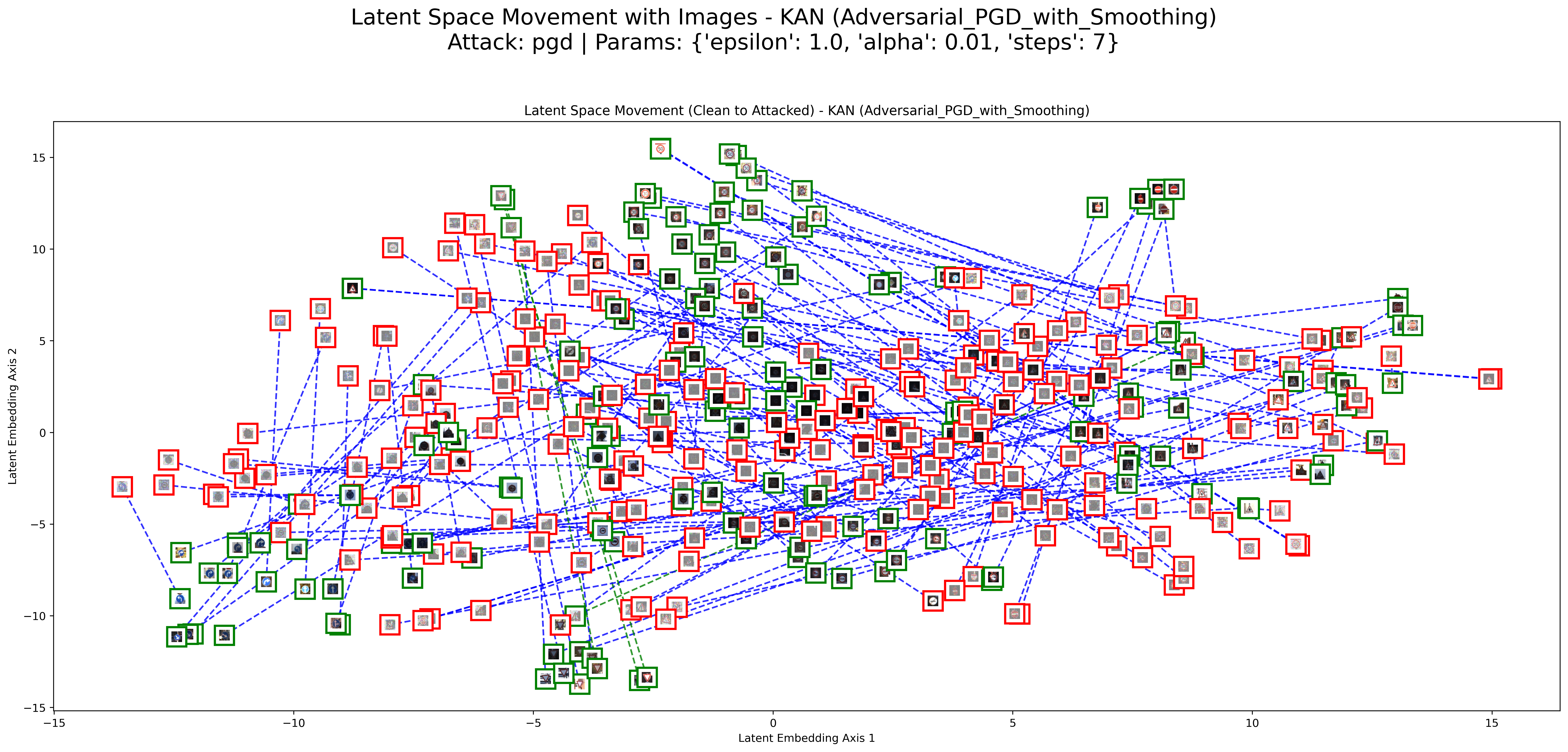

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

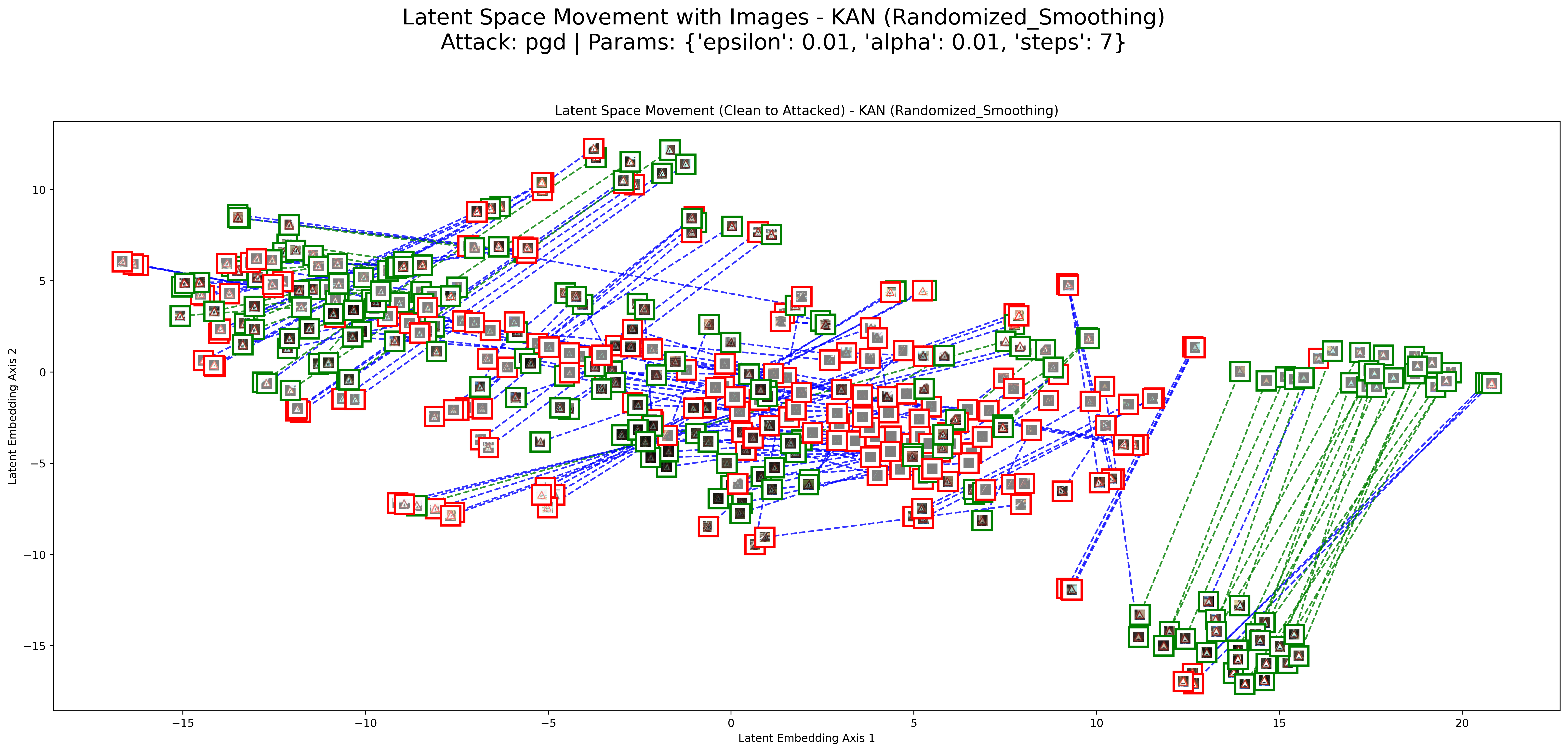

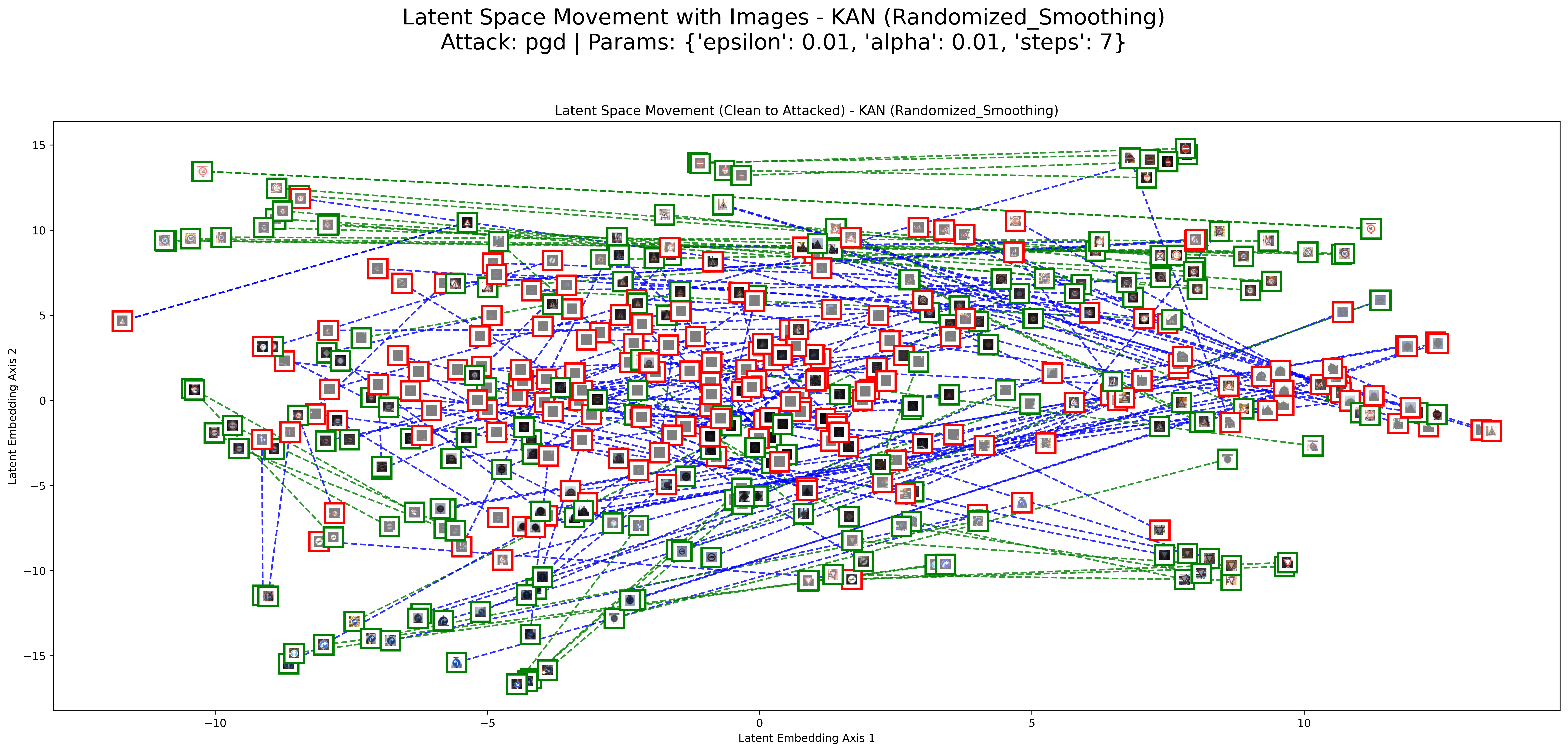

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

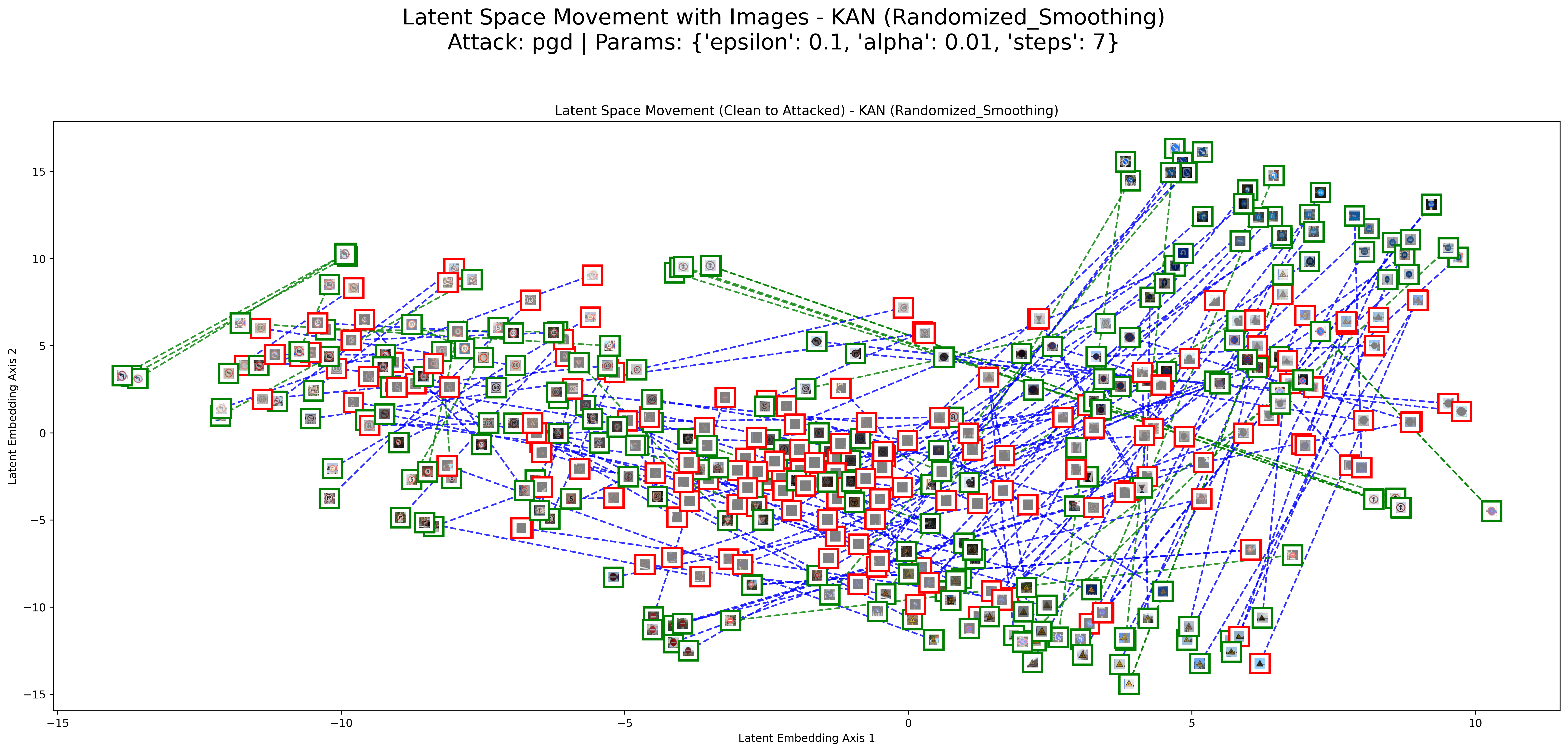

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

PGD Attack Results on KAN Model and CTSRB dataset

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

PGD Attack Results on KAN Model and GTSRB dataset

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the KAN model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

PGD Attack Results on MLP Model and BTSRB dataset

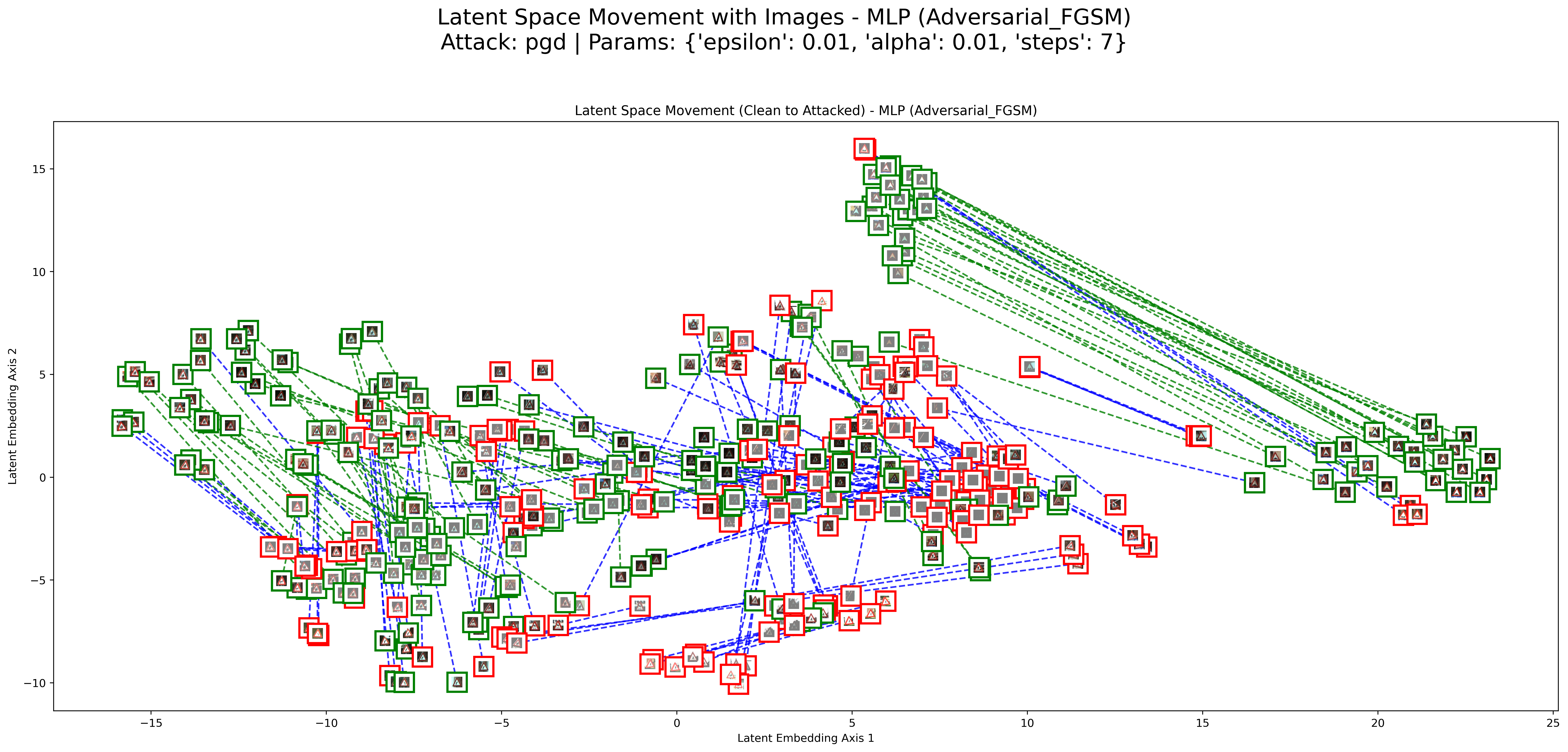

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: FGSM Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

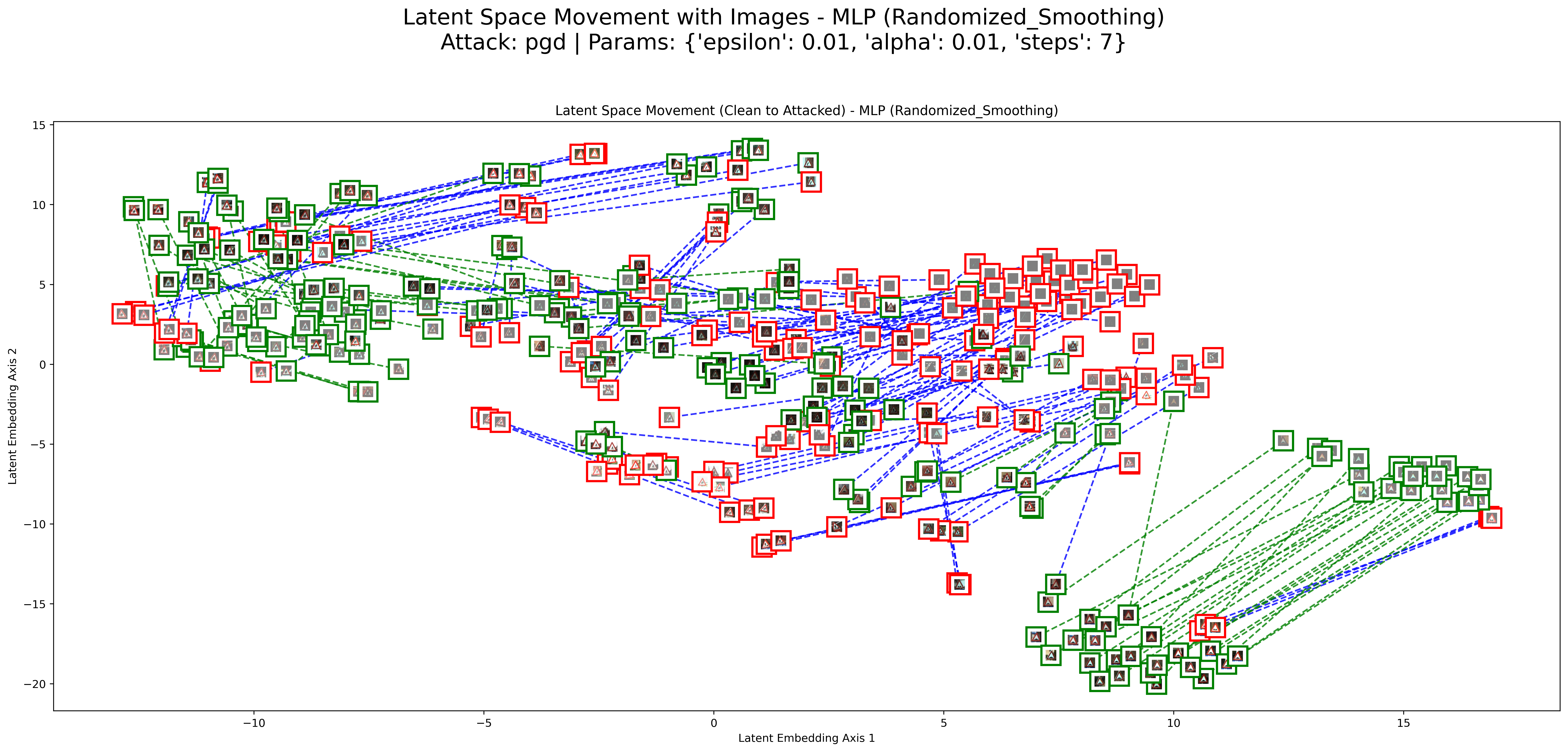

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.01, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.01, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 0.1, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 0.1, Alpha=0.01, Steps=7.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH PGD Epsilon = 1.0, Alpha=0.01, Steps=7

Description: This image shows Lattent Space for the MLP model's output when attack under PGD with Epsilon = 1.0, Alpha=0.01, Steps=7.

View Full Image

PGD Attack Results on MLP Model and CTSRB dataset

Title: PGD Adversarial Example 1

Description: This image shows the results of a projected gradient descent attack with 40 iterations on the KAN model.

View Full Image

PGD Attack Results on MLP Model and GTSRB dataset

Title: PGD Adversarial Example 1

Description: This image shows the results of a projected gradient descent attack with 40 iterations on the KAN model.

View Full Image

Training Type	Attack Type	Epsilon	Alpha	Num Iter	Accuracy (Attack)	Success Rate	Degree of Change	Evaluation Samples
Standard	PGD	0.01	0.01	7	0.315	0.43	26.96932602	200 Samples
Standard	PGD	0.01	0.01	7	0.353571429	0.566666667		Full Test Set
Standard	PGD	0.1	0.01	7	0.005	0.735	27.05032539	200 Samples
Standard	PGD	0.1	0.01	7	0.03015873	0.890079365		Full Test Set

CW Attack Results on KAN Model and BTSRB dataset

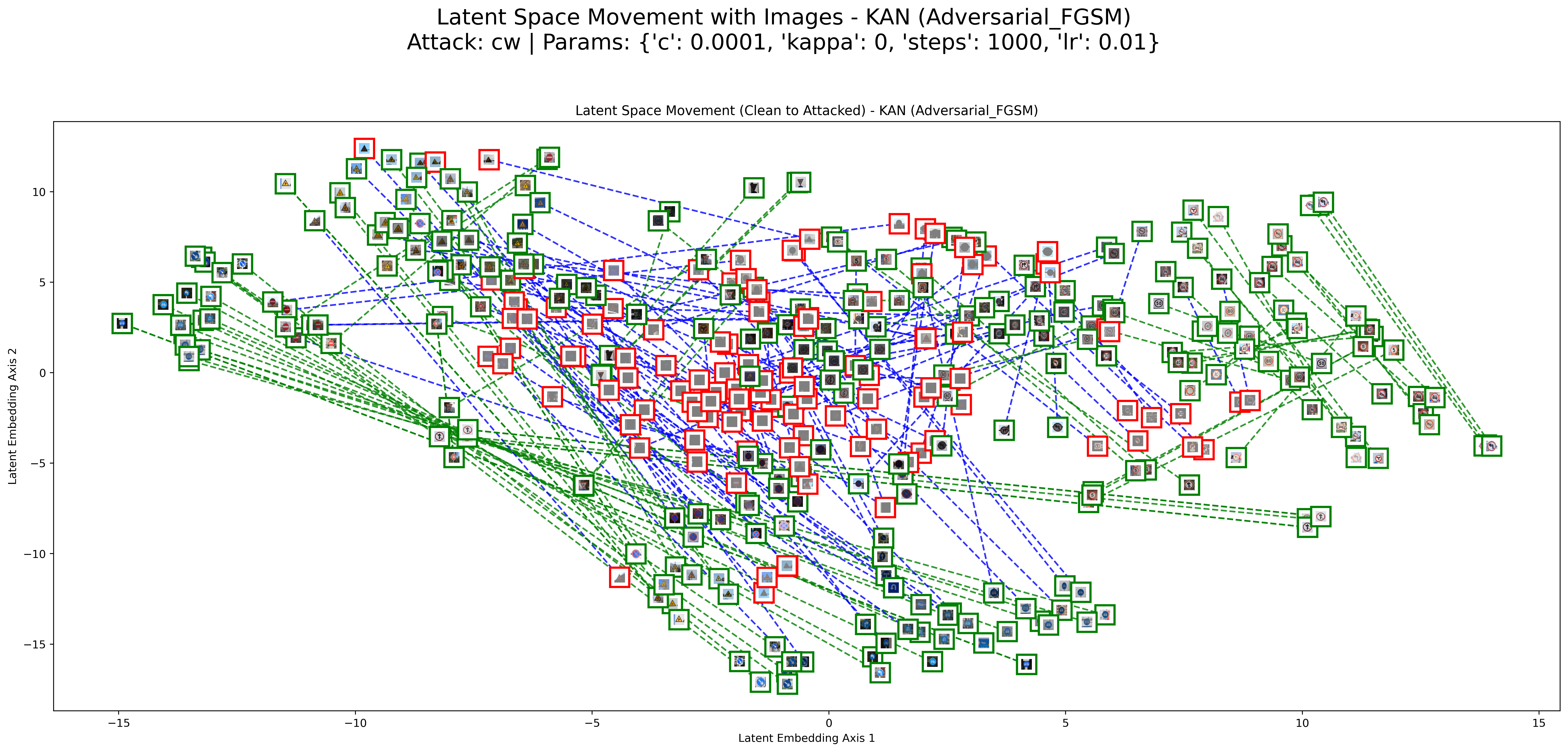

Title: FGSM Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

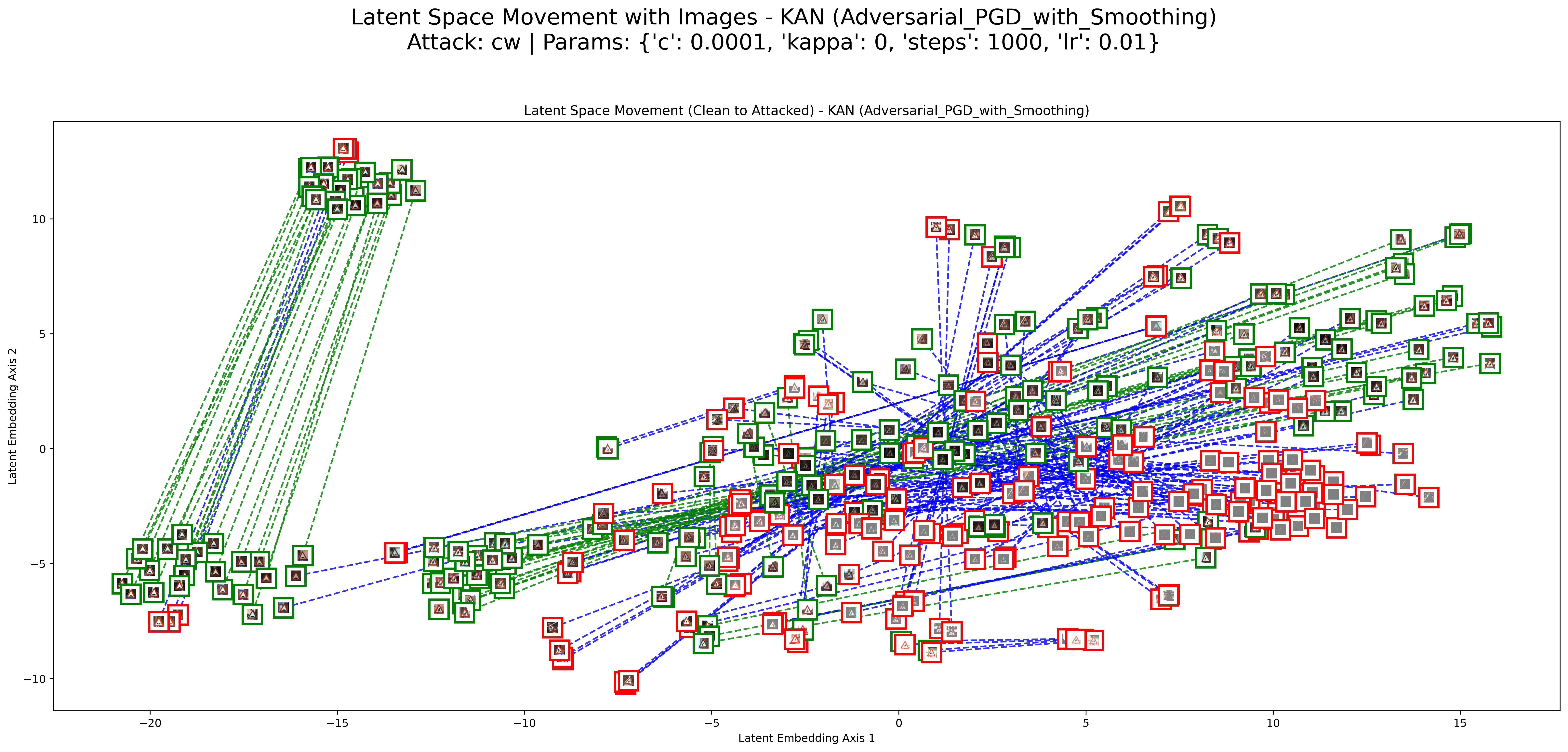

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

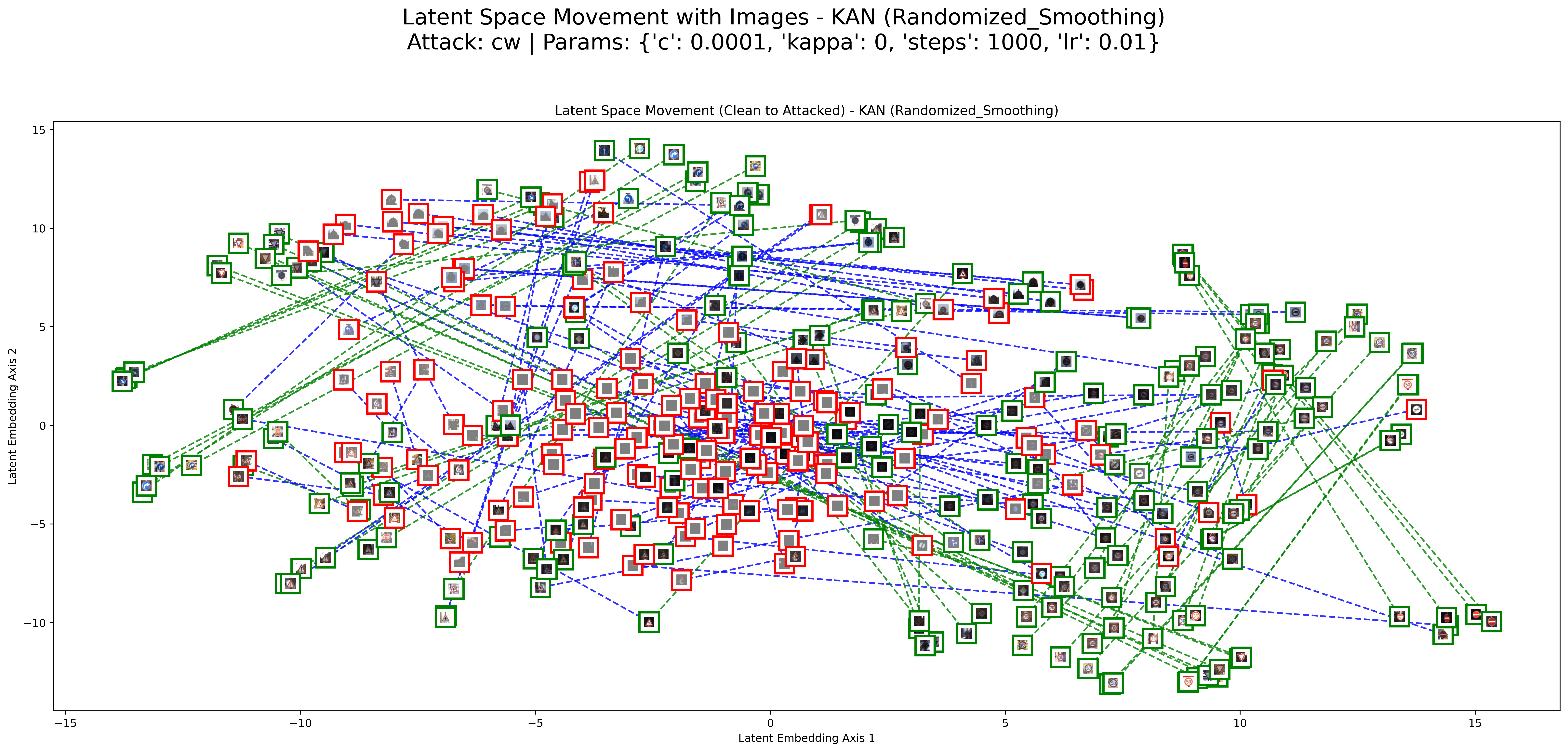

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

CW Attack Results on KAN Model and CTSRB dataset

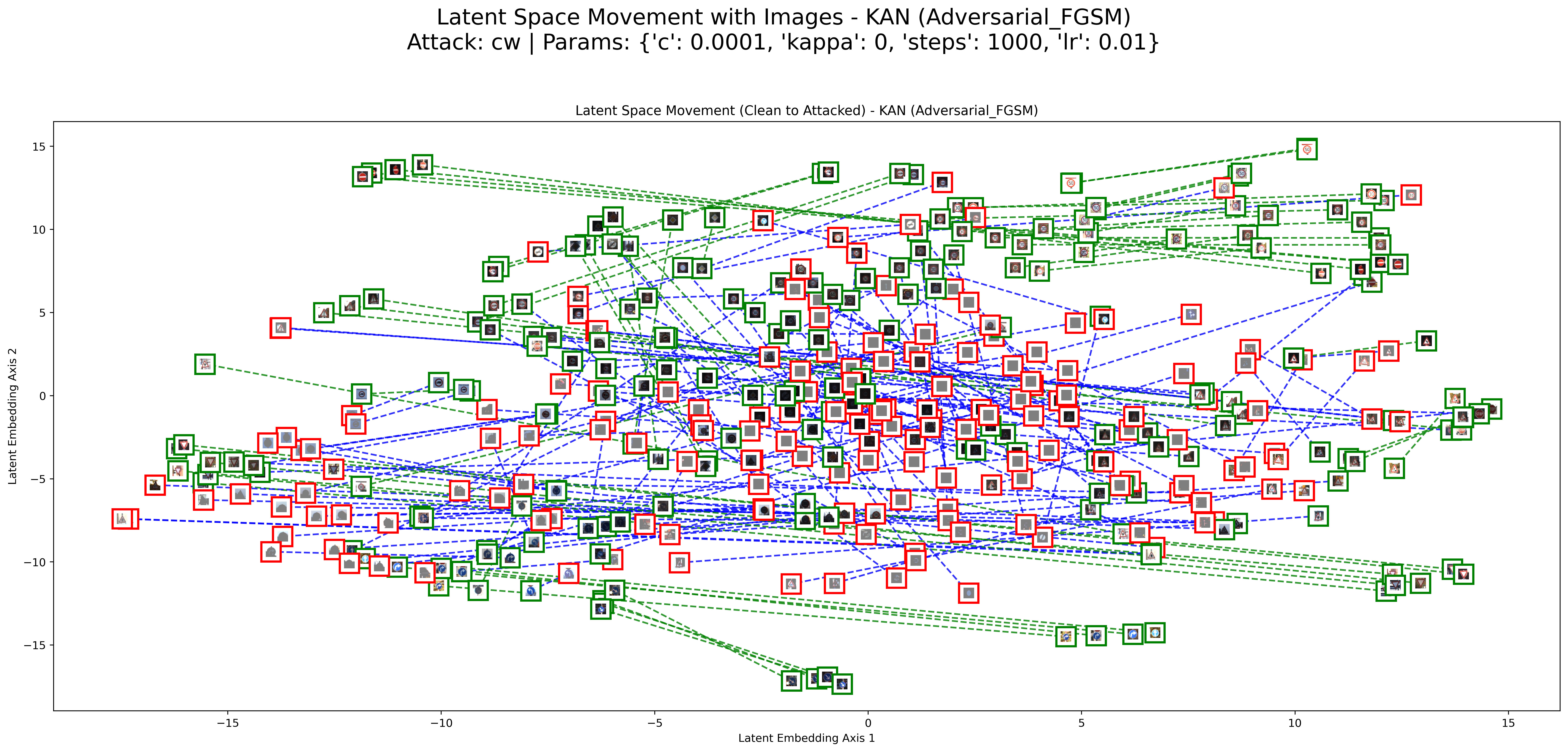

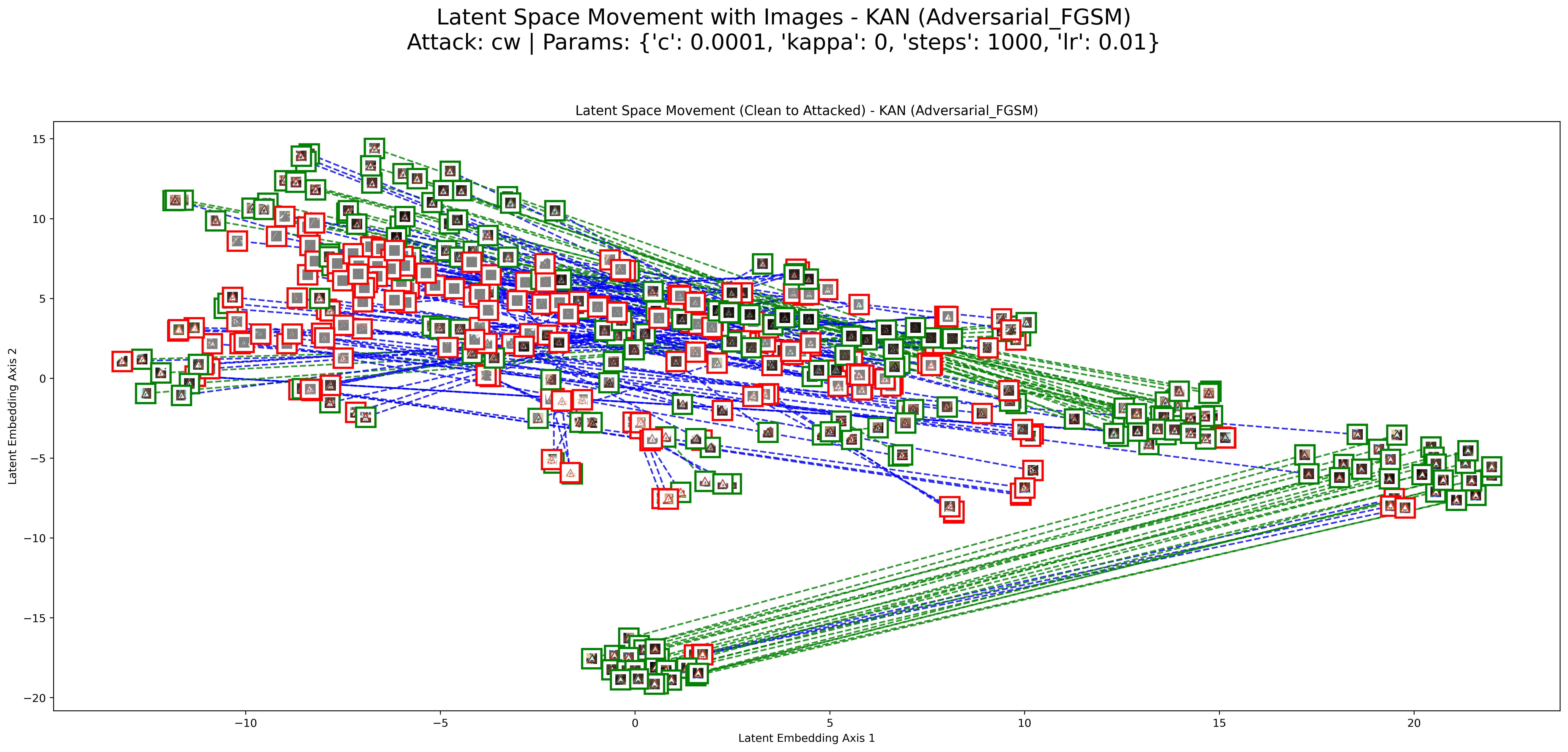

Title: FGSM Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

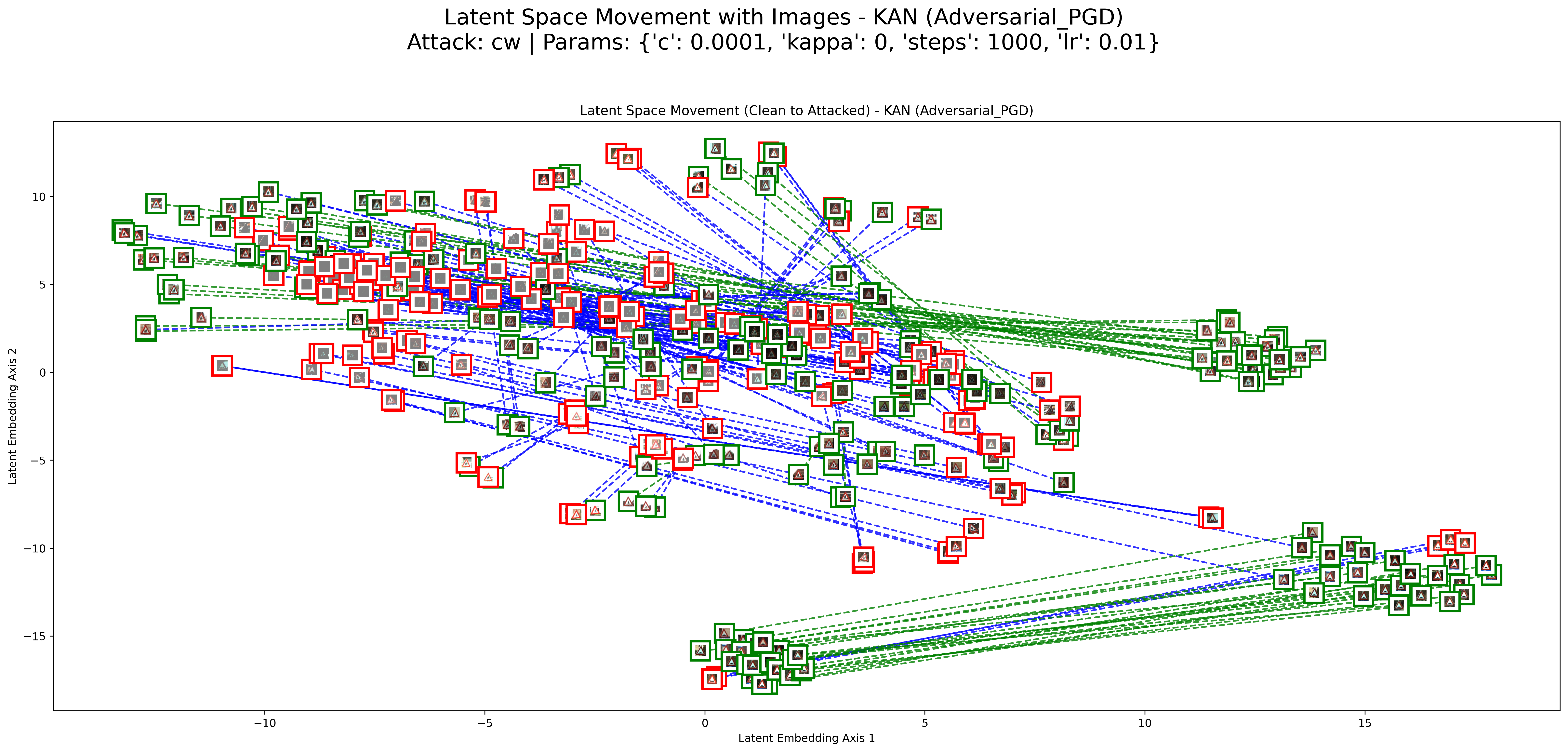

Title: PGD Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

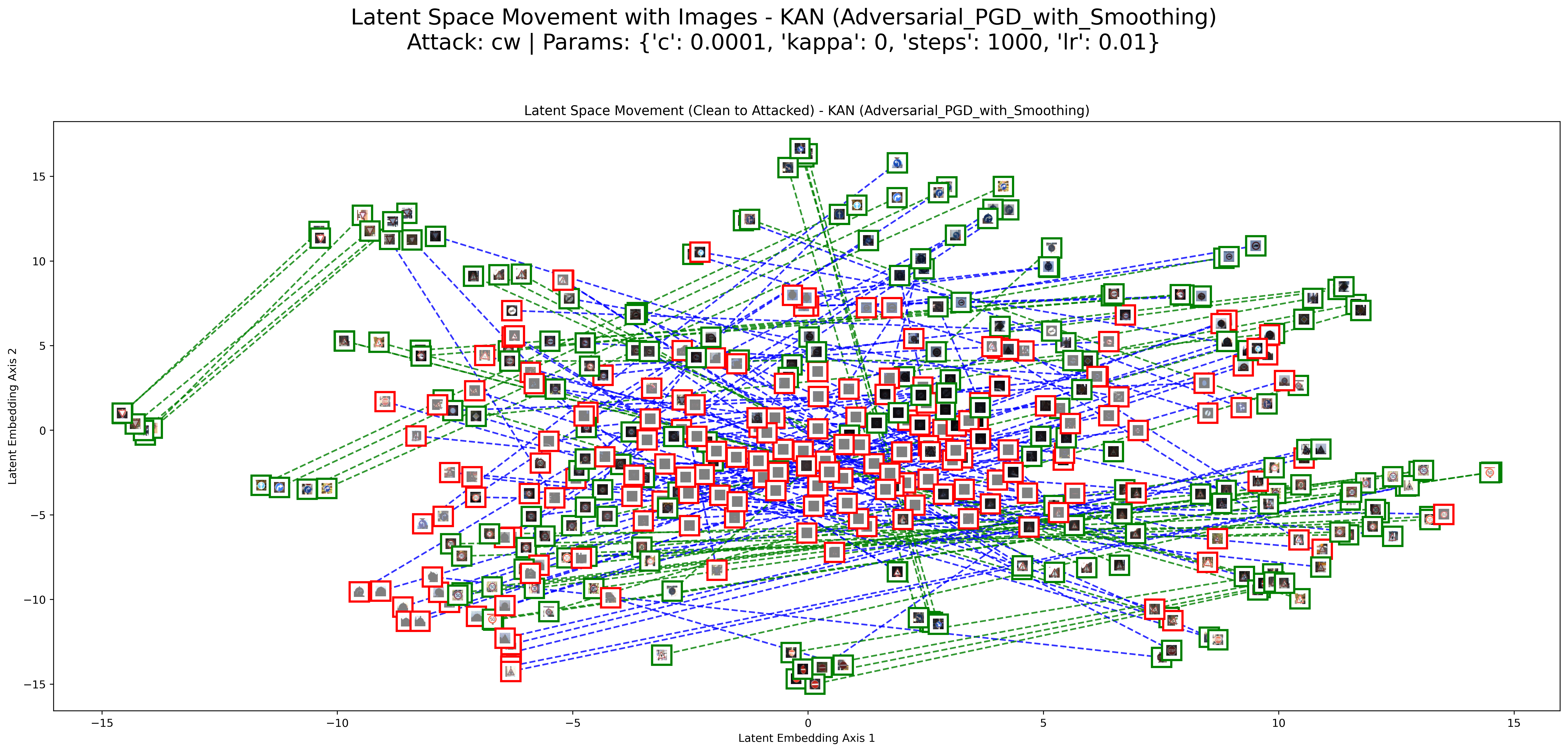

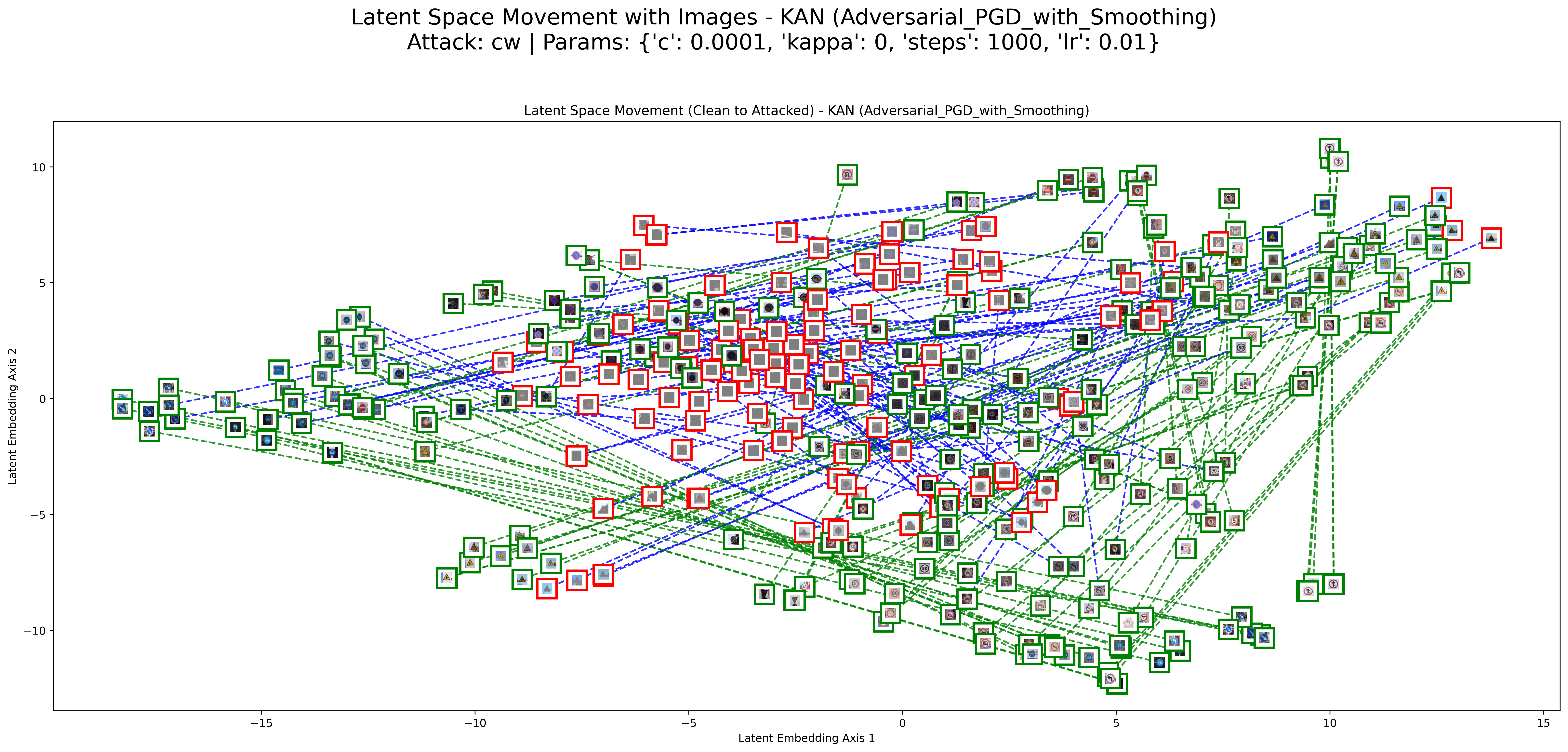

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

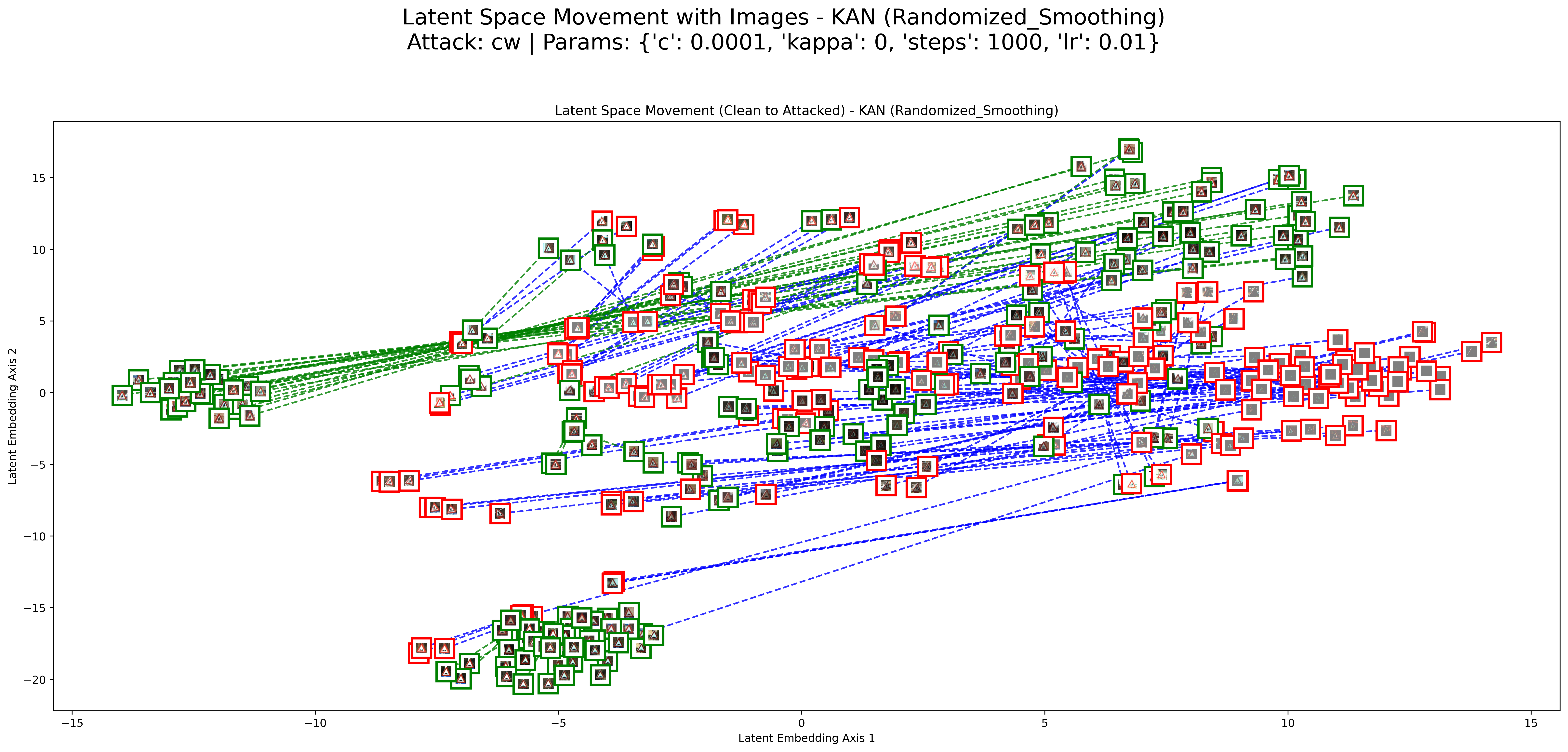

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

CW Attack Results on KAN Model and GTSRB dataset

Title: FGSM Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the KAN model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

CW Attack Results on KAN Model and BTSRB dataset

Title: FGSM Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

CW Attack Results on KAN Model and CTSRB dataset

Title: FGSM Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

CW Attack Results on KAN Model and GTSRB dataset

Title: FGSM Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: PGD Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Title: Standard Adversarial TRAINING AND ATTACK WITH CW c = 0.0001, Kappa=0, Steps=1000, lr=0.01

Description: This image shows Lattent Space for the MLP model's output when attack under CW with c = 0.0001, Kappa=0, Steps=1000, lr=0.01.

View Full Image

Model	Dataset	Training Type	Attack Type	Iterations	Learning Rate	Accuracy	Success Rate	Degree of Change	Evaluation Samples
KAN	GTSRB	Standard	CW	1000	0.0001	27.5	51	11.39384842	200 Samples
MLP	GTSRB	Standard	CW	1000	0.0001	38.5	41	9.846359253	200 Samples
KAN	BTSRB	Standard	CW	1000	0.0001	27.5	47	9.717828751	200 Samples
MLP	BTSRB	Standard	CW	1000	0.0001	38.5	35.5	8.221411705	200 Samples
KAN	CTSRD	Standard	CW	1000	0.0001	42.5	54.5	7.069438457	200 Samples
MLP	CTSRD	Standard	CW	1000	0.0001	52.5	45.5	5.822953224	200 Samples
KAN	GTSRB	Standard	CW	1000	0.0001	26.87252573	52.24069675		Full Test Set
MLP	GTSRB	Standard	CW	1000	0.0001	34.65558195	47.53760887		Full Test Set
KAN	BTSRB	Standard	CW	1000	0.0001	44.92063492	43.80952381		Full Test Set
MLP	BTSRB	Standard	CW	1000	0.0001	60.51587302	29.56349206		Full Test Set
KAN	CTSRD	Standard	CW	1000	0.0001	36.90186537	60.2595296		Full Test Set
MLP	CTSRD	Standard	CW	1000	0.0001	52.39253852	45.17437145		Full Test Set

Model 2: KAN-Mixer vs MLP-Mixer

Description of KAN-Mixer and MLP-Mixer Models

KAN_Mixer and MLP_Mixer Description:
These KANLinear layers are key to the model's flexibility. They use grid-based kernels with a grid size of 5 and spline order of 3, scaled by 1.0. The grid is dynamically updated within a range of -1 to 1 using a grid epsilon of 0.02, enhancing adaptability to the data distribution. The activation function used in the KAN model is SiLU, which allows for smoother gradient flow during backpropagation. Regularization is enforced through adaptive B-splines, which helps control overfitting, following the configuration outlined in Efficient KAN.

The MLP_Mixer model serves as a baseline comparison, consisting of multiple layers of Multi-Layer Perceptrons, using ReLU activation functions for computational efficiency.

Both models' output layers consist of units corresponding to the number of classes in the datasets. For training, we used the AdamW optimizer with a learning rate of 0.001 and a weight decay of 1e-4, training over 100 epochs with a batch size of 64. The cross-entropy loss function was employed to evaluate classification performance.

Dataset Class Distribution

BTSRB Dataset: The BTSD includes a total of 62 classes, categorized into three superclasses: mandatory, prohibitive, and danger classes. The dataset is divided into 4,591 training images and 2,534 test images, providing variety in sign appearances to assess model robustness, depicted in the figure below.

View Full Image

CTSRB Dataset: China's CTSRB comprises 6,164 images in 58 categories, with 4,170 training images and 1,994 test images, offering a well-annotated dataset frequently used in traffic sign recognition research, illustrated in the figure below.

View Full Image

GTSRB Dataset: The GTSRB dataset, widely used to benchmark traffic sign classification models, contains 43 classes with 39,209 training images and 12,630 test images, offering a diverse representation of German traffic signs, as shown in the figure below.

View Full Image

Attack Methods on KAN-Mixer and MLP-Mixer Models

FGSM Attack Results on KAN-Mixer and MLP-Mixer Models

KAN_Mixer BTSRB FGSM ε=0.01

Description: FGSM attack with ε=0.01, α=0.1, iterations=1.

View Full Image

KAN_Mixer BTSRB FGSM ε=0.1

Description: FGSM attack with ε=0.1, α=0.1, iterations=1.

View Full Image

KAN_Mixer BTSRB FGSM ε=1

Description: FGSM attack with ε=1, α=0.1, iterations=1.

View Full Image

MLP_Mixer BTSRB FGSM ε=0.01

Description: FGSM attack with ε=0.01, α=0.1, iterations=1.

View Full Image

MLP_Mixer CTSRB FGSM ε=0.1

Description: FGSM attack with ε=0.1, α=0.1, iterations=1.

View Full Image

MLP_Mixer GTSRB FGSM ε=1

Description: FGSM attack with ε=1, α=0.1, iterations=1.

View Full Image

Model	Dataset	Training Type	Attack Type	Epsilon (ε)	Accuracy (Attack)	Success Rate	Degree of Change	Evaluation Samples
KAN_Mixer	BTSRD	Standard	FGSM	0.01	0.41	0.34	26.97	200 Samples
MLP_Mixer	BTSRD	Standard	FGSM	0.01	0.43	0.49		Full Test Set
KAN_Mixer	CTSRD	Standard	FGSM	0.1	0.04	0.71	27.13	200 Samples
MLP_Mixer	CTSRD	Standard	FGSM	0.1	0.05	0.87		Full Test Set
KAN_Mixer	GTSRD	Standard	FGSM	1	0.00	0.74	42.56	200 Samples
MLP_Mixer	GTSRD	Standard	FGSM	1	0.00	0.92		Full Test Set
KAN_Mixer	BTSRD	Adversarial	FGSM	0.01	0.56	0.04	26.97	200 Samples
MLP_Mixer	BTSRD	Adversarial	FGSM	0.01	0.74	-0.28		Full Test Set
KAN_Mixer	CTSRD	Adversarial	FGSM	0.1	0.53	0.06	27.13	200 Samples
MLP_Mixer	CTSRD	Adversarial	FGSM	0.1	0.70	-0.24		Full Test Set
KAN_Mixer	GTSRD	Adversarial	FGSM	1	0.02	0.30	42.33	200 Samples
MLP_Mixer	GTSRD	Adversarial	FGSM	1	0.10	0.36		Full Test Set

PGD Attack Results on KAN-Mixer and MLP-Mixer Models

KAN_Mixer BTSRB PGD ε=0.01

Description: PGD attack with ε=0.01, α=0.1, iterations=7.

View Full Image

MLP_Mixer BTSRB PGD ε=0.01

Description: PGD attack with ε=0.01, α=0.1, iterations=7.

View Full Image

KAN_Mixer CTSRB PGD ε=0.01

Description: PGD attack with ε=0.01, α=0.1, iterations=7.

View Full Image

MLP_Mixer CTSRB PGD ε=0.1

Description: PGD attack with ε=0.1, α=0.1, iterations=7.

View Full Image

KAN_Mixer GTSRB PGD ε=0.1

Description: PGD attack with ε=0.1, α=0.1, iterations=7.

View Full Image

MLP_Mixer GTSRB PGD ε=0.1

Description: PGD attack with ε=0.1, α=0.1, iterations=7.

View Full Image

Model	Dataset	Training Type	Attack Type	Epsilon (ε)	Alpha (α)	Num Iter	Accuracy (Attack)	Success Rate	Degree of Change	Evaluation Samples
KAN_Mixer	BTSRD	Standard	PGD	0.01	0.01	7	0.32	0.43	26.97	200 Samples
MLP_Mixer	BTSRD	Standard	PGD	0.01	0.01	7	0.35	0.57	26.97	200 Samples
KAN_Mixer	CTSRD	Standard	PGD	0.1	0.01	7	0.01	0.74	27.05	200 Samples
MLP_Mixer	CTSRD	Standard	PGD	0.1	0.01	7	0.03	0.89	29.63	200 Samples
KAN_Mixer	GTSRD	Standard	PGD	1	0.01	7	0.00	0.74	33.32	200 Samples
MLP_Mixer	GTSRD	Standard	PGD	1	0.01	7	0.00	0.92	35.19	200 Samples
KAN_Mixer	BTSRD	Adversarial	PGD	0.01	0.01	7	0.46	0.05	26.97	Full Test Set
MLP_Mixer	BTSRD	Adversarial	PGD	0.01	0.01	7	0.64	-0.18	Full Test Set	Full Test Set
KAN_Mixer	CTSRD	Adversarial	PGD	0.1	0.01	7	0.09	0.26	27.05	Full Test Set
MLP_Mixer	CTSRD	Adversarial	PGD	0.1	0.01	7	0.20	0.25	29.63	Full Test Set
KAN_Mixer	GTSRD	Adversarial	PGD	1	0.01	7	0.00	0.81	35.31	Full Test Set
MLP_Mixer	GTSRD	Adversarial	PGD	1	0.01	7	0.00	0.93	35.19	Full Test Set

BIM Attack Results on KAN-Mixer and MLP-Mixer Models

KAN_Mixer BTSRB BIM ε=0.01

Description: BIM attack with ε=0.01, α=0.1, iterations=7.

View Full Image

KAN_Mixer BTSRB BIM ε=0.1

Description: BIM attack with ε=0.1, α=0.1, iterations=7.

View Full Image

KAN_Mixer BTSRB BIM ε=1

Description: BIM attack with ε=1, α=0.1, iterations=7.

View Full Image

MLP_Mixer BTSRB BIM ε=0.01

Description: BIM attack with ε=0.01, α=0.1, iterations=7.

View Full Image

KAN_Mixer CTSRB BIM ε=0.1

Description: BIM attack with ε=0.1, α=0.1, iterations=7.

View Full Image

MLP_Mixer GTSRB BIM ε=0.1

Description: BIM attack with ε=0.1, α=0.1, iterations=7.

View Full Image

Model	Dataset	Training Type	Attack Type	Epsilon (ε)	Alpha (α)	Num Iter	Accuracy (Attack)	Success Rate	Degree of Change	Evaluation Samples
KAN_Mixer	BTSRD	Standard	BIM	0.01	0.01	7	0.68	0.06	0.55	200 Samples
MLP_Mixer	BTSRD	Standard	BIM	0.01	0.01	7	0.88	0.04		Full Test Set
KAN_Mixer	CTSRD	Standard	BIM	0.1	0.01	7	0.30	0.45	5.02	200 Samples
MLP_Mixer	CTSRD	Standard	BIM	0.1	0.01	7	0.44	0.48		Full Test Set
KAN_Mixer	GTSRD	Standard	BIM	1	0.01	7	0.00	0.74	28.01	200 Samples
MLP_Mixer	GTSRD	Standard	BIM	1	0.01	7	0.00	0.92		Full Test Set
KAN_Mixer	BTSRD	Adversarial	BIM	0.01	0.01	7	0.28	0.03	0.55	200 Samples
MLP_Mixer	BTSRD	Adversarial	BIM	0.01	0.01	7	0.42	0.03		Full Test Set
KAN_Mixer	CTSRD	Adversarial	BIM	0.1	0.01	7	0.03	0.29	5.04	200 Samples
MLP_Mixer	CTSRD	Adversarial	BIM	0.1	0.01	7	0.19	0.27		Full Test Set
KAN_Mixer	GTSRD	Adversarial	BIM	1	0.01	7	0.00	0.31	27.89	200 Samples
MLP_Mixer	GTSRD	Adversarial	BIM	1	0.01	7	0.03	0.43		Full Test Set

CW Attack Results on KAN-Mixer and MLP-Mixer Models

KAN_Mixer BTSRB CW Attack

Description: CW attack with ε=0.01, α=1000, iterations=1000.

View Full Image

MLP_Mixer BTSRB CW Attack

Description: CW attack with ε=0.01, α=1000, iterations=1000.

View Full Image

KAN_Mixer CTSRB CW Attack

Description: CW attack with ε=0.01, α=1000, iterations=1000.

View Full Image

MLP_Mixer CTSRB CW Attack

Description: CW attack with ε=0.01, α=1000, iterations=1000.

View Full Image

KAN_Mixer GTSRB CW Attack

Description: CW attack with ε=0.01, α=1000, iterations=1000.

View Full Image

MLP_Mixer GTSRB CW Attack

Description: CW attack with ε=0.01, α=1000, iterations=1000.

View Full Image

Model	Dataset	Training Type	Attack Type	Epsilon (ε)	Num Iter	Accuracy (Attack)	Success Rate	Degree of Change	Evaluation Samples
KAN_Mixer	BTSRD	Standard	CW	0.01	1000	0.40	0.35	16.87	200 Samples
MLP_Mixer	BTSRD	Standard	CW	0.01	1000	0.45	0.47		Full Test Set
KAN_Mixer	CTSRD	Standard	CW	0.01	1000	0.28	0.44	19.46	200 Samples
MLP_Mixer	CTSRD	Standard	CW	0.01	1000	0.36	0.54		Full Test Set
KAN_Mixer	GTSRD	Standard	CW	0.01	1000	0.27	0.70	16.95	200 Samples
MLP_Mixer	GTSRD	Standard	CW	0.01	1000	0.24	0.73		Full Test Set
KAN_Mixer	BTSRD	Adversarial	CW	0.01	1000	0.37	0.44	17.79	200 Samples
MLP_Mixer	BTSRD	Adversarial	CW	0.01	1000	0.51	0.42		Full Test Set
KAN_Mixer	CTSRD	Adversarial	CW	0.01	1000	0.45	0.28	14.82	200 Samples
MLP_Mixer	CTSRD	Adversarial	CW	0.01	1000	0.51	0.35		Full Test Set
KAN_Mixer	GTSRD	Adversarial	CW	0.01	1000	0.40	0.56	14.43	200 Samples
MLP_Mixer	GTSRD	Adversarial	CW	0.01	1000	0.31	0.66		Full Test Set

Model 3: Convolutional Neural Network (CNN)

Description of CNN Model

In this section, we investigate the effectiveness of KANs and CNN for traffic sign classification. We are implementing and comparing four different architectures: ConvNet-MLP, ConvNet-KAN, KANConv-MLP, and KANConv-KAN, based on the research by bodner and azam convolutionalkan. All models are trained using a batch size of 512 over 100 epochs, leveraging the Adam optimizer with a learning rate of 0.001 and employing Cross-Entropy Loss as the primary loss function.
The ConvNet-MLP model is the baseline architecture, combining standard convolutional layers with a fully connected MLP. It consists of four convolutional layers: two with 32 filters and a kernel size 5x5, followed by two with 64 filters and a kernel size 3x3. These layers are interspersed with ReLU activations and 2x2 max-pooling layers, leading to fully connected layers with 256 neurons for class output.
The ConvNet-KAN model builds on this by replacing the fully connected layers with a KAN linear layer, using a 10x10 grid and a spline order of 3 to model complex nonlinear relationships. This architecture retains the initial convolutional layers from the ConvNet-MLP model but introduces the KAN layer after flattening the feature maps to capture more sophisticated patterns in the data.
The KANConv-MLP model further explores the potential of KAN by incorporating it directly into the convolutional layers. It employs two KAN-based convolutional layers, each consisting of five independent 3x3 convolutions, followed by max-pooling. These KAN layers aim to enhance the model's feature extraction capabilities by leveraging the adaptive spline functions of KAN during convolution. The output of these KAN-based convolutions is then passed through fully connected layers, similar to those in the ConvNet-MLP model.
Finally, the KANConv-KAN model fully integrates KAN into the convolutional and fully connected layers, using KAN-based layers throughout the network. It applies two KAN convolutional layers, similar to those in KANConv-MLP, and follows them with a KAN linear layer for classification. This model is designed to fully leverage KAN's non-linear, adaptive properties to potentially achieve better performance in recognizing traffic signs, especially under adversarial conditions.

Dataset Class Distribution

View Full Image

How Resilient Are Kolmogorov-Arnold Networks in Classification Tasks? A Robustness Investigation

Authors: Ahmed Dawod Mohammed Ibrahum, Zhengyu Shang, Jang-Eui Hong

Affiliations: Software Intelligence Engineering Lab, Chungbuk National University

Visit Our Lab: https://selab.chungbuk.ac.kr/

Abstract

Model Architectures and Evaluation

Model 1: KAN

Description of KAN Model

Dataset Class Distribution

Attack Methods on KAN Model

FGSM Attack Results on KAN Model and BTSRB

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: PGD_WITH_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: PGD_WITH_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: PGD_WITH_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: RANDOMIZED_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: RANDOMIZED_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: RANDOMIZED_SMOOTHING Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: KAN Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: KAN Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: KAN Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

FGSM Attack Results on KAN Model and CTSRB

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

FGSM Attack Results on KAN Model and GTSRB

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: Randomized_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

FGSM Attack Results on MLP Model and BTSRB

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: PGD_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: Randomized_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: Randomized_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: Randomized_with_Smoothing Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: Standard Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

FGSM Attack Results on MLP Model and CTSRB

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1

Title: FGSM Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 1.0

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.01

Title: PGD Adversarial TRAINING AND ATTACK WITH fgsm Epsilon = 0.1
